Connector for extension eye
Remote control HB10RF / HB20IR
Operation of the system:
The HB21 IR transmitter is a simple up/down control with a button for the up
activation and a button for the down activation of 1 reference on the CBD.
The HB22 is a two-channel controller, for controlling two references on the CBD.
For activation of the control box point with the HB20 at the DP1V or the extension eye: Press the button up or down.
The operation range for the HB20 is approx. 6 m.

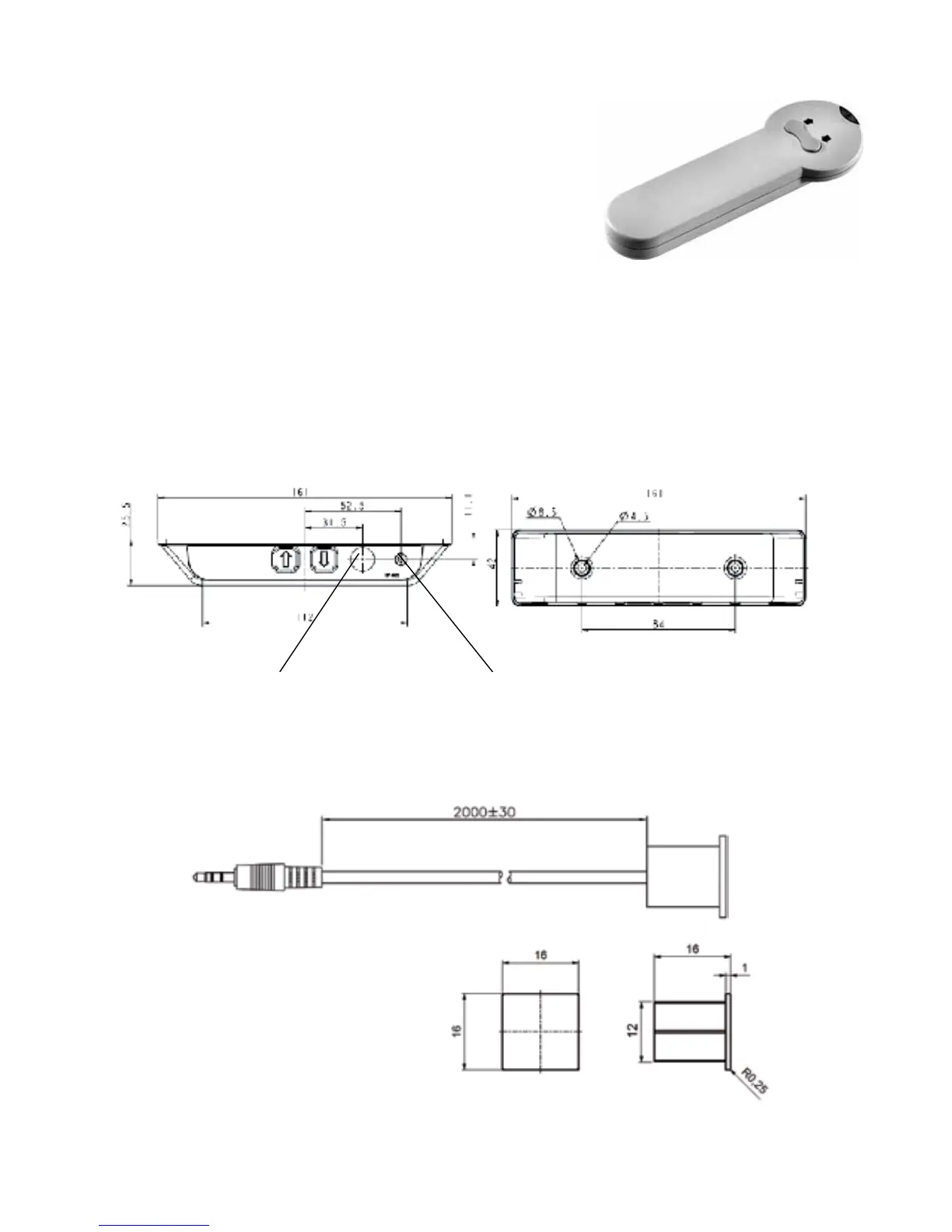

Drawings:
DP1V
IR extension eye article number 0964571
The IR extension eye is for mounting in a 12 mm hole. The eye has a 2000 mm cable with a mini Jack plug, which is to be
plugged into the DP1V.
