Description
The DP1C is equipped with display and memory and is compatible with CBD4 (Advanced, software 077402 ver. 1.66 or later).
The DP1 is only available as a 1-channel version for operation of the parallel channels up and down. The actual height of the
desk is shown in the display. The display is of the LED type with a yellow light and 10 mm high digits.
Normal operation:
To run the desk up or down, press the UP or DOWN button, and keep it pressed until the desk reaches the desired height. The
display will count up or down while running, and after stop it will continually show the current height of the desk.
Changing between cm and inches:
Keep the S button pressed for approx. 4 sec. and the reading will change from the current setting.
The default setting depends on the type chosen.
Store a memory position:
When pressing the “store” button, the display will flash “S” for 3 sec. Within the 3 sec. press memory button 1, 2 or 3. The
display will acknowledge by showing S1, S2 or S3 for 1 sec. To abort a store sequence, press the UP or DOWN button while
the “S” is flashing, or wait the 3 sec. until the display automatically returns to show the height of the desk.
Drive to a stored position:
Version with “GO-memory”
Press memory button 1, 2, or 3. The display will flash “GO1”, “GO2” or “GO3” for 3 sec. Within the 3 sec. press the UP or
DOWN button and keep it pressed until the desk stops in the stored position. Both the Up and the Down button will activate
memory drive. Although e.g. the memory position is higher than the actual height, it will drive upwards when you press the
Down button. While running to a memory position the display will show GO1, GO2 or GO3, and when it stops in the stored
position, the height of the desk will be shown. Releasing the UP or DOWN button will abort the memory drive. The display will
show the height of the desk.
Version with “standard memory”
Press memory button 1, 2, or 3 and the system will start driving to the wanted memory position. Keep the button pressed until
the position is reached. The display will show the actual height during the memory run.
Adjust the display to show the correct height:
It may be necessary to adjust the display due to different thicknesses of desktops etc, when the DP is delivered from the
factory. The DP will show 68 cm or 24.5 inches (default setting) height of the desk. At the same time press the “Store” button
and step UP or DOWN, until the display shows the correct height.
Adjusting the light intensity of the LED display
Possible light settings are: 0 = off, 25 = 25%, 50 = 50%, 75 = 75%, 100 = 100%.
Adjustment procedure
Press the “1” button and at the same time either “desk up” or “desk down” this will adjust the light intensity. Initial press will
show the current setting. Keep the “1” button pressed during the whole sequence while adjusting up or down. Keep a button
pressed for more than 800 msec then the button will auto repeat every 100 msec. Releasing all buttons stores the new setting.
Adjusting the light timeout
Possible light timeouts are: 0-15 sec and off
Adjustment procedure
Press the “3” button and at the same time either “desk up” or “desk down” - this will adjust the light timeout. Initial press

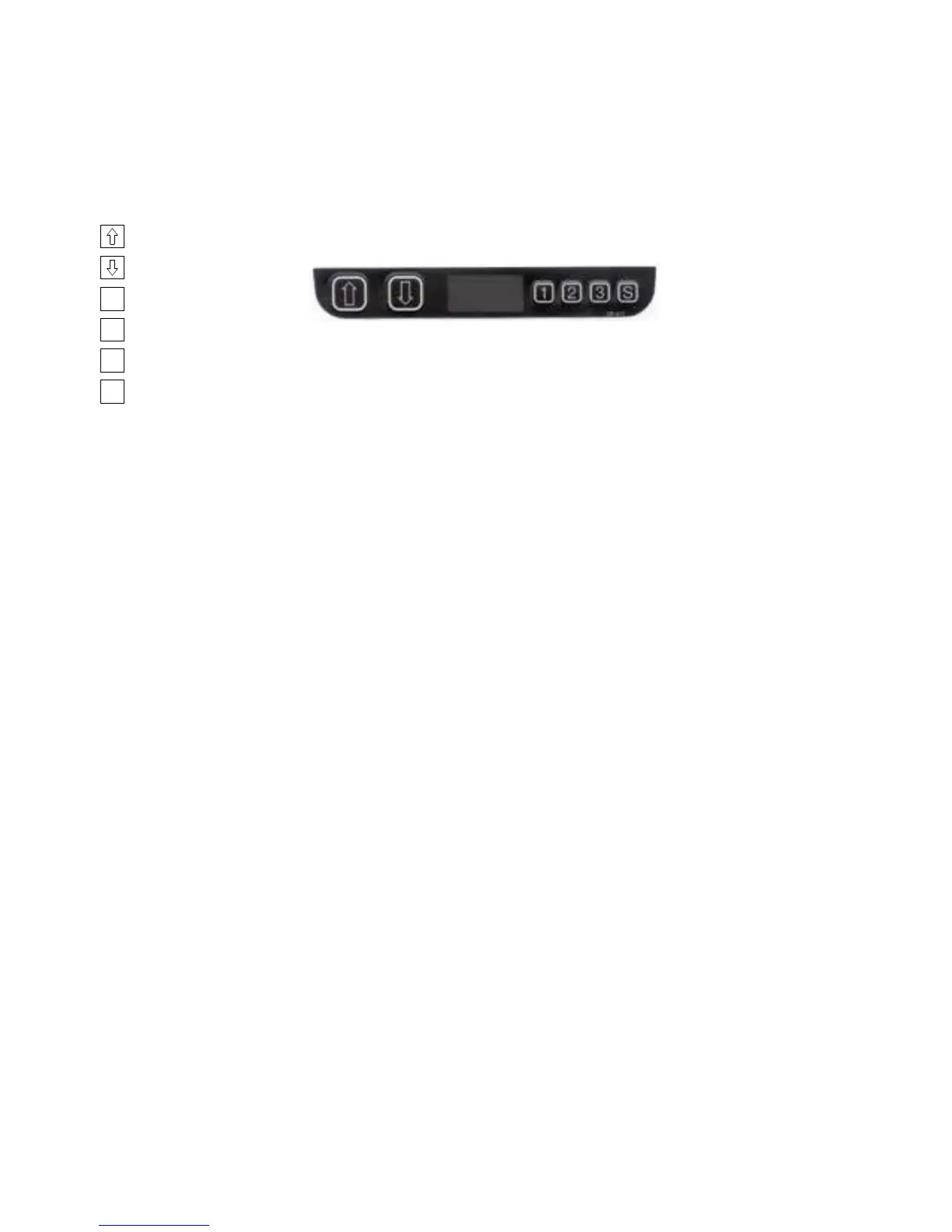

Operation of the DP1C
The DP1C cannot be used on the CBD4 with mains cut-off.
Desk up
Desk down
Store memory
Memory 1
Memory 2
Memory 3
S
1
2
3
