Frame:
Countersink:
Mounting of the DPT:

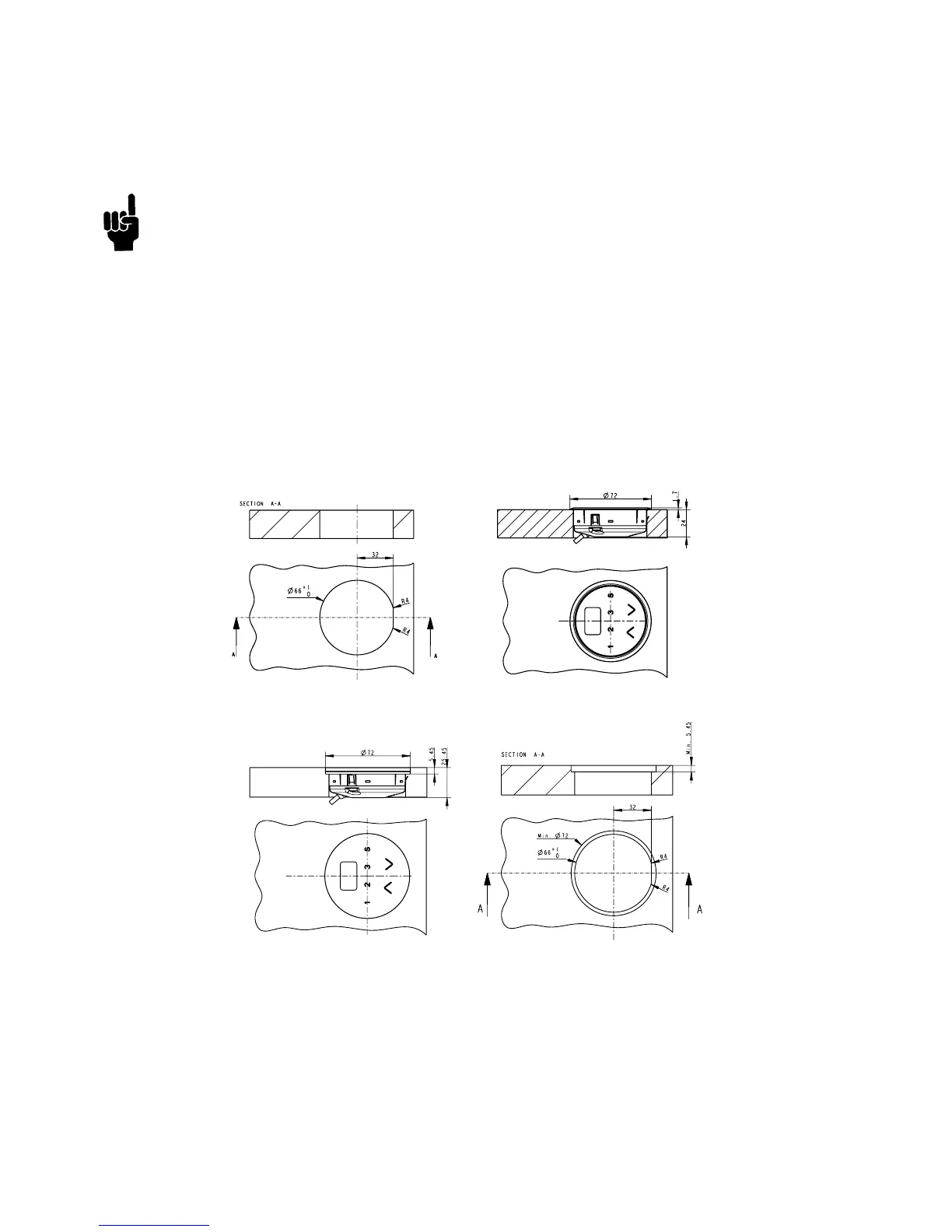

The hole in the tabletop has to be made according to the drawing. The DPT is mounted in the hole and the two screws on the
backside are fastened with a maximum torque of 40 Ncm. If you do not have a torque screw driver, please tighten gently and
not more until you can feel a slight resistance. Do not use electrical tool!
Please note:
1. Mounting the DPT into the tabletop should be done at the end-user, so the product will not be exposed to any
stress, which can destroy the product when transported.
2. For countersink versions the technician must ensure that the acrylic plate is not put under pressure, which will push
the acrylic plate out of place.
3. The screws which are delivered with the product must be used. If they have gone lost there should not be chosen
new screws which are longer than 12 mm, otherwise top and bottom will disconnect.
4. If the product has visible damages it should not be mounted.
5. The product is IP30; the customers can be sure that fluids / dust will not enter the product.
The front itself is closed by the acrylic plate’s adhesive foil.
6. Cable release is specified for max. 5 kg
7. Remember to remove the protection foil.
