Page 19 of 44

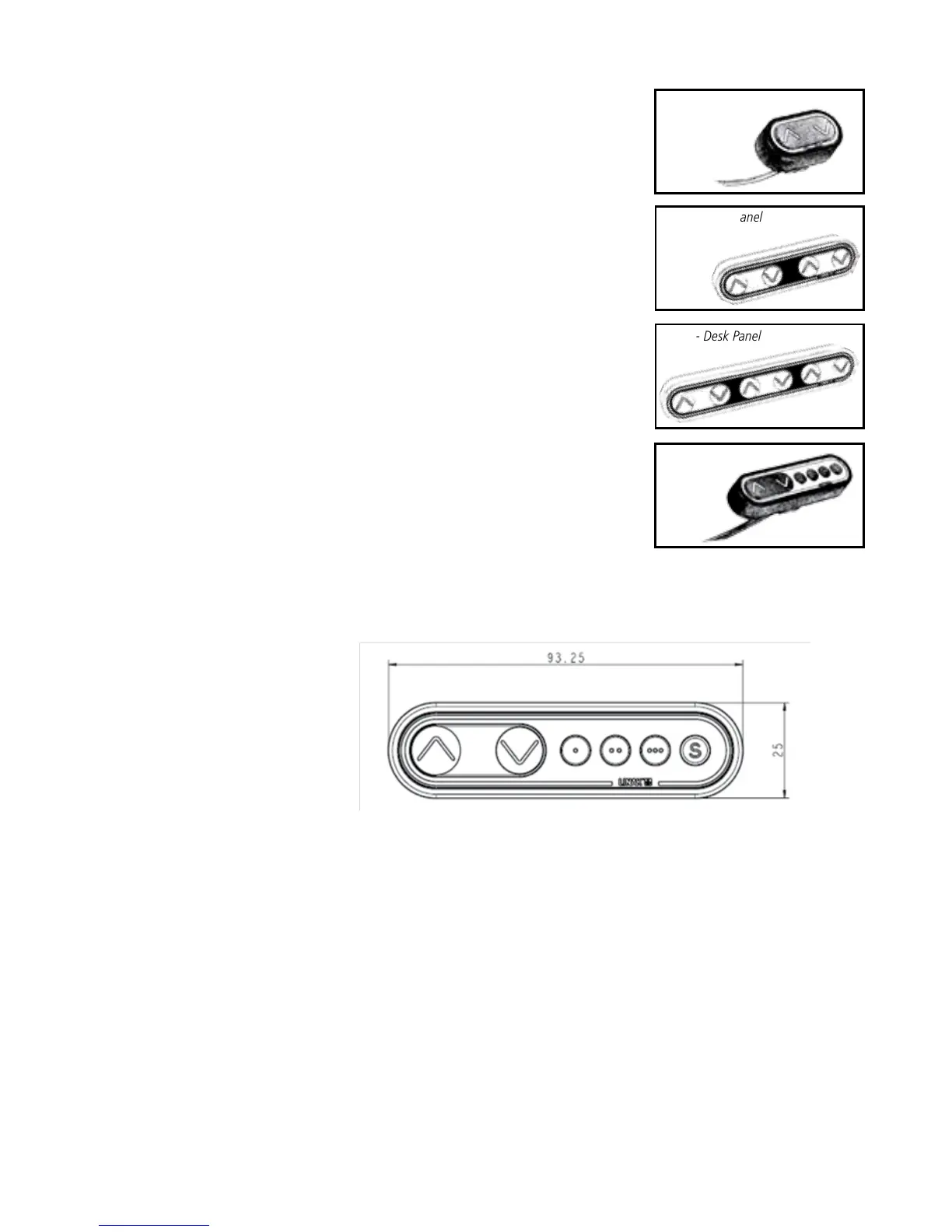

Operation of the DPF
= Parallel up
V = Parallel down
S = Store memory
• = Memory 1
•• = Memory 2
••• = Memory 3
Parallel drive ( V)
The arrow buttons start parallel drive. The function is only activated when holding the button down.
Store memory
• Press S – button
• Within two seconds press one of the small buttons with dots and the position will be stored at this button.
Memory drive (small buttons with dots)
Press one of the memory buttons and the system will start driving to the pre-programed memory position.
Keep the button pressed until the position is reached.
K-version:
Just activate either the up or down button for parallel drive and the system will
drive until the button is released again or the system reaches end position.
2K-version:
Just activate either the up or down button and the system will drive until the
button is released again or the system reaches end position. Each set of up/down
buttons refers to a reference. You can only drive one reference at a time. The desk
panel can have up to 2 references.
3K-version:
Just activate either the up or down button and the system will drive until the
button is released again or the system reaches end position. Each set of up/down
buttons refers to a reference. You can only drive one reference at a time. The desk
panel can have up to 3 references.
M-version:
The DPF is divided into parallel and memory drive. The two arrow buttons are
used for parallel drive and the last four buttons for memory drive/storing memory.
V
V
