Lubrigun Pumps No. 82050, No. 82054, No. 83513, No. 82050-E575, Ser. J

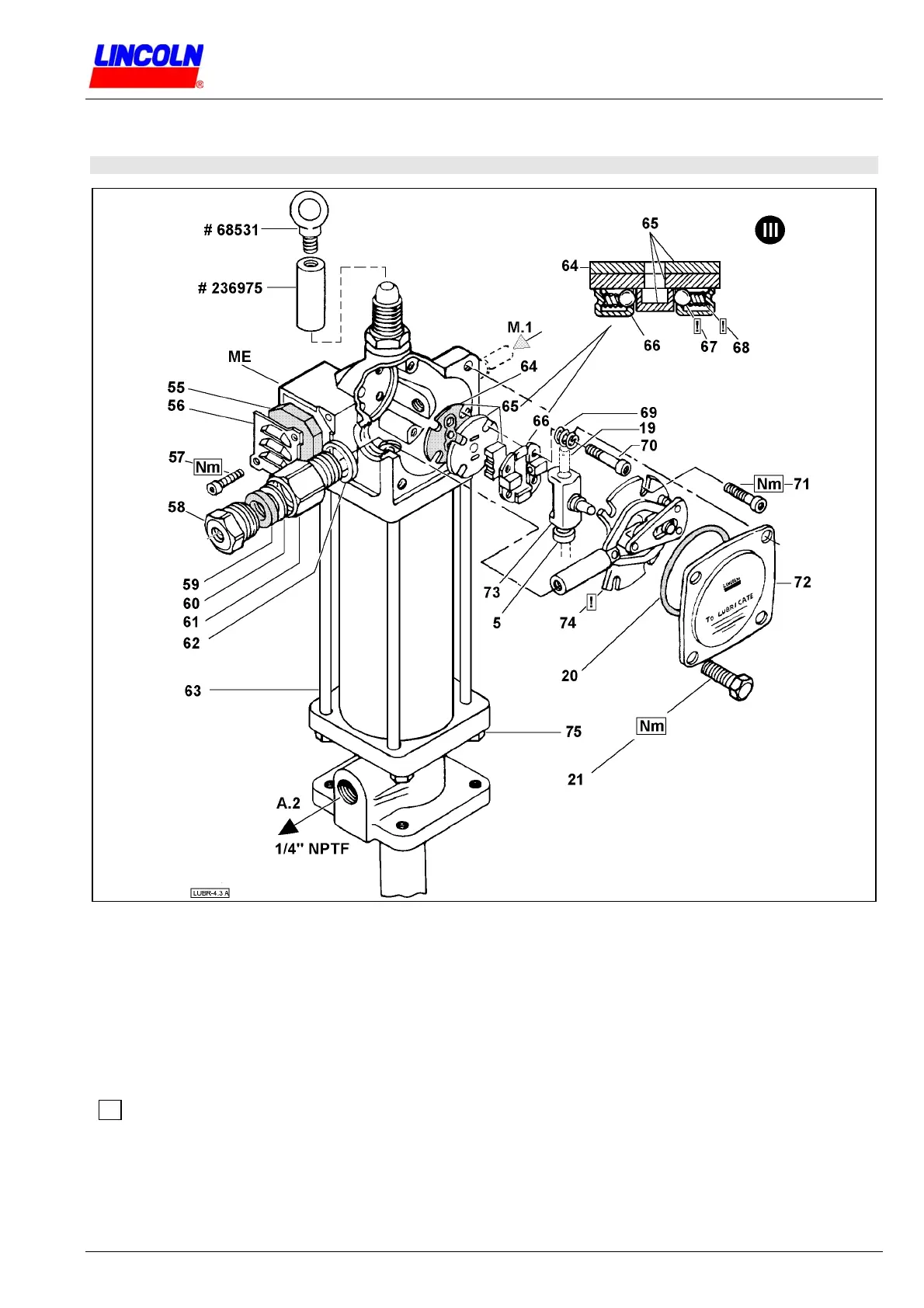

Service Parts Drawing 3 of 3
M.1
Air inlet Note
A.
2
Material outlet
Attention: Torque to max. 20,3 Nm
Eye bolt screw # 68531 & Adapter #236975
are optional accessories.
ME
Exhaust
Important:
Adhere to torque specifications on re-assembly:
Item 21
1/2“ hex. head torque 10,5-11 Nm
Item 57
5/32“ hex. socket torque 3,4-4,4 Nm
Item 71
5/32“ hex. socket torque 3,4-4,4 Nm
!
Lubricate Balls (67) & Springs (68) before assembly.
Lubricate Air Valve Mechanism on re-assembly
⇒ See sect. 6.
2 for illustration & instructions
