Lincoln 83513 - Service Parts Drawing

User Manual
Lubrigun Pumps 50:1
7.3A-38010-C05
Page 19 of 22
Subject to change
LINCOLN GmbH & Co. KG ∗ Postfach 1263 ∗ D-69183 Walldorf ∗ Fax + (49) 6227 33259 ∗ Tel + (49) 6227 330

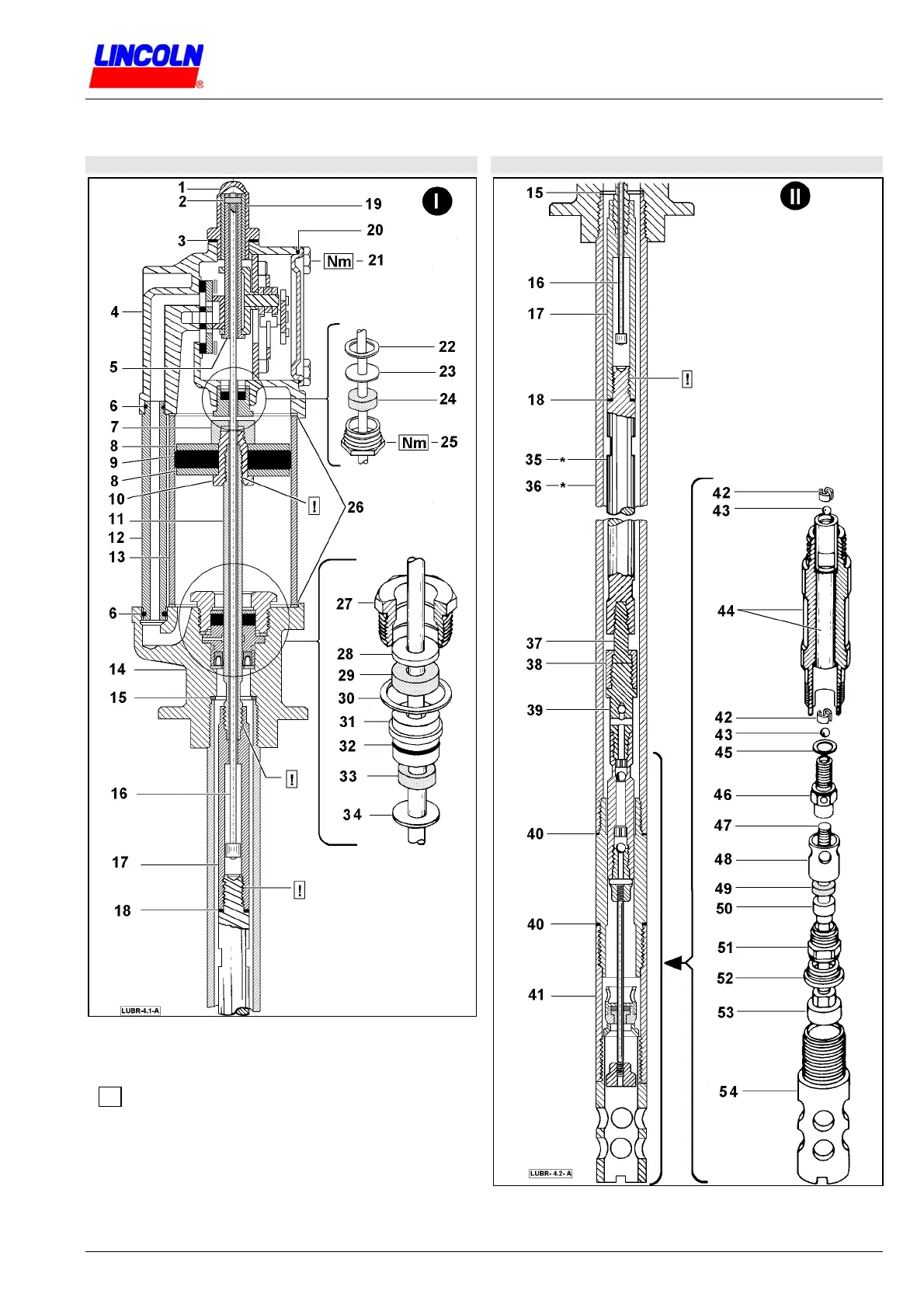

Service Parts Drawing 1 of 3
Important on re-assembly
Item 21
1/2“ hex. head torque to 10,5-11 Nm
Item 25
3/4“ hex. head torque to 13,6-20,3 Nm
!
Use Loctite #510 Gasket Eliminator on threads
of (11) and (35)
*
Item 35 and item 36 of pump models differ by
length only.
Service Parts Drawing 2 of 3
Lubrigun Pumps No. 82050, No. 82054, No. 83513, No. 82050-E575, Ser. J
