Lubrigun Pumps No. 82050, No. 82054, No. 83513, No. 82050-E575, Ser. J

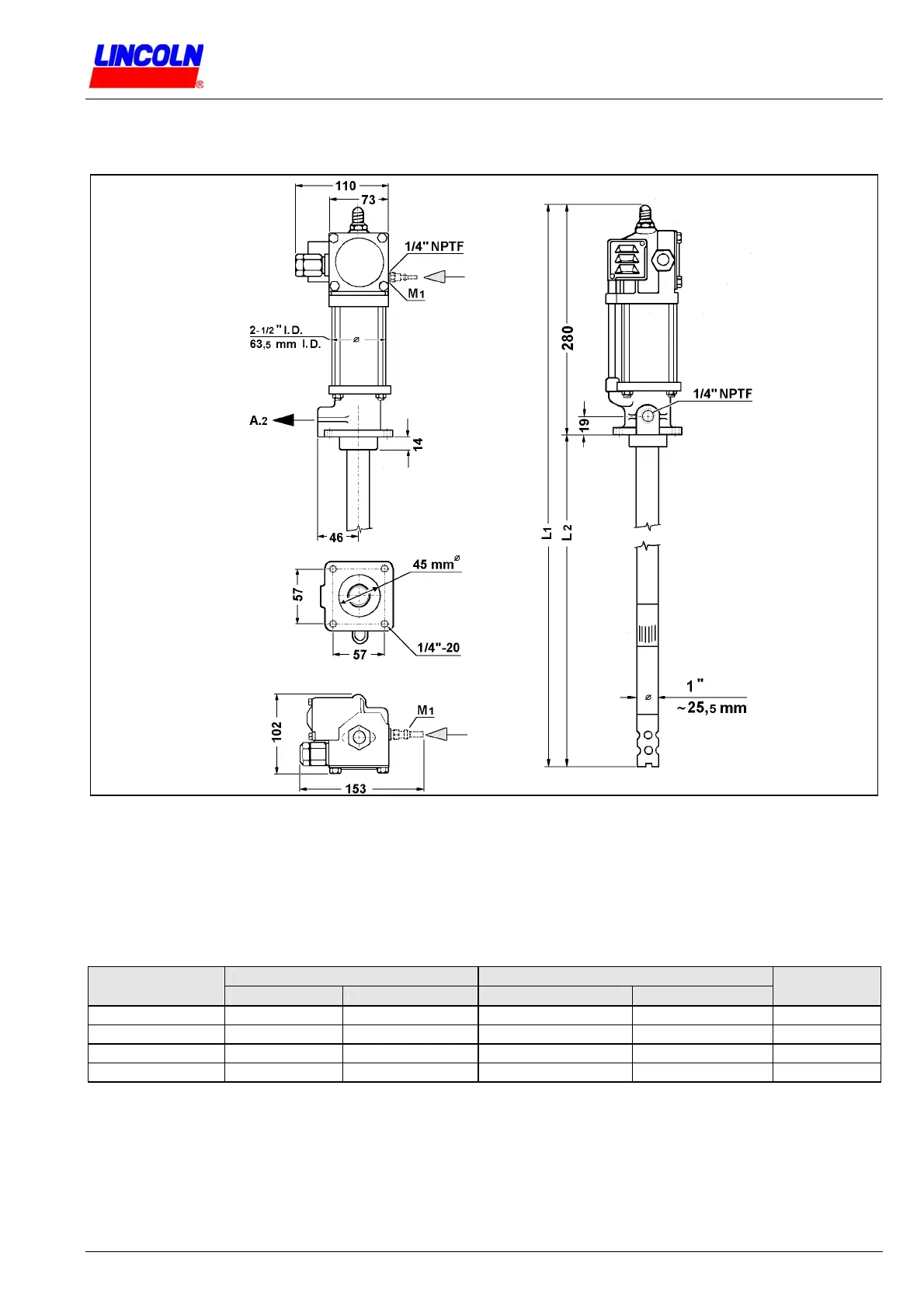

3.4 Dimensions
Note: The view mid, left illustrates the threaded mounting holes of the pump for fastening pump directly on top of
a drum cover by four screws no. 50060.
Optional: Mounting kit no. 12643-E059 available for fastening pump by clamping the pump tube.
It permits adjustable dip length of the tube. Length L
2 reduced by ~ 59 mm when using the mtg. kit.
M.
1
Air inlet: ¼“ NPTF female connection at air valve casting
Optional: Coupler nipple No. 11659 for use with Air coupler No. 815
A.
2
Material o utlet: ¼“ NPTF female connection at pump outlet body
Pump Dimensions Connection
Model No. L1 L2 Air inlet Material outlet Weight
82050 975 mm 695 mm ¼“ NPTF female ¼“ NPTF female 6,8 kg
82054 1142 mm 862 mm ¼“ NPTF female ¼“ NPTF female 7,7 kg
83513 760 mm 480 mm ¼“ NPTF female ¼“ NPTF female 5,9 kg
82050-E575 855 mm 575 mm ¼“ NPTF female ¼“ NPTF female 6,3 kg
