Form 403760 Page Number - 4

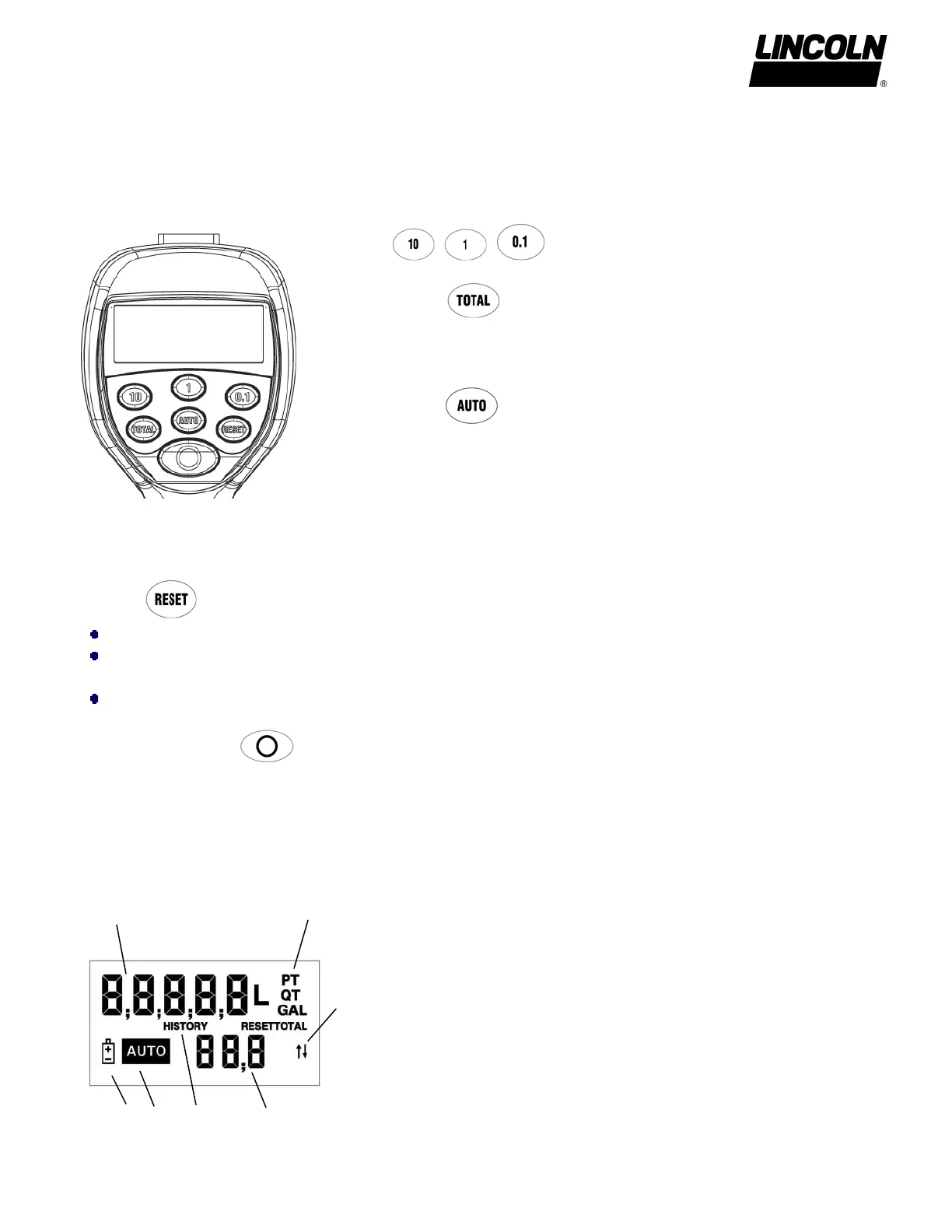

METER BUTTONS
Used to enter the batch quantity to be dispensed.
Total
Used to display the accumulated total of fluid dispensed as
well as the re-settable total during Auto Batch and Manual
Mode.
Auto
Used to enter and exit the Manual or Auto Batch mode.
Reset
Used in the Manual Mode to clear the dispensed quantity.
Used in Auto Batch Mode to clear the dispensed quantity and reset the meter for the next
batch.
Used to reset the resettable total dispensed while pressing the TOTAL button.
Shut-Off or Stop
Used to stop the flow through an Emergency Override.
Meter Display
1. Displays re-settable total, accumulated
total, and Scale Factor
2. Displays Unit of Measure
3. Arrows - Not Used On This Version
4. Preset Batch quantity
5. History Icon – Not Used On This Version
6. AUTO is an indicator of the meter being in
Auto Batch mode
7. Low Battery icon
LCD Dis
la
7
6
4
1
2
3
5
LCD DISPLAY
