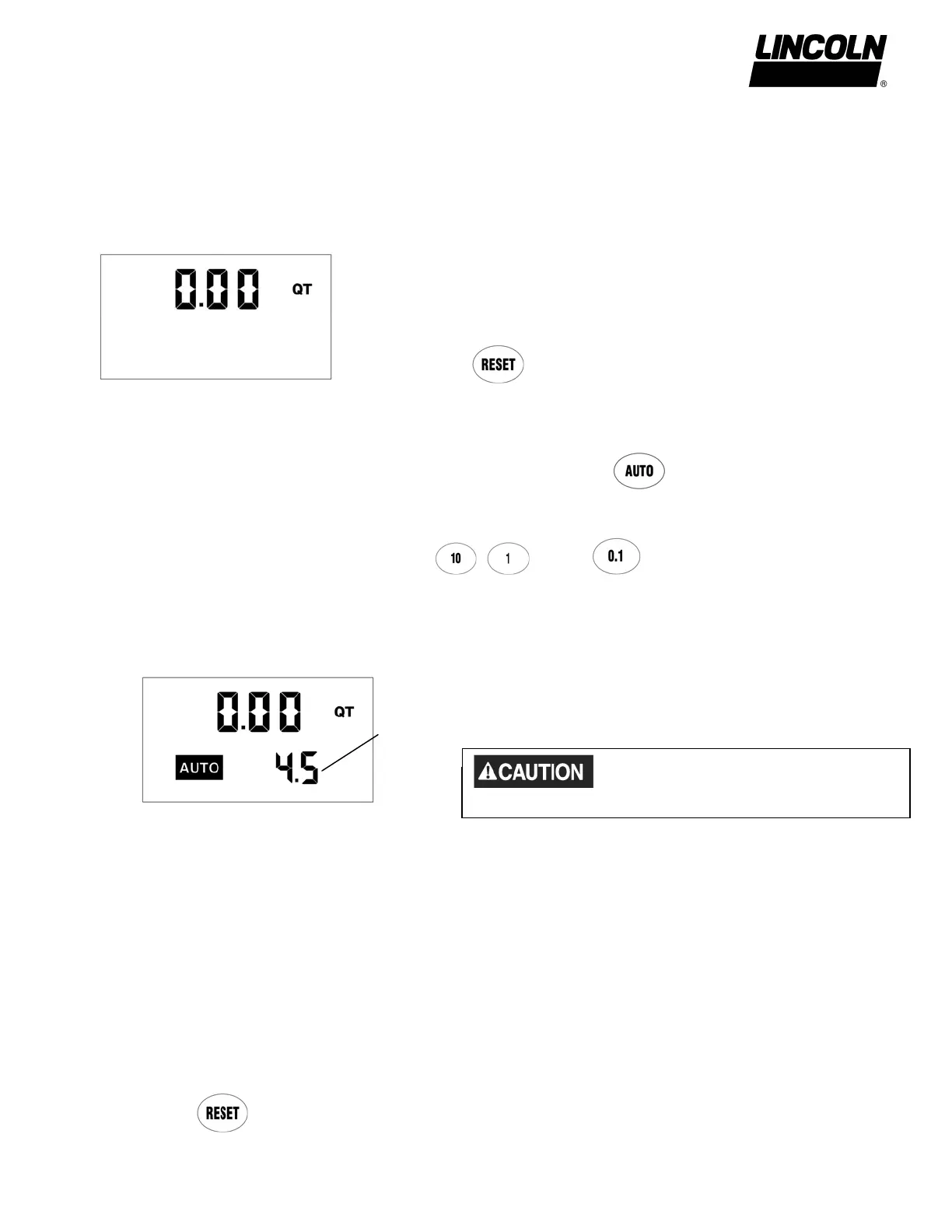

METER OPERATION
NOTE: The keypad Auto button is used to toggle between Manual Mode and Auto Batch Mode.
Manual Mode
In the Manual Mode the meter operates as a free flow dispensing handle.
1. Pull the trigger to begin the flow.
2. The display shows the amount of fluid dispensed.
3. When the desired amount of fluid has been dispensed,
release the trigger to stop the flow.
4. Press the button once to reset the counter display to
zero.
Auto Batch Mode
To enter the Auto Batch Mode from the Manual Mode press the button. When in the Auto
Batch Mode the AUTO icon displays and the batch quantity shows in the lower, right hand side of
the LCD display.
1. Change the batch size by pressing the , and/or buttons.
a) Press the 10 button to increase the batch amount in increments of 10 units.
b) Press the 1 button to increase the batch amount in increments of 1 unit.
c) Press the 0.1 button to increase the batch amount in increments of 0.1 units.
2. Pull the trigger to begin the flow.
• The solenoid valve automatically locks the
dispensing valve in the full open position.
A
u
t
Auto Batch Mode
3. Release the trigger, allowing it to fall back.
4. The flow automatically shuts off after the batch quantity has dispensed.
5. After the batch quantity has been dispensed the meter is a free flow-dispensing handle until
the reset button is depressed.
• To top off the fluid, pull the trigger to begin the flow and release it when the desired amount
has been pumped.
NOTE: In case of an emergency or to interrupt a batch, the meter is equipped with an Emergency
Override. (See Emergency Override)
6. Press the button when finished. The display resets and the meter is now ready for the
next batch to be dispensed.
The meter always locks in the maximum open position.
Manual Mode
Batch
Size
