ttach the Nozzle
Apply Meter to Hose
Close the drain valve before starting this procedure.

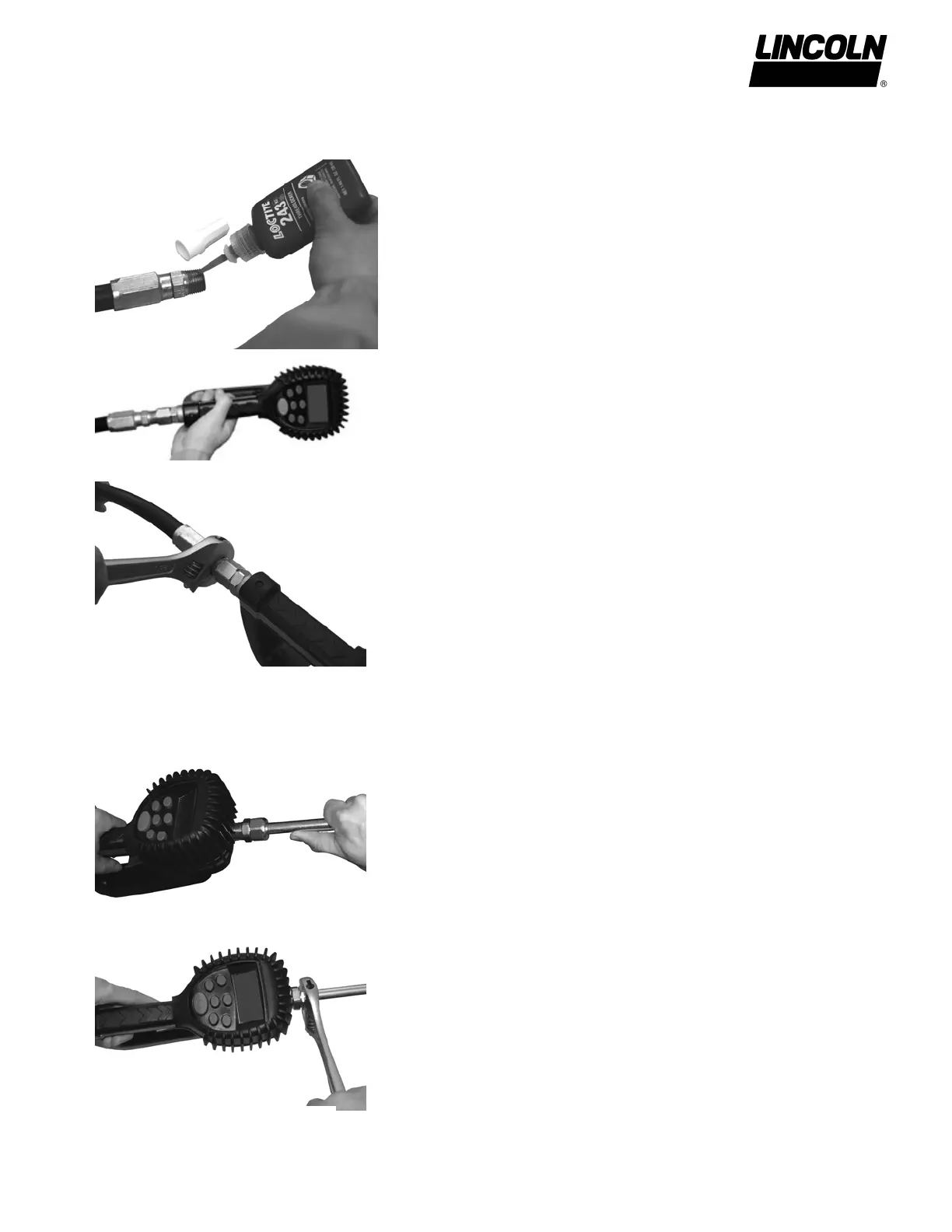

1. Attach swivel to meter. Apply thread sealant to the male
end of the hose. Recommended sealant is Loctite® 243.
2. Insert the metal end of the hose into the swivel. Tighten
completely with an open ended, adjustable, wrench.
NOTE: The threaded end of the meter always has female threads.
The metal end of the hose must have male threads.
Apply thread sealant, Loctite® 243 or equivalent, to the male end.
The inlet and outlet swivel connections are either 1/2" NPT or 1/2"
BSPP, depending on meter model.
Apply Nozzle to Meter
1. On the opposite end, apply sealant to the end of the
nozzle. Recommended sealant is Loctite® 243.
2. Thread the nozzle onto the meter. Screw it in tightly with
an open ended, adjustable, wrench.
3. Open all dispense position shut-off valves. Start the
pump to pressurize the system.
4. Before use, to ensure accuracy, purge all air from the
fluid lines and dispense valve(s).
A
ttach the hose
