Two temperature measuring pliers can be connected at the
same time.
• Insert the plug of the temperature measuring pliers into the
jacks 11 and 12 (Fig. 1) of the PC 410.
The temperature value measured by the meter connected
to jack 11 will be indicated in the display as T
1
and the one
measured by the meter connected to jack 12 will be shown
as T
2
.

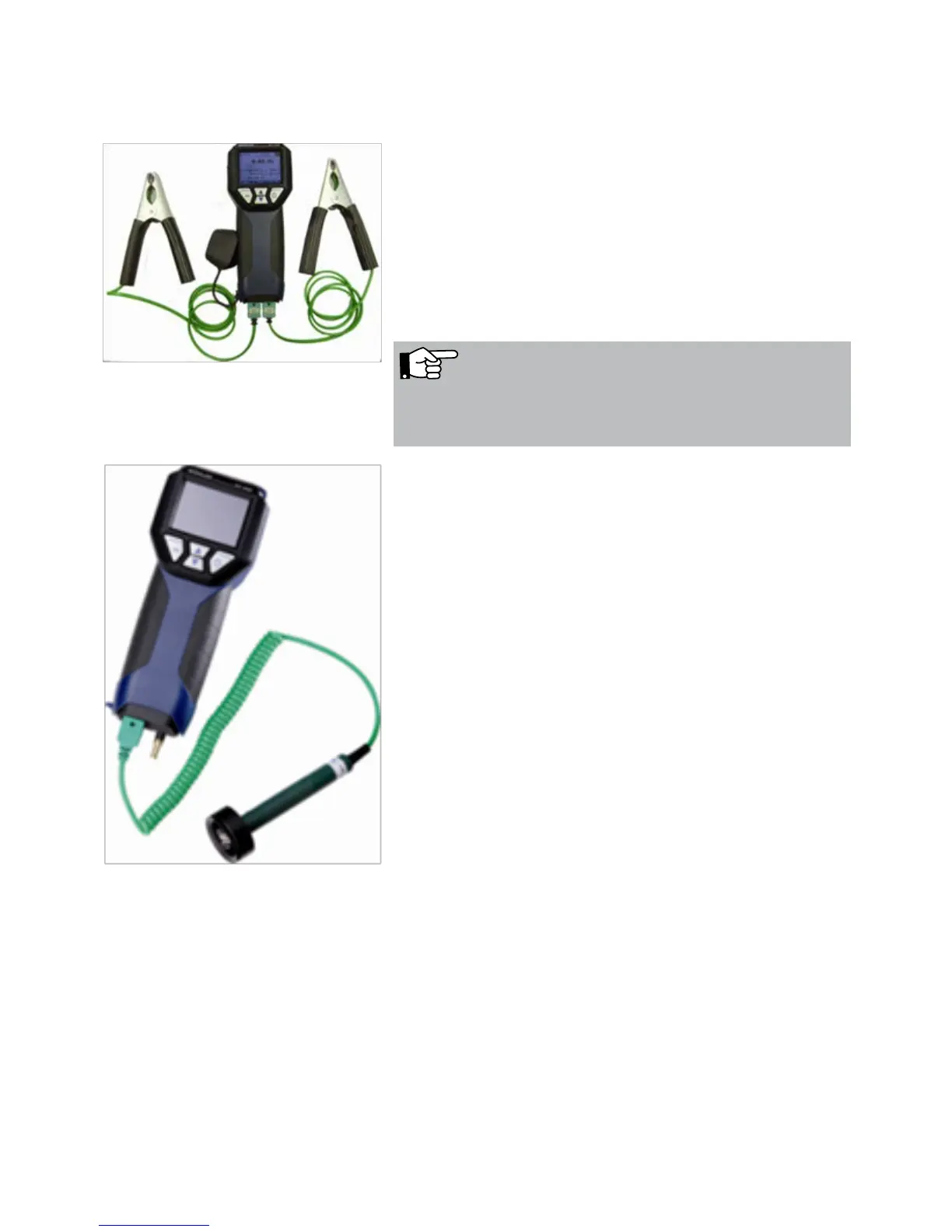

Fig. 4: Connecting temperature measuring
pliers
Connection of the Special Wall Temperature Probe to
measure the heat transmission coefficient (See chapter 6.9)
Two Special Wall Temperature Probes can be connected at
the same time.
• Insert the plug of the temperature measuring pliers into the
jacks 11 and 12 (Fig. 1) of the PC 410.
Fig. 5: Connection of the Special Wall Temperature
Probe for measuring the heat transmission coefficient.
NOTE!
Any thermocouple type K may be connected to the jacks 11
and 12.
