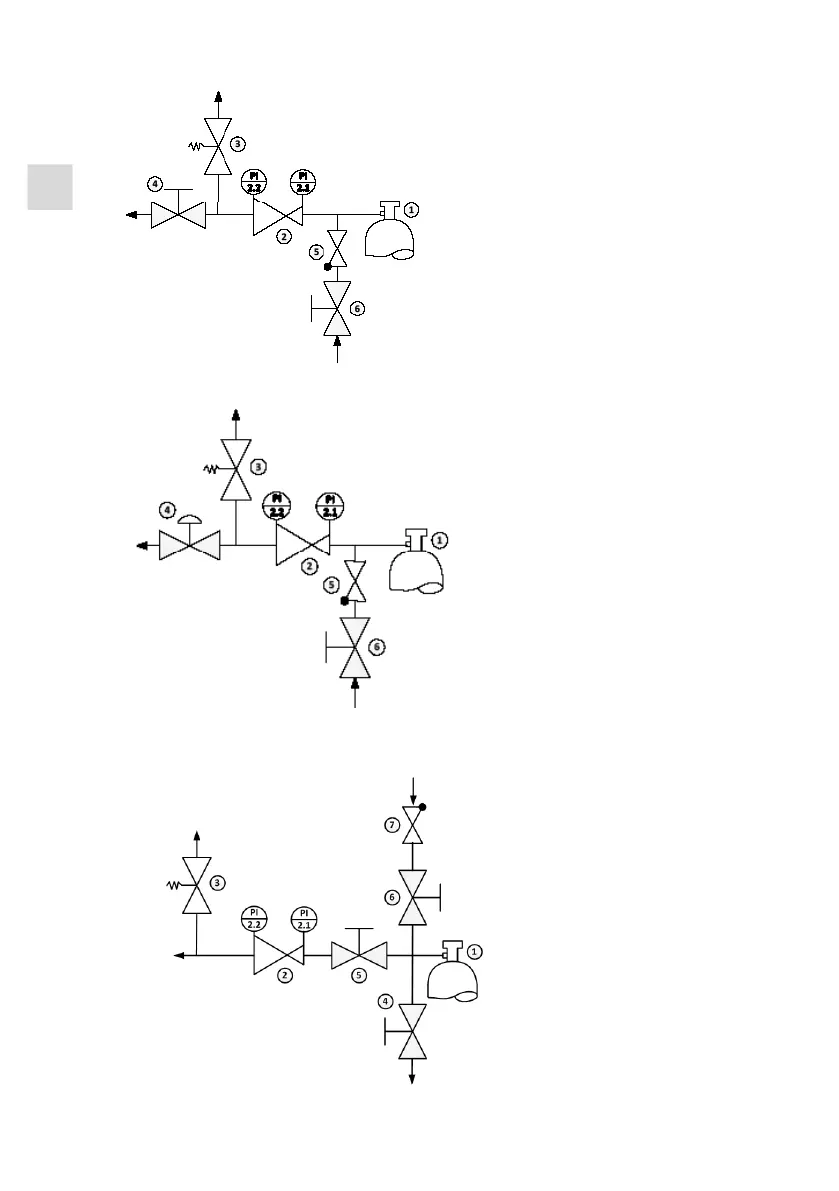

C200/1 TPA
11 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – SHUT-OFF VALVE
5 – CHECK VALVE
6 – INERT GAS PURGE VALVE
C200/1 TPB
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – REGULATING VALVE
5 – CHECK VALVE
6 – INERT GAS PURGE VALVE
C200/1 EP
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – EXTERNAL PURGE VALVE OUTLET
5 – PROCES INLET SHUT-OFF VALVE
6 – EXTERNAL PURGE VALVE INLET
7 – EXTERNAL PURGE CHECK VALVE
