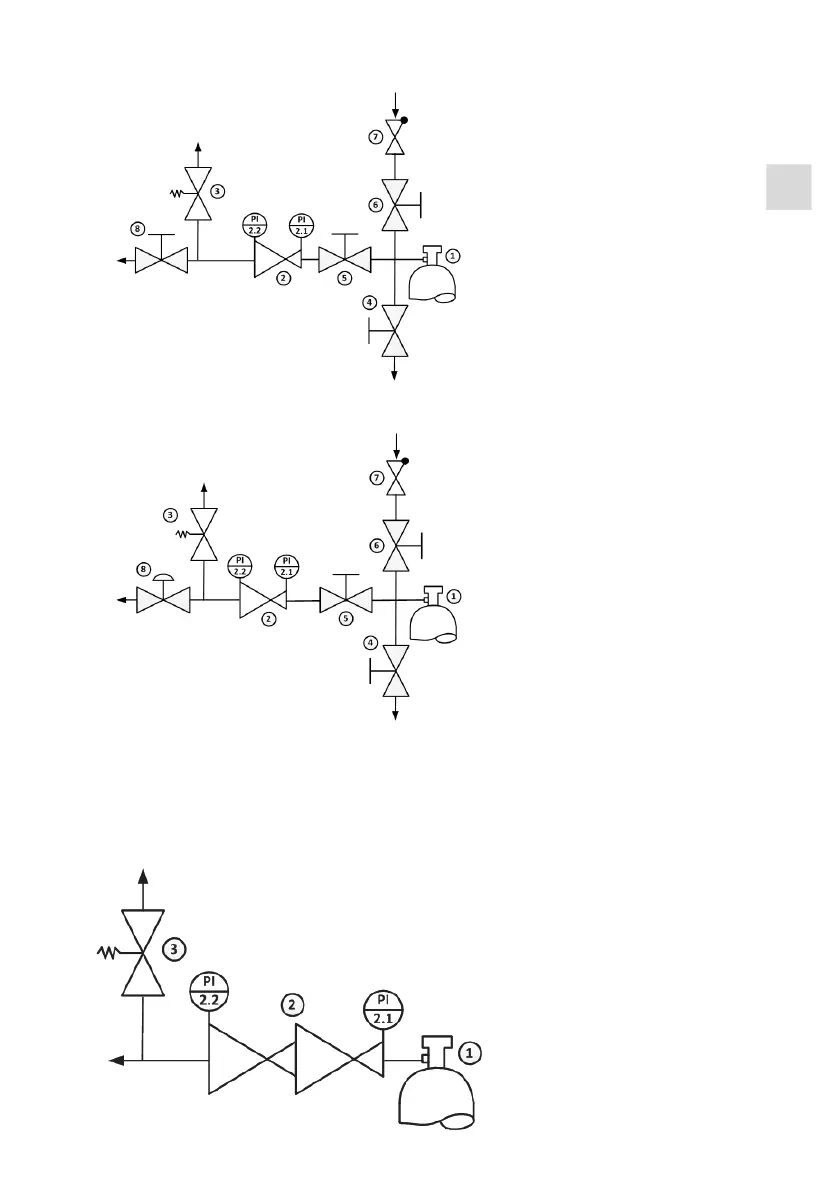

C200/1 EPA
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – EXTERNAL PURGE VALVE OUTLET
5 – PROCES INLET SHUT-OFF VALVE
6 – EXTERNAL PURGE VALVE INLET
7 – EXTERNAL PURGE CHECK VALVE
8 – SHUT OFF VALVE
C200/1 EPB
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – EXTERNAL PURGE VALVE OUTLET
5 – PROCES INLET SHUT-OFF VALVE
6 – EXTERNAL PURGE VALVE INLET
7 – EXTERNAL PURGE CHECK VALVE
8 – REGULATING VALVE
3.2. FLOW SCHEME DUAL STAGE VERSIONS
C300/2 | C200/2
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
To Next Page
