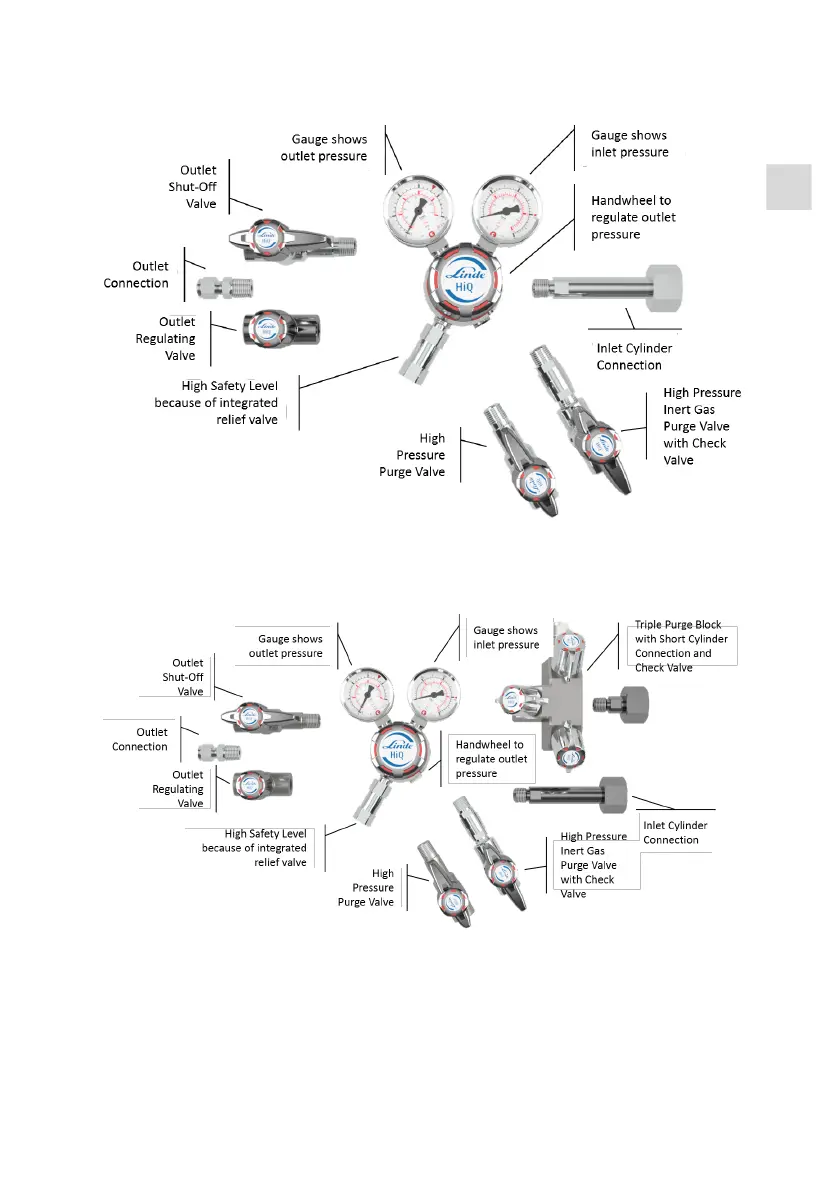

4. SETUP AND FUNCTION
4.1. BRASS CHROME PLATED VERSION
4.2. STAINLESS STEEL VERSION
4.3. BRIEF DESCRIPTION
The operation of cylinder regulator works manual with the handwheel. The inlet and outlet pressure are
displayed on the inlet and outlet pressure gauge. Dierent components could be additional for handling:
• Shut-o valve at outlet to shut o outlet pressure.
• Regulating valve at outlet to regulate outlet pressure.
• Purge valve at inlet to purge high pressure site and/ or to depressurize before cylinder change.
• Inert Gas Purge Valve with Check Valve at the inlet
• Triple purge block at inlet, to clean from atmospheric air or purge with purge gas before cylinder change.
