Linde C200 - C200;2 Epb; Dimension Sheet; Single Stage; Version a | Single Stage

19/76
EN
C200/2 EPB
1 – CYLINDER CONNECTION
2 – PURGE INLET VALVE
3 – PURGE OUTLET VALVE
4 – INLET SHUT OFF VALVE
5 – CYLINDER PRESSURE REGULATOR
6 – INLET PRESSURE GAUGE
7 – OUTLET PRESSURE GAUGE
8 – RELIEF VALVE
9 – OUTLET REGULATING VALVE
10 – CHECK VALVE
11 – PROCESS GAS OUTLET
12 – PURGE INLET
13 – PURGE OUTLET

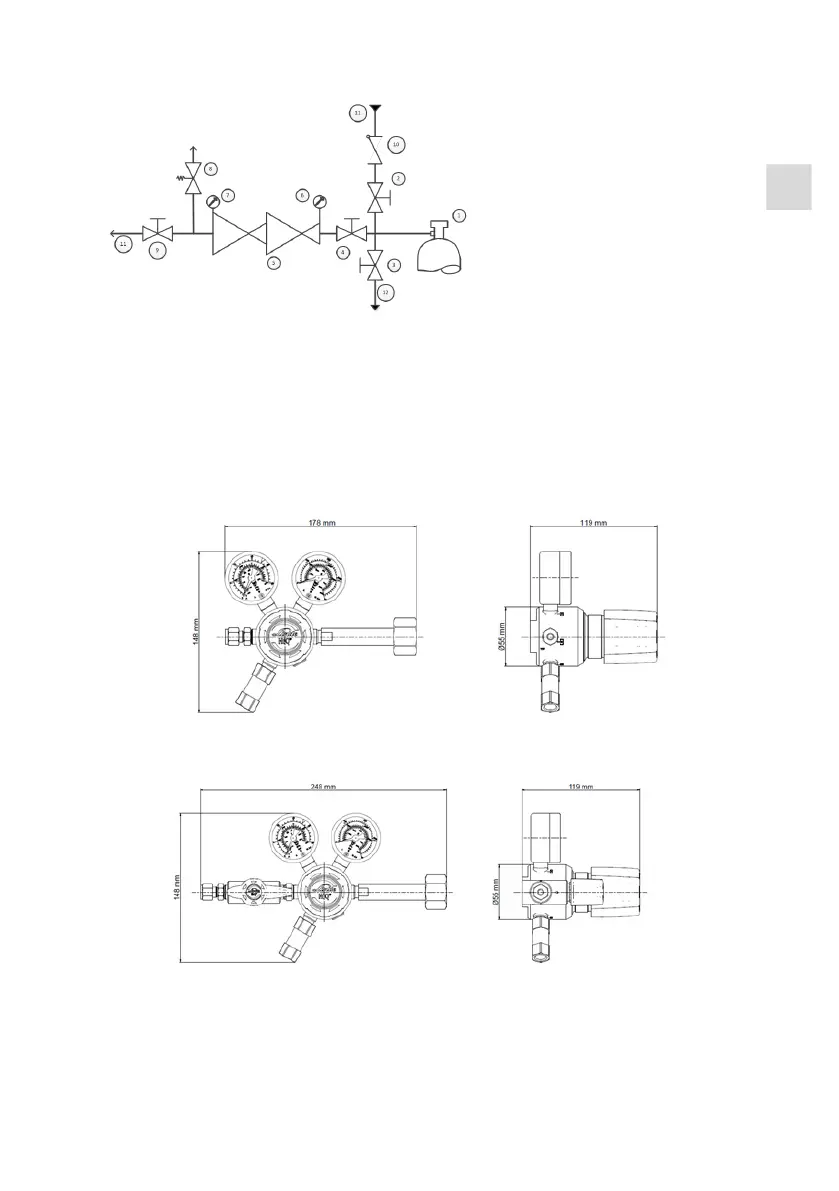

3.3. DIMENSION SHEET
SINGLE STAGE
VERSION A | SINGLE STAGE
