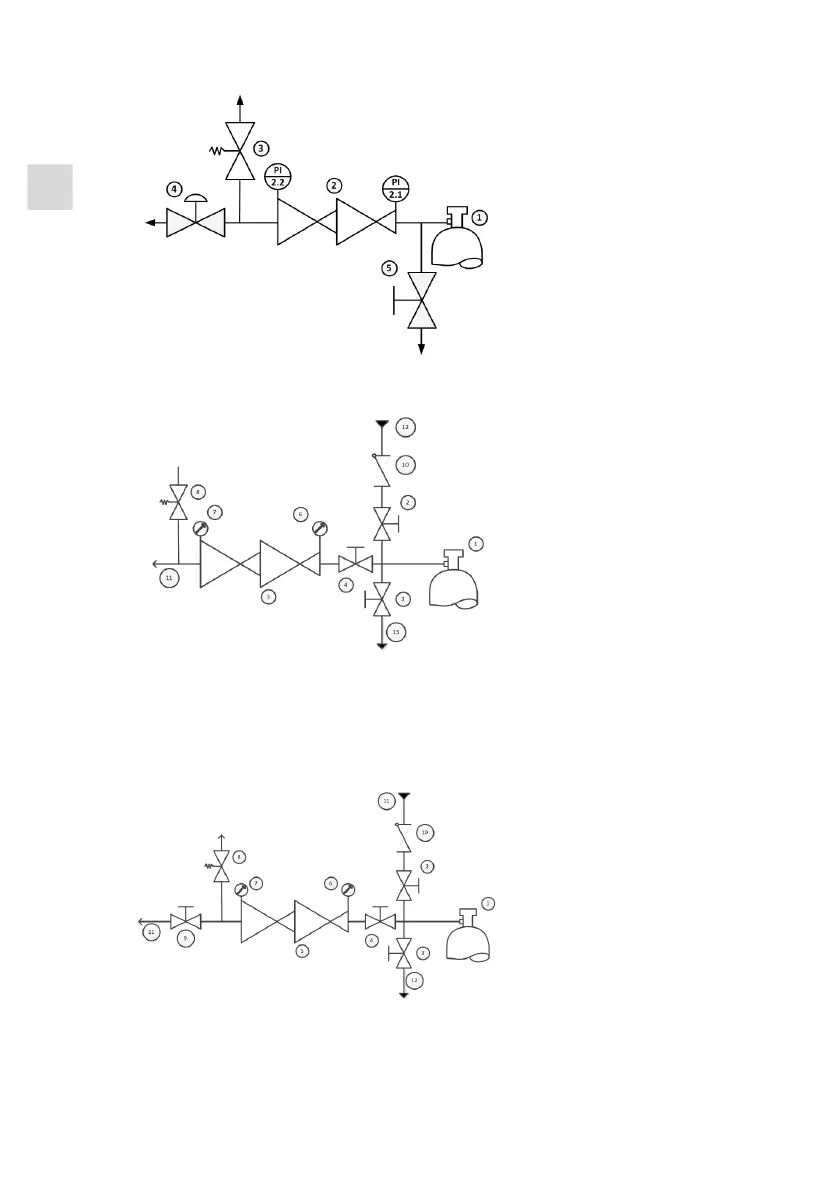

C200/2 TPB
1 – GAS CYLINDER
2 – PRESSURE REGULATOR
3 – RELIEF VALVE
4 – REGULATING VALVE
5 – PURGE VALVE
C200/2 EP
1 – CYLINDER CONNECTION
2 – PURGE INLET VALVE
3 – PURGE OUTLET VALVE
4 – UPSTREAM SHUT OFF VALVE
5 – CYLINDER PRESSURE REGULATOR
6 – UPSTREAM PRESSURE GAUGE
7 – DOWNSTREAM PRESSURE GAUGE
8 – RELIEF VALVE
9 – CHECK VALVE
10 – PROCESS GAS OUTLET
11 – PURGE INLET
12 – PURGE OUTLET
C200/2 EPA
1 – CYLINDER CONNECTION
2 – PURGE INLET VALVE
3 – PURGE OUTLET VALVE
4 – UPSTREAM SHUT OFF VALVE
5 – CYLINDER PRESSURE REGULATOR
6 – INLET PRESSURE GAUGE
7 – OUTLET PRESSURE GAUGE
8 – RELIEF VALVE
9 – OUTLET SHUT OFF VALVE
10 – CHECK VALVE
11 – PROCESS GAS OUTLET
12 – PURGE INLET
13 – PURGE OUTLET
