5 Servicing
Inspection and maintenance every 3000 operating hours or every 2 years
Wheel gear oil change (with wheels
detached)
ENVIRONMENT NOTE
Take note of information about working mate-
rials.
¾ Warm up wheel gear.

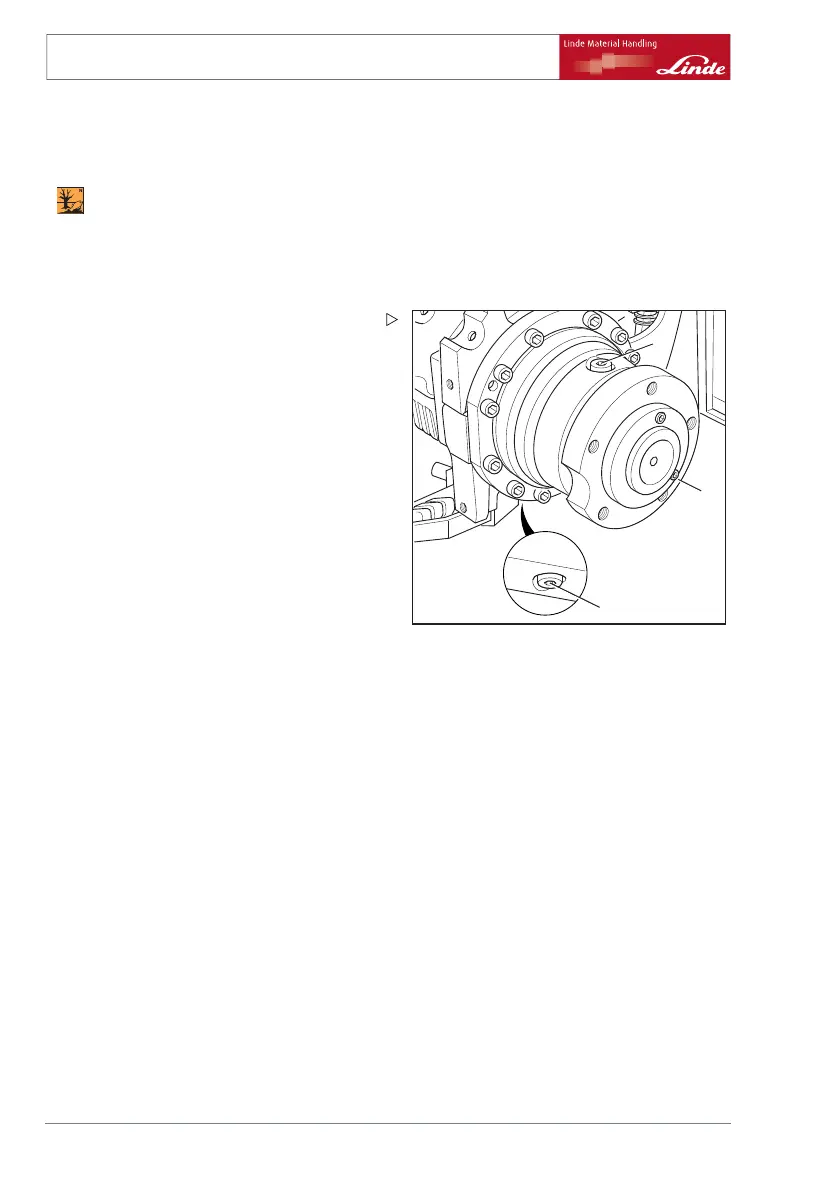

e3861305
4
1
3
¾ Stop the forklift truck so that the checking
screw (1) is at the "5 o’clock" position .
¾ Raise the forklift truck with t
he jack on the
right / left and secure.
¾ Remove drive wheel.
¾ Place a collection vessel under the drain
plug (3).
¾ Unscrew the drain plug (3), fil
ling screw (4)
and checking screw (1) and allo
wallthe
transmission oil to drain off .
¾ Clean the area around the checking screw
(1) , drain plug (3) and filling screw (4).
¾ Clean the magnetic plug of the drain
plug (3) .
¾ Screw the drain plug (3) securel
y back in.
Tightening torque 20 Nm
¾ Addapprox.250cm
3
oil per wheel gear to
the filling screw hole until oil escapes from
the screwhole of the checking screw (1).
¾ Screw the checking screw (1) and f
illing
screw (4) securely back in.
Tightening torque filling screw (4) 70 Nm
Tightening torque checking screw (1) 20 Nm
¾ Repeat on 2nd wheel.
¾ Reattach wheels and lower forklift truck
again.
130 Operating Instructions – 386 807 1001 EN – 03/2006
