Linear Access AM/II - Access out Connections

ACCESS OUT CONNECTIONS
Radio control can be added easily to Sentex Infinity and other
systems. The AM/II can output the Sentex30, SecuraKey31,
and Wiegand26 data formats through its ACCESS OUT
terminals.

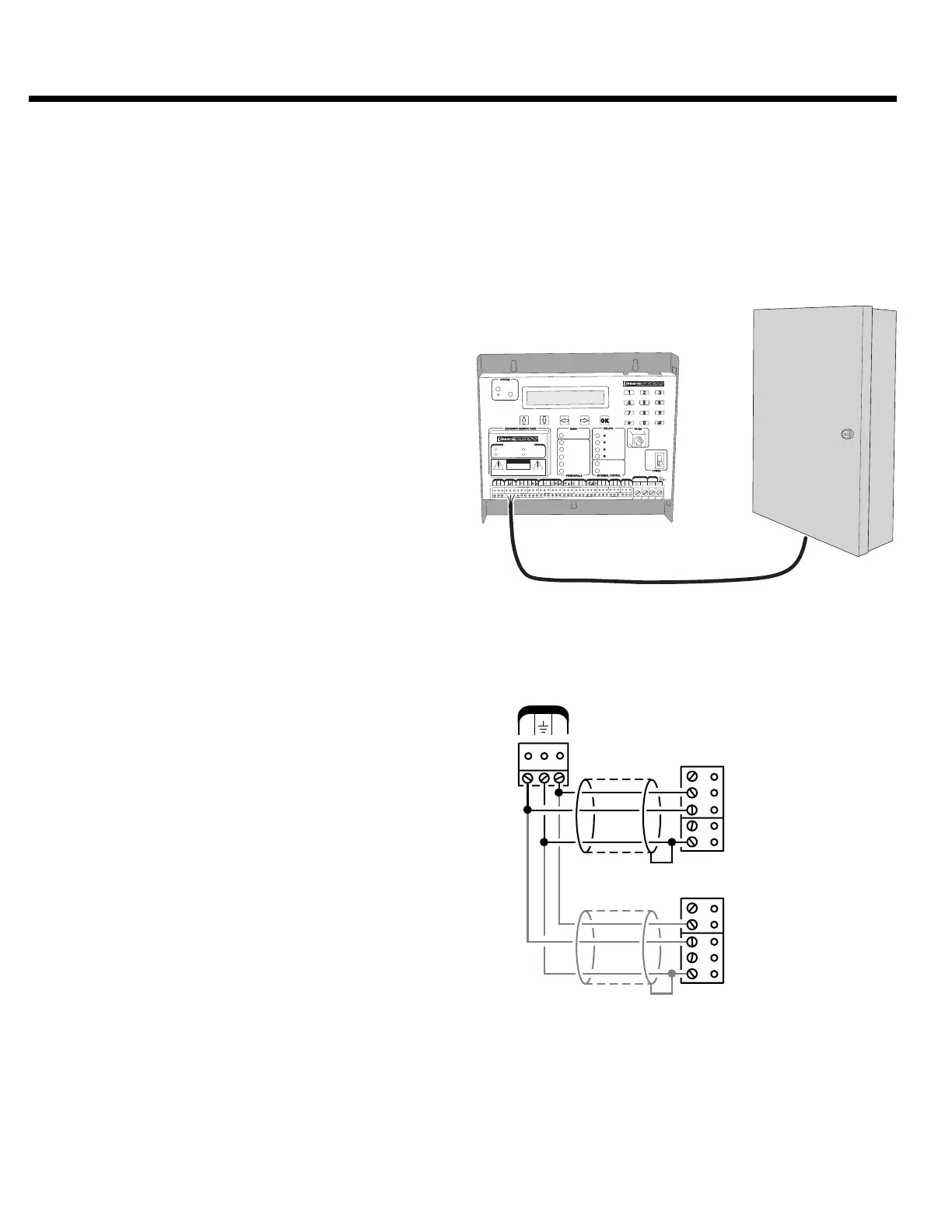

When connected, the AM/II output simulates a card reader
input to the external access control panel. A few programming
options must be set in the AM/II to configure the output to match
the access control panel.
☞
NOTE: Connection to an external access control panel is
optional.
O 1
ACCESS OUT
TB4
TB6
LED A
A RDR 1
A RDR 0
+5 VDC
GND
LED B
B RDR 1
B RDR 0
+5 VDC
GND
SENTEX
INFINITY
SYSTEM
3-CONDUCTOR
SHIELDED
CABLE
OPTIONAL
2-DEVICE
HOOKUP
USE BELDEN TYPE 9925 CABLE
OR EQUIVALENT
MAXIMUM WIRE RUN
DISTANCE: 500 FEET
RADIO
DECODE
ACCESS GRANTED
READER KEYPAD
ACCESS OUT DATA
ACCESS IN DATA
ACCESS A
ACCESS B
ACCESS C
OBSTACLE
MAGIC WAND
ACCESS D
B
O 1 O 1 O 1
B
O 1 N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C. N.O. COM. N.C.
EARTH
GROUND
ACCESS OUT
KEYPAD IN
CHANNEL A CHA NNEL B CHANNEL C CHANNEL DREADER IN
14 - 24 VAC
12 - 35 VDC
AC POWER
INPUT
DC POWER
INPUT
NETWORK
OFF
ON
POWER
RESET
DISPLAY
CONTRAST
MEMORY EXPANSION CARD
MEDIUM (64 K)
SMALL (16 K)
LARGE (128 K)
X-LARGE (256 K)
WA RNI NG
TURN THE POWER SWITCH OFF BEFORE INSTALLING OR
REMOVING THIS MEMORY EXPANSION CARD
SEVERE
ELECTRICAL
DAMAGE
32
