Chapter 6: Setting Up and Configuring the Router
Status Tab
4-Port Gigabit Security Router with VPN
DHCP Server. The status of the Router's DHCP server function is displayed here.
Start IP Address. This shows the beginning of the range of IP addresses used by the DHCP Server.
End IP Address. This shows the end of the range of IP addresses used by the DHCP Server.
DHCP Client Table. Clicking this button will open a screen showing you which PCs are utilizing the Router as a
DHCP server. On the DHCP Client Table screen, you will see a list of DHCP clients (PCs and other network devices)
with the following information: Client Names, Interfaces, IP Addresses, MAC Addresses, and the length of time
before their assigned IP addresses expire.
ARP/RARP Table. Clicking this button will open a screen showing you which PCs are utilizing the Router as a
ARP/RARP server. On the ARP/RARP Table screen, you will see a list of ARP/RARPs (PCs and other network
devices) with the following information: IP Addresses and MAC Addresses.
VPN Clients
Username. Displays the username of the VPN Client.
Status. Displays the connection status of the VPN Client.
Start Time. Displays the start time of the most recent VPN session for the specified VPN Client.
End Time. Displays the end time of a VPN session if the VPN Client has disconnected.
Duration. Displays the total connection time of the latest VPN session.
Refresh button. Updates the screen with the latest VPN Client information.
Disconnect button. Check the Disconnect box and click the Disconnect button to disconnect a VPN Client.
Figure 6-44: VPN Clients

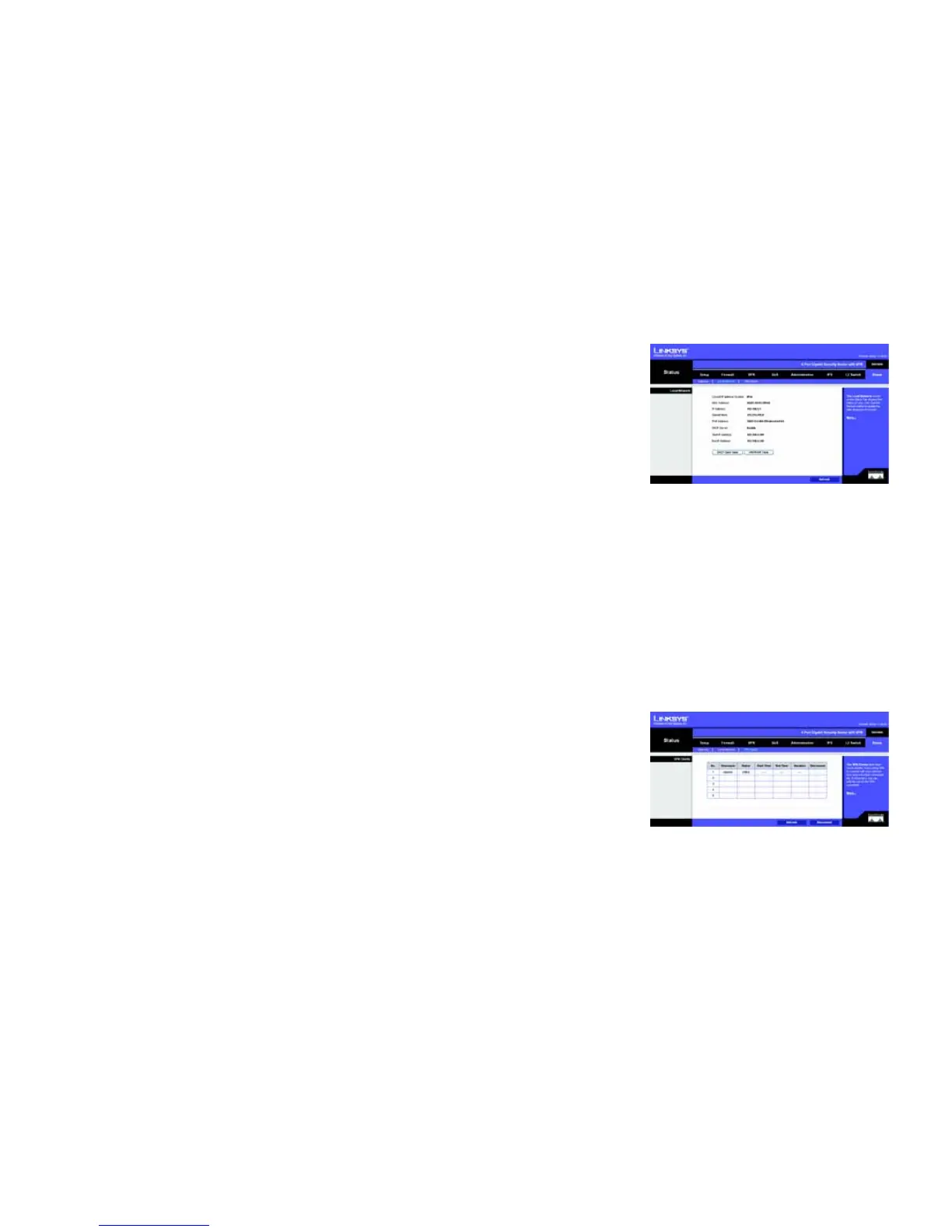

Figure 6-43: Local Network
