Appendix D: Configuring a Gateway-to-Gateway IPSec Tunnel
Configuring the VPN Settings for the VPN Routers
1. Launch the web browser for a networked PC, designated PC 1.
2. Enter the VPN Router’s local IP address in the Address field (default is 192.168.1.1). Then press Enter.
3. A password request page will appear. (Non-Windows XP users will see a similar screen.) Complete the User
Name and Password fields (admin is the default user name and password). Then click the OK button.
4. Click the VPN tab.
5. Click the IPSec VPN tab.
6. For the VPN Tunnel setting, select Enabled.
7. Enter a name in the Tunnel Name field.
8. For the Local Secure Group, select Subnet. Enter VPN Router 1’s local network settings in the IP Address and
Mask fields.
9. For the Remote Secure Group, select Subnet. Enter VPN Router 2’s local network settings in the IP Address
and Mask fields. Note that the subnet of Router 2 must be different than the subnet of Router 1.
10. For the Remote Secure Gateway, select IP Addr. Enter VPN Router 2’s WAN IP address in the IP Address field.
11. Click the Save Settings button.

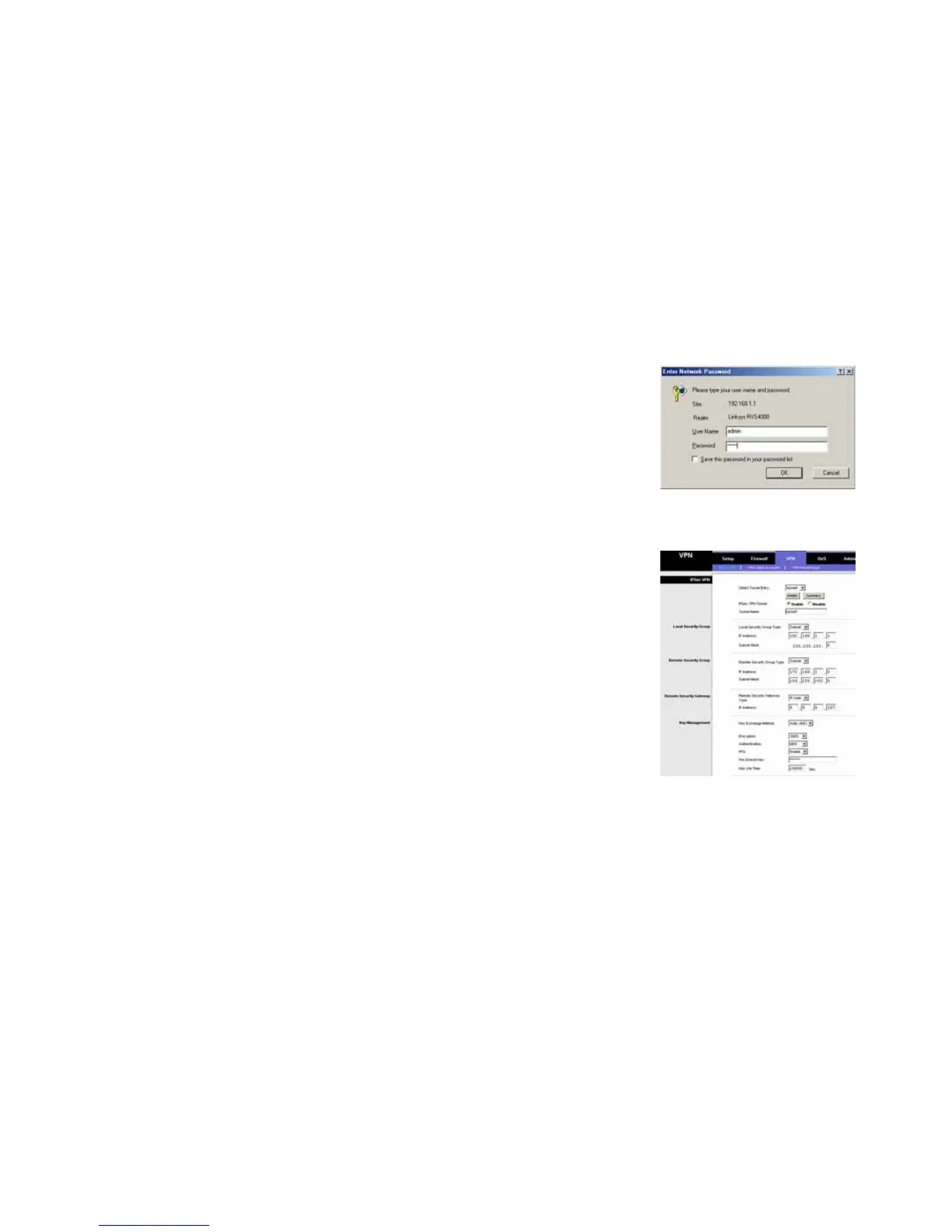

Figure D-2: Login Screen
Figure D-3: Security - VPN Screen (VPN Tunnel)
