Chapter 6: Setting Up and Configuring the Router
Status Tab
4-Port Gigabit Security Router with VPN
Status Tab
Gateway
Firmware Version. This is the Gateway current firmware.
MAC Address. This is the Gateway MAC Address, as seen by your ISP.
Current Time. This shows the time, based on the time zone you selected on the Setup tab.
Internet Connection
Connection Mode. This shows the mode of the connection.
Login Type. This indicates the type of Internet connection you are using.
Interface. The Gateway Internet Interface is displayed here.
IP Address. The Gateway Internet IP Address is displayed here.
Subnet Mask. This Subnet Mask is associated with the IP address above.
Default Gateway. This is your ISP's Gateway.
DNS. Shown here are the DNS (Domain Name System) IP addresses currently used by this Gateway.
IPv6 DNS. This displays the IPv6 DNS IP Primary and Second Address.
Local Network
Current IP address System. This shows the current system.
MAC Address. This is the Router MAC Address, as seen on your local, Ethernet network.
IP Address. The Internet IP Address is displayed here.
Subnet Mask. This Subnet Mask is associated with the IP address above.
IPv6 Address. This shows the IPv6 IP address, if applicable.

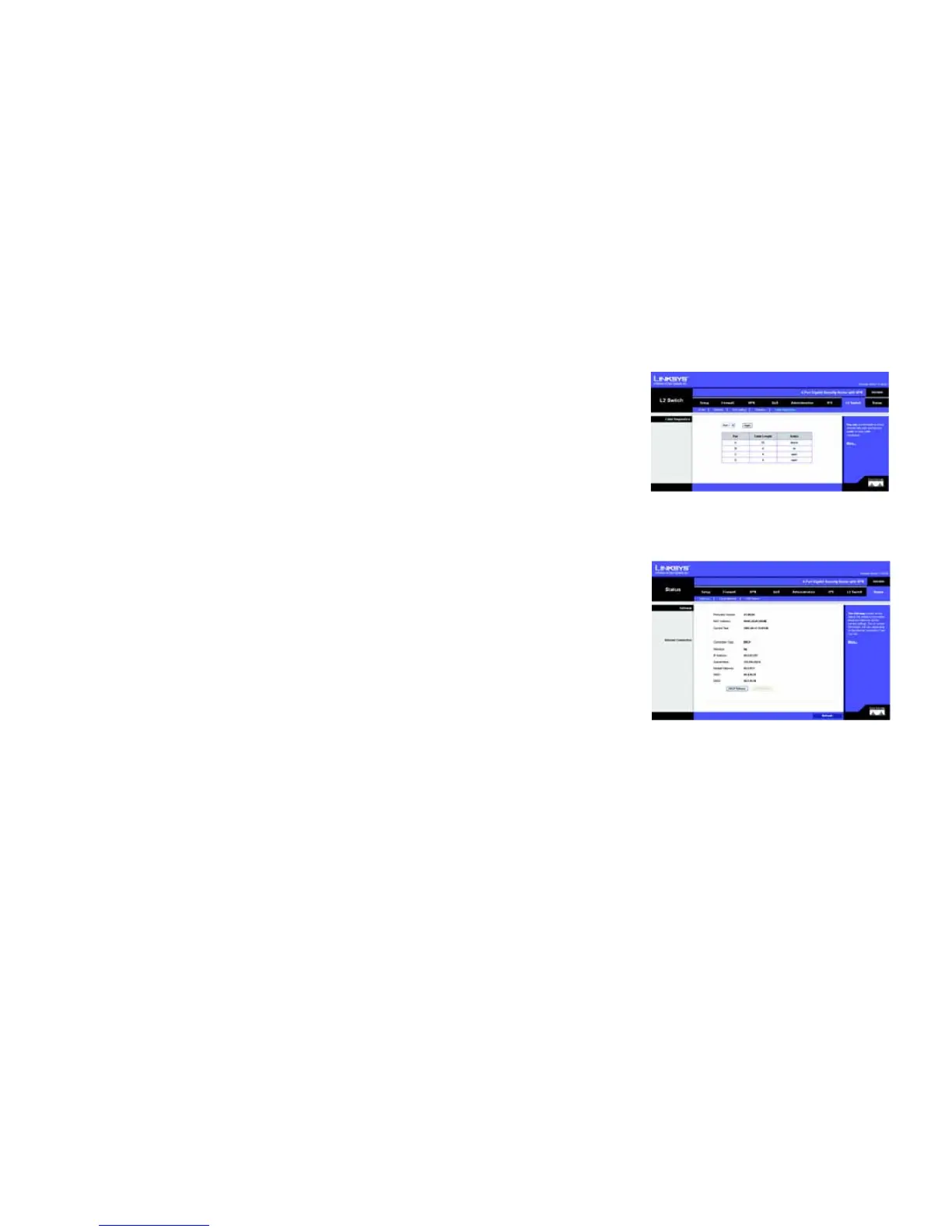

Figure 6-42: Status
Figure 6-41: Cable Diagnostics
