67
Appendix C: Configuring IPSec between a Windows 2000 or XP Computer and the Router
How to Establish a Secure IPSec Tunnel
4-Port Gigabit Security Router with VPN
7. Select the Tunnel Setting tab, and click The tunnel endpoint is specified by this IP Address radio button.
Then, enter the Router’s WAN IP Address.
8. Select the Connection Type tab, and click All network connections. Then, click the OK or Close button to
finish this rule.
Tunnel 2: Router->win
9. In the new policy’s properties screen, make sure that “win -> Router” is selected and deselect the Use Add
Wizard check box. Then, click the Add button to create the second IP filter.

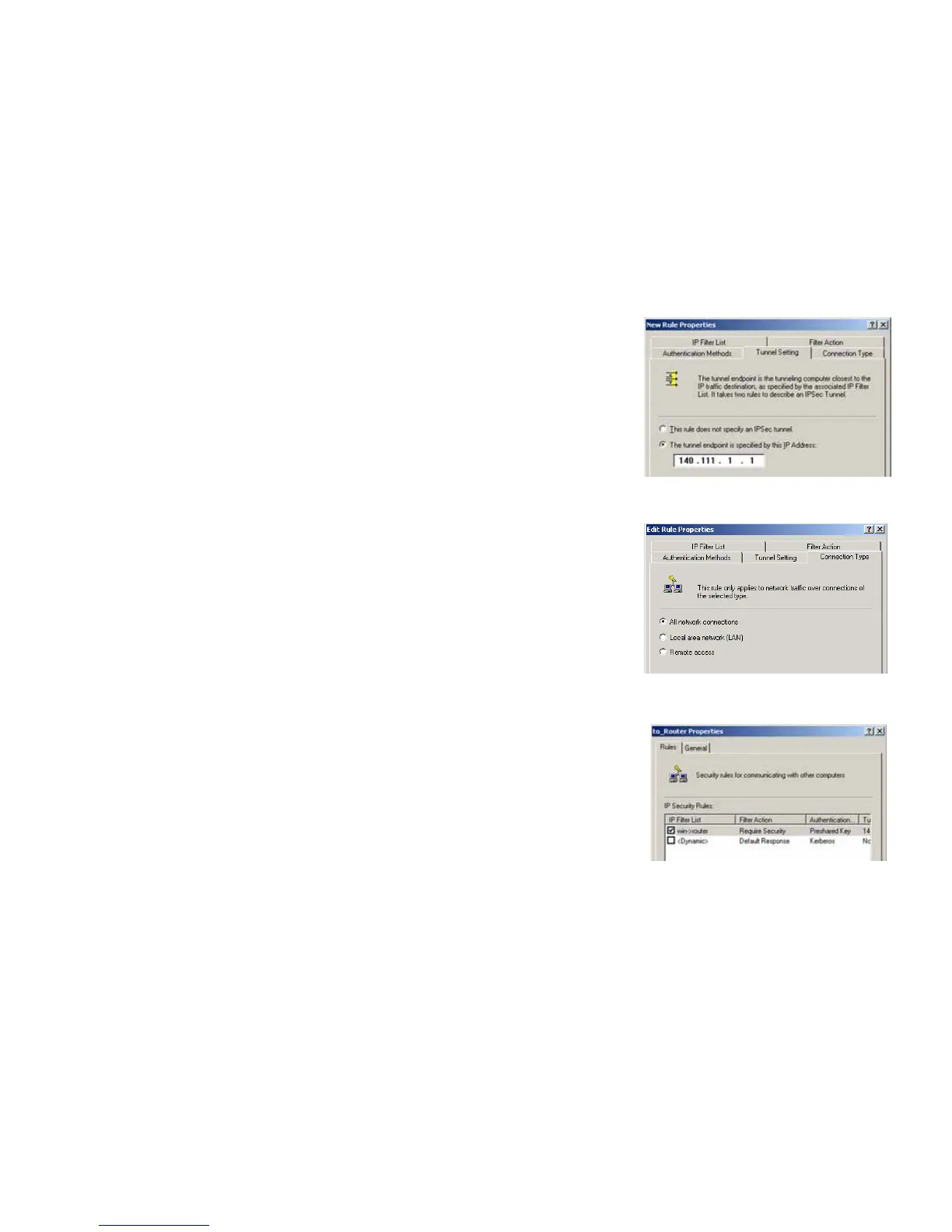

Figure C-16: Tunnel Setting Tab
Figure C-17: Connection Type Tab
Figure C-18: Properties Screen
