6
Chapter 3: Getting to Know the IP Telephony System
The Back Panel
IP Telephony System
Chapter 3: Getting to Know the IP Telephony System
The Back Panel
The System’s ports are located on its back panel.
PHONE 1/2 The PHONE 1/2 ports allow you to connect analog telephones (or fax machines) to the System
using RJ-11 telephone cables (not included).
ETHERNET The ETHERNET port connects to an administration computer, so you can access the System’s
Web-based Utility for configuration.
INTERNET This INTERNET port connects to either a router or broadband modem.
Power The Power port is where you will connect the power adapter.

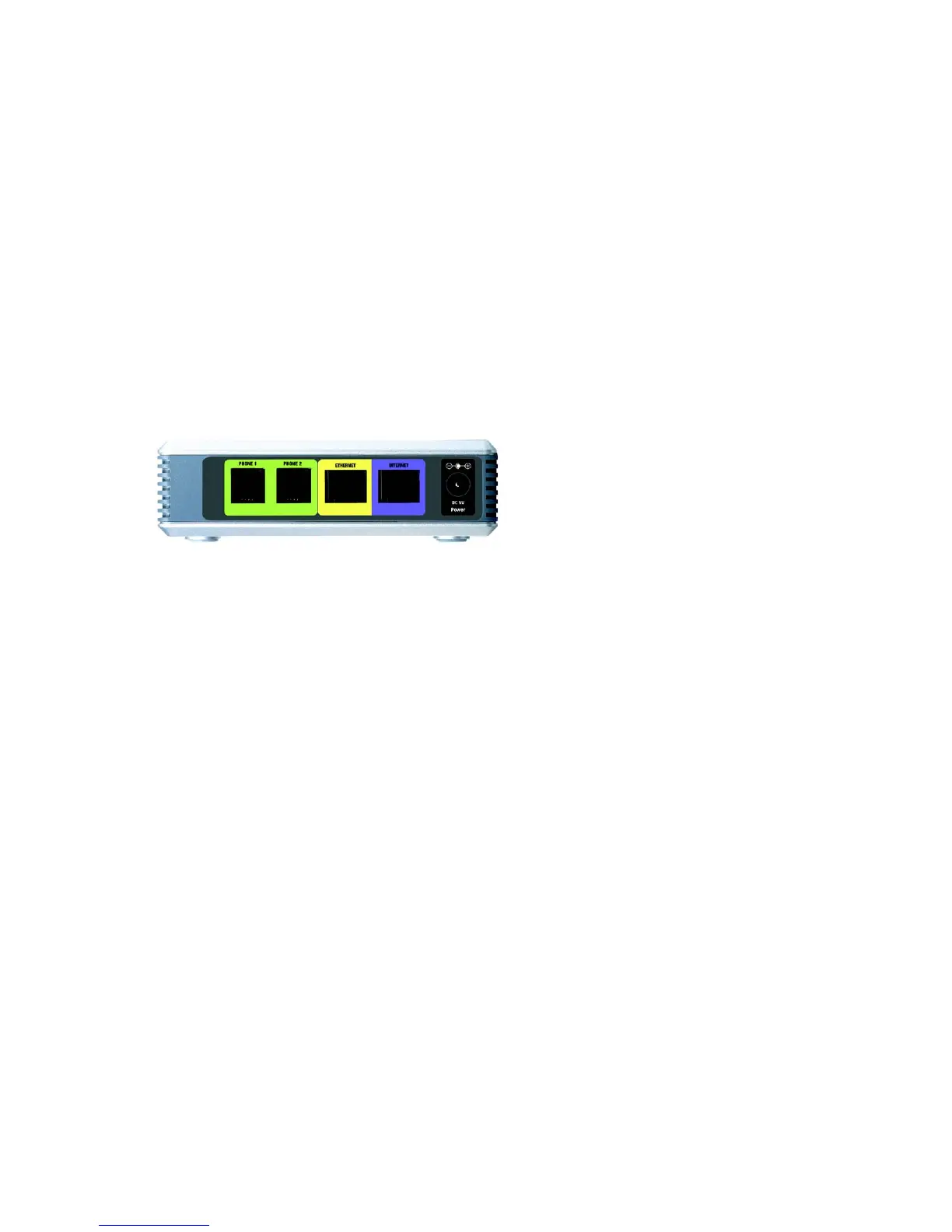

Figure 3-1: Back Panel
