Chapter 3: Getting to Know the IP Telephony System
The Front Panel
IP Telephony System
The Front Panel
The System’s LEDs are located on its front panel.
Power Green. The power LED is solidly lit when the System is powered on and connected to the
Internet. It flashes when there is no Internet connection.
ETHERNET Green. The ETHERNET LED is solidly lit when there is an Internet connection. It flashes when
there is network activity.
PHONE 1/2 Green. The PHONE 1/2 LED is solidly lit when the phone is on-hook and registered. (The
connection is registered if your Internet phone service account is active.) The LED is not lit
when the phone is on-hook and not registered. It flashes when the phone is off-hook.

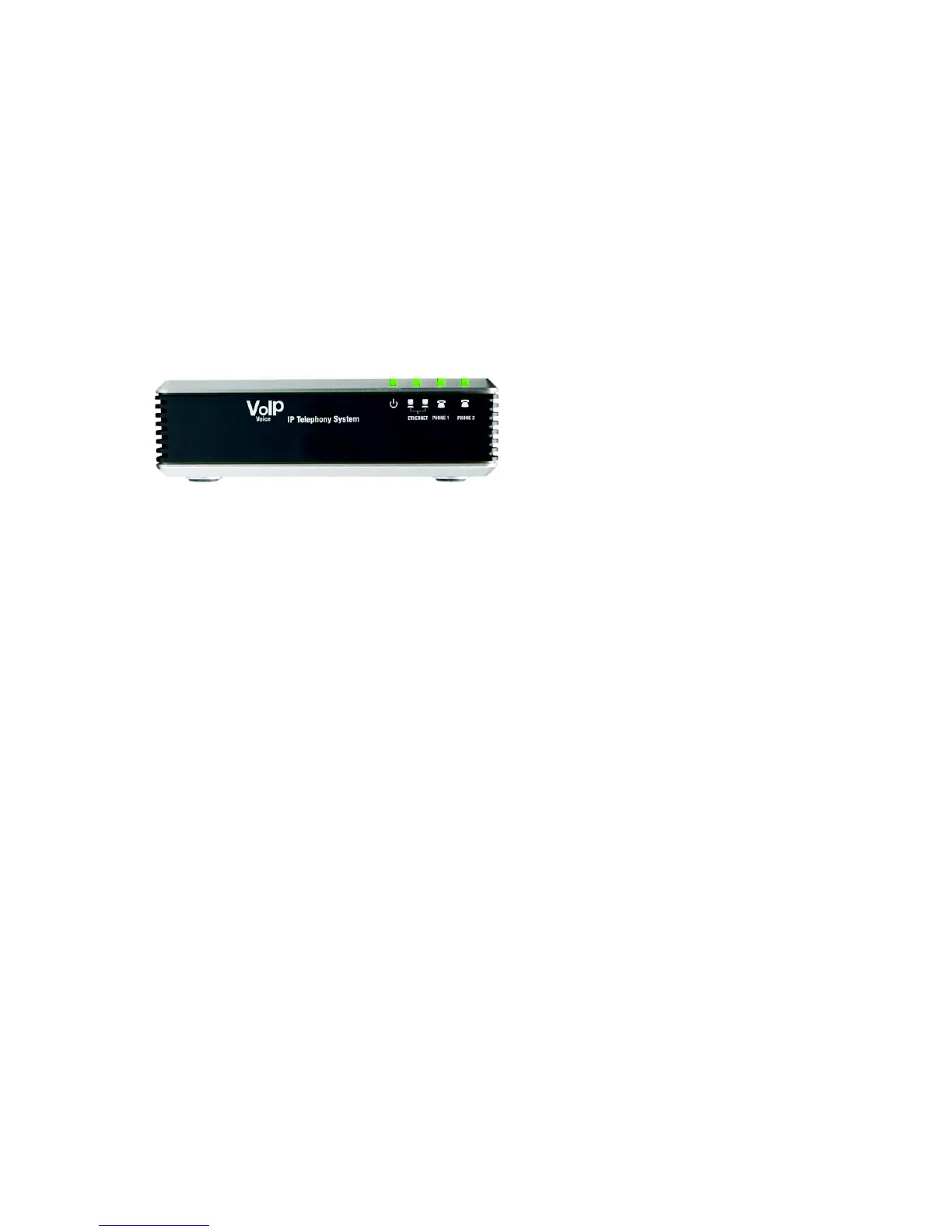

Figure 3-2: Front Panel
