WALL MOUNTING BRACKET SETUP
1. To begin the set-up process using the wall mounting bracket, locate a wall surface
that can hold at least 50 lbs. (23 kg) (per panel), and will withstand 150 PSI (10.3 bar)
water from any size hose line. Multiple brackets may be used for multi-panel set-ups.

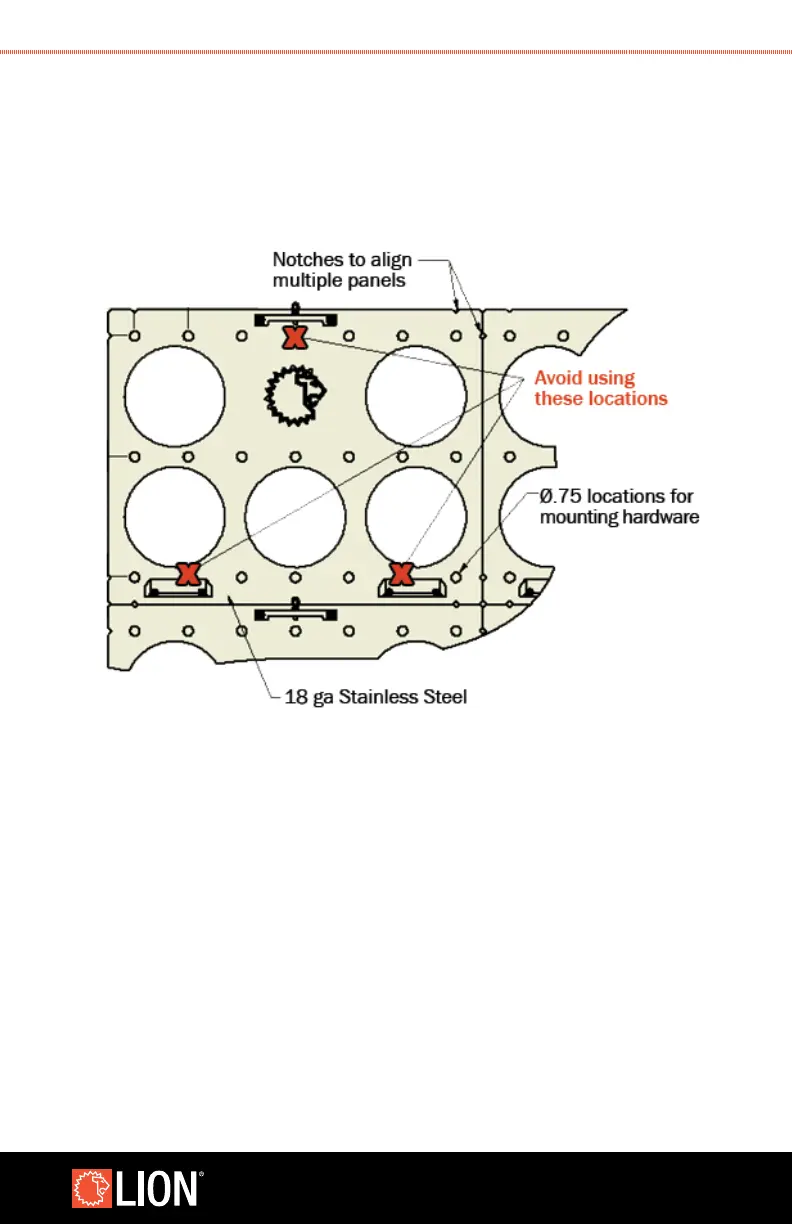

See gure below for guidance.
2. Mount the bracket to the wall in the desired location. LION does not supply mounting
hardware for this bracket. Choose hardware using appropriate hardware for the wall
structure that:
a. Will support at least 50 lbs. (23 kg) using at least 4 mounting location on
each bracket.
b. Has a fastener head plus washer height of 0.5 in. (1.27 cm.) or less.
