Rev: 11.19.20 Page 11 CCD-0002764

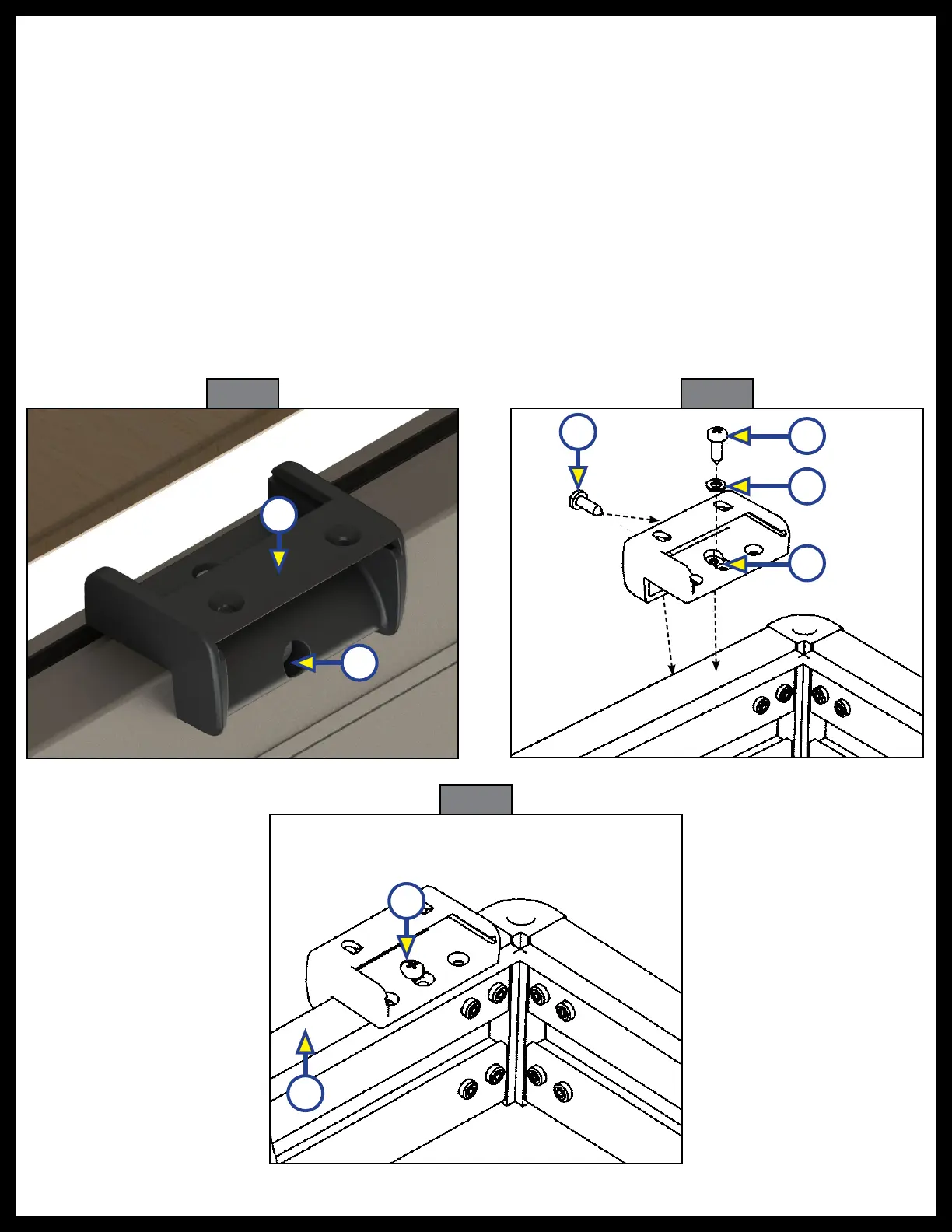

Belt Brackets
NOTE: The proper belt bracket locations will depend on the type of bed lift configuration and where the
motor is installed.
NOTE: Keep a minimum distance from each belt bracket (Fig. 12B) to the side of the bed (Fig. 12C) to avoid
tip-over when under load.
1. Determine which rail of the bed frame will be against the wall. The stabilizer guide track bracket
(Fig. 12D) locations may vary per bed.
2. Place the belt bracket (Fig. 13A) on the end rail frame, as close as possible to the side of the bed frame.
3. Use a 12 mm (15/32 in) drill bit to pre-drill the side hole (Fig. 13B).
4. Install a 4.2 mm x 13 mm screw (Fig. 14A) in the side hole of the belt bracket.
5. Use a 4 mm (5/32 in) drill bit to pre-drill the top of the end rail hole (Fig. 14D).
6. Install a 4.2 mm x 13 mm screw (Fig. 14B, Fig. 15A) with a #5 washer (Fig. 14C) into the belt bracket top
hole (Fig. 14D) and into the end rail (Fig. 15B).
7. Repeat steps 2-6 for the other belt bracket.
Fig. 13
Fig. 14
Fig. 15
A
B
A
B
A
B
C
D
To Next Page
