Key Switch
NOTE: If installing on a unit with aluminum backing in the wall, use a minimum size of #10 x 1"
self-drilling screws. If installing on a unit with wood backing in the wall, use a minimum size of
#10 x 1" wood screws.
1. The Bed Lift switch can be installed in the wall of the unit next to the bed frame or, if installing padded
rails to the bed frame, in the padded rails.
2. Cut into the wall or the side panel of the bed an area 3" x 2" x 1" for the switch plate to be installed.

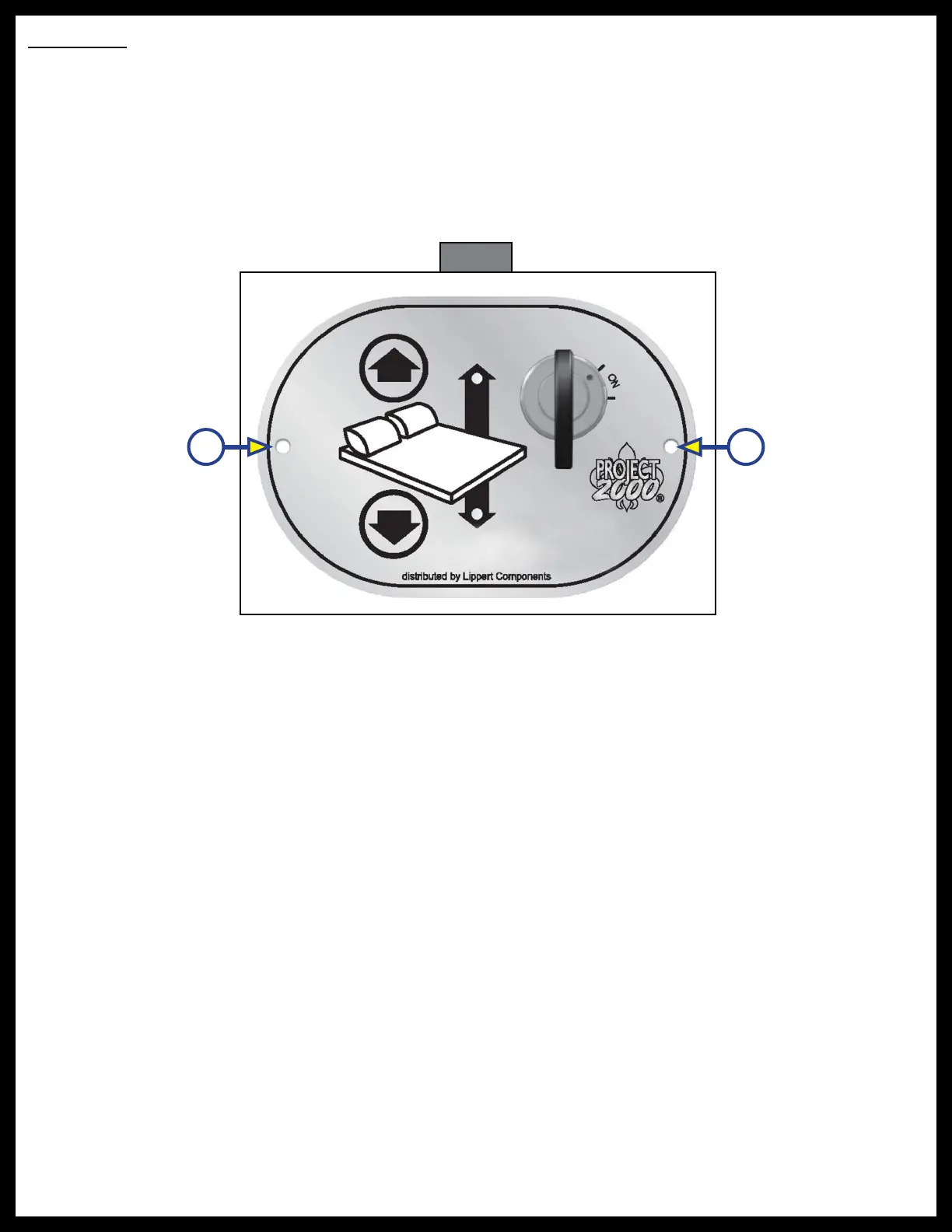

3. Install two #10 x 1/2" screws one screw on each side of the switch plate (Fig. 29A).
Fig. 29
A A
