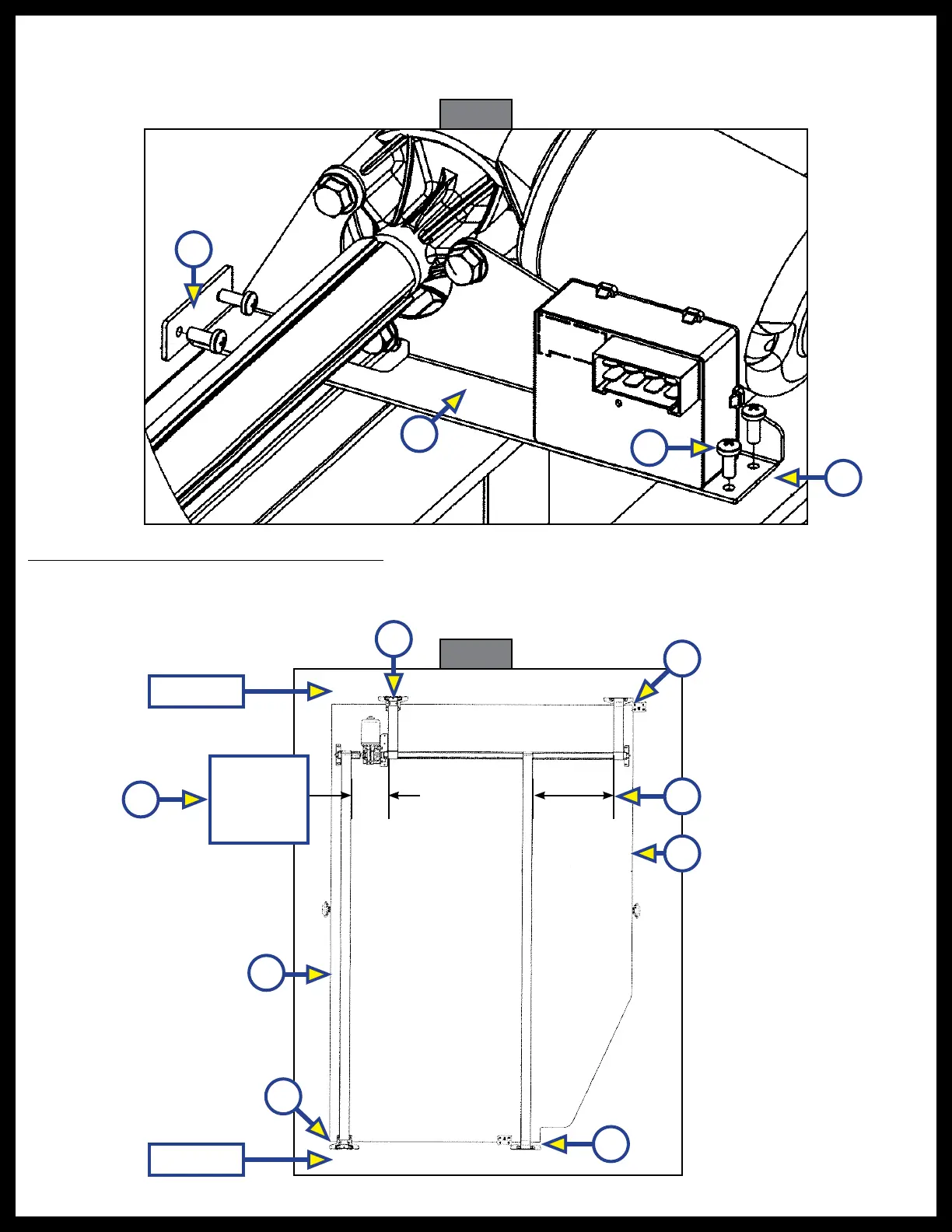

21. Fasten the motor mounting bracket (Fig. 11A) to the motor mount support (Fig. 11B) with two 4.2 mm
x13mm screws (Fig. 11C). On the opposite end of the motor mounting bracket install two 4.2 mm x 13 mm
screws through the bracket and into the end rail (Fig. 11D).
Fig. 11
A
B
C
D
Belt and Stabilizer Guide Track Brackets
Make sure to keep a minimum 5 mm (
⁄
in) gap (Fig. 12A) between the two belts on each side of the bed
lift. Install the belt brackets (Fig. 12B) as close as possible to the side of the bed (Fig. 12C) to avoid tip-over
when under load.
Fig. 12
Wall Side
Wall Side
B
B
5mm
Minimum
Distance
C
A
D
A
C
D
