Rev: 09.19.23 Page 15 CCD-0007153

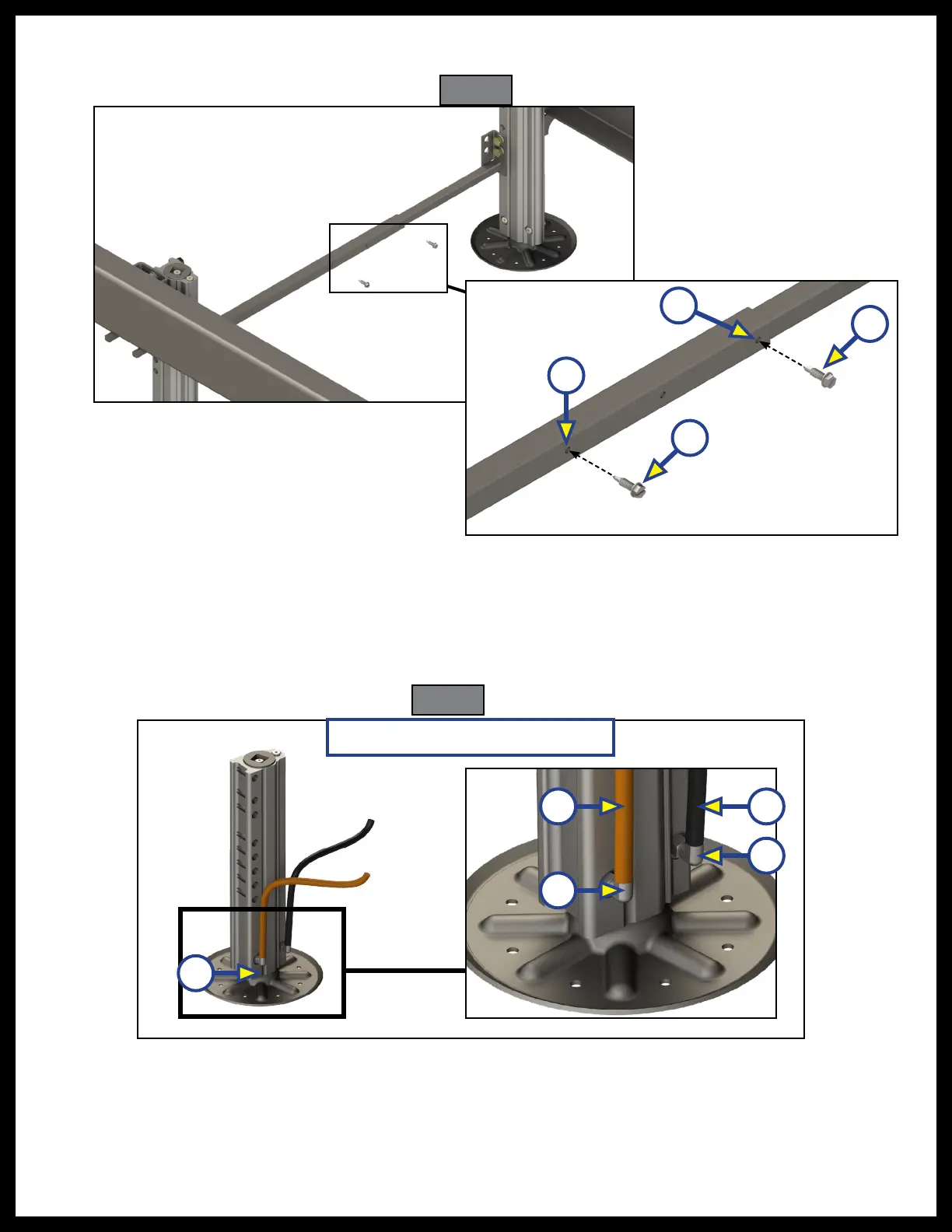

through the outer most hole options on the outer crossbar shaft (Fig. 31B).
17. At the bottom of the inside face of the jack (Fig. 32A), remove the retract and extend port plugs and
attach two JIC 90 degree elbow retract fittings (Fig. 32D). Attach the pre-measured orange retract
(Fig. 32B) and black extend hoses (Fig. 32C).
18. Repeat step 17 for the opposite side.
19. Attach the opposite ends of the extend and retract hoses to the hydraulic pump. See the Hydraulic
Plumbing Diagram section in this manual.
D
D
C
Driver's Side Rear Jack Assembly
B
A
Fig. 31
Fig. 32
A
A
B
B
