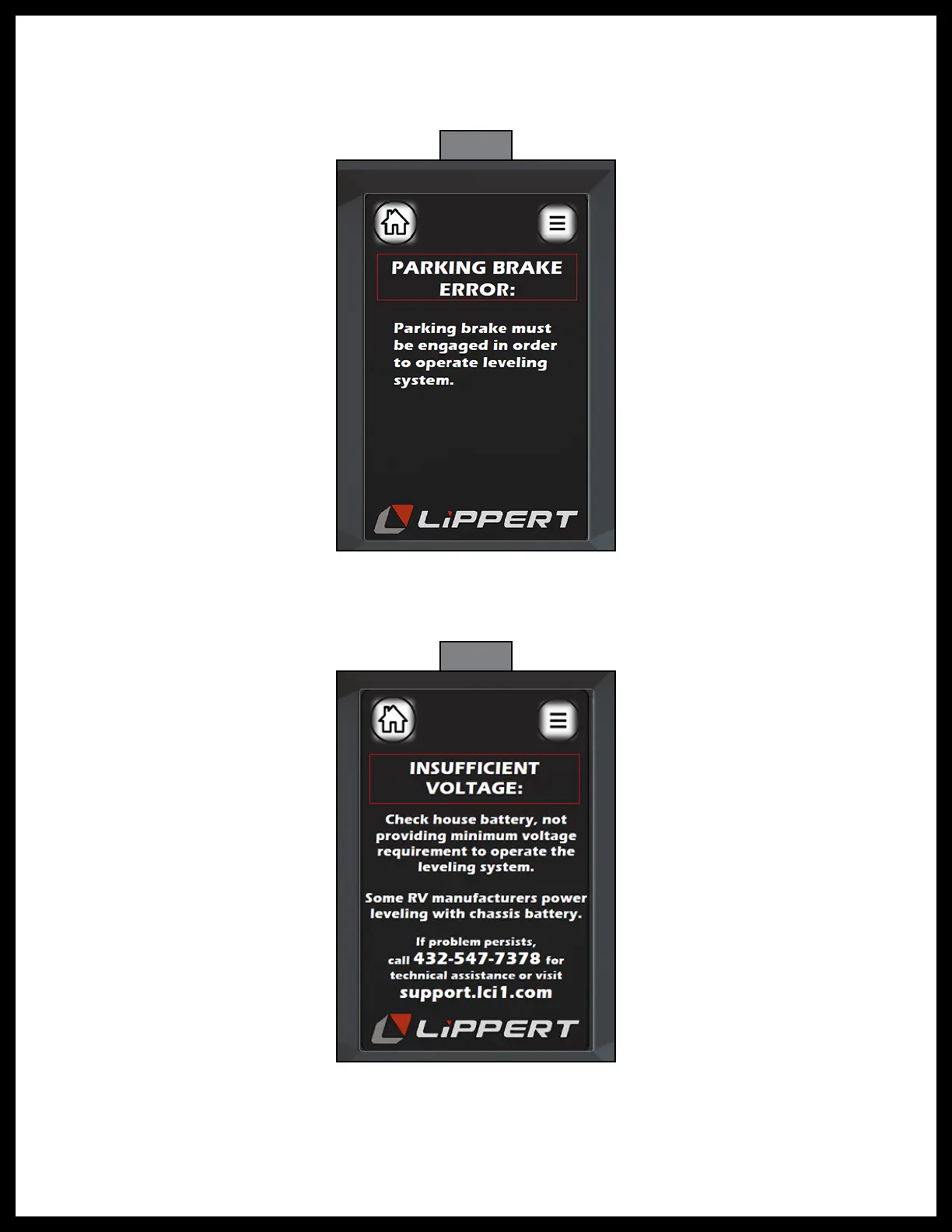

7. Figure 55, "Parking Brake Error", will appear when no parking brake signal is received and there is
no pressure switch signal indicating jacks are still retracted. Screen prompted before auto level and
manual mode functions. Screen prompted for five seconds, then returns to home screen (Fig. 49).
If jacks are extended and parking brake signal is lost, jacks will automatically retract.
Fig. 55
Parking Brake Error
Fig. 56
Insufficient Voltage
8. Figure 56, "Insufficient Voltage", screen may be prompted when the control is receiving
less than 10.5 volts for during the "Auto Level" function and 7.5 volts during the "Retract" function.
