10. Figure 58, "Level Success!" screen is prompted after auto level feature has successfully completed.
Accompanied by an audible charm (3 seconds long). Screen stays active for 5-10 seconds, then returns
to home screen (Fig. 49).
9. Figure 57, "Retract Error" screen will appear if with ignition on and touchpad on or in “sleep” mode
(display off, power to control still on). If the control receives signal from the pressure switch (meaning
the internal pressure of the hydraulic system has dropped below 2,150 psi, connection lost from
pressure switch to control), the control enters retract all mode. If pressure switch does not open
back up after 10 seconds, the audible alarm can be prompted (2 seconds on, two seconds off, 70-85
decibels), jacks will stop retracting and this screen to be displayed. Alarm will continue to run until
coach ignition is off or pressure switch opens up indicating that optimal pressure is reached. DO NOT
ignore this alarm, there may be a jack down or component failure, possibly making it dangerous to
drive. Operator can use the home or menu icon and reach “retract jacks” function.

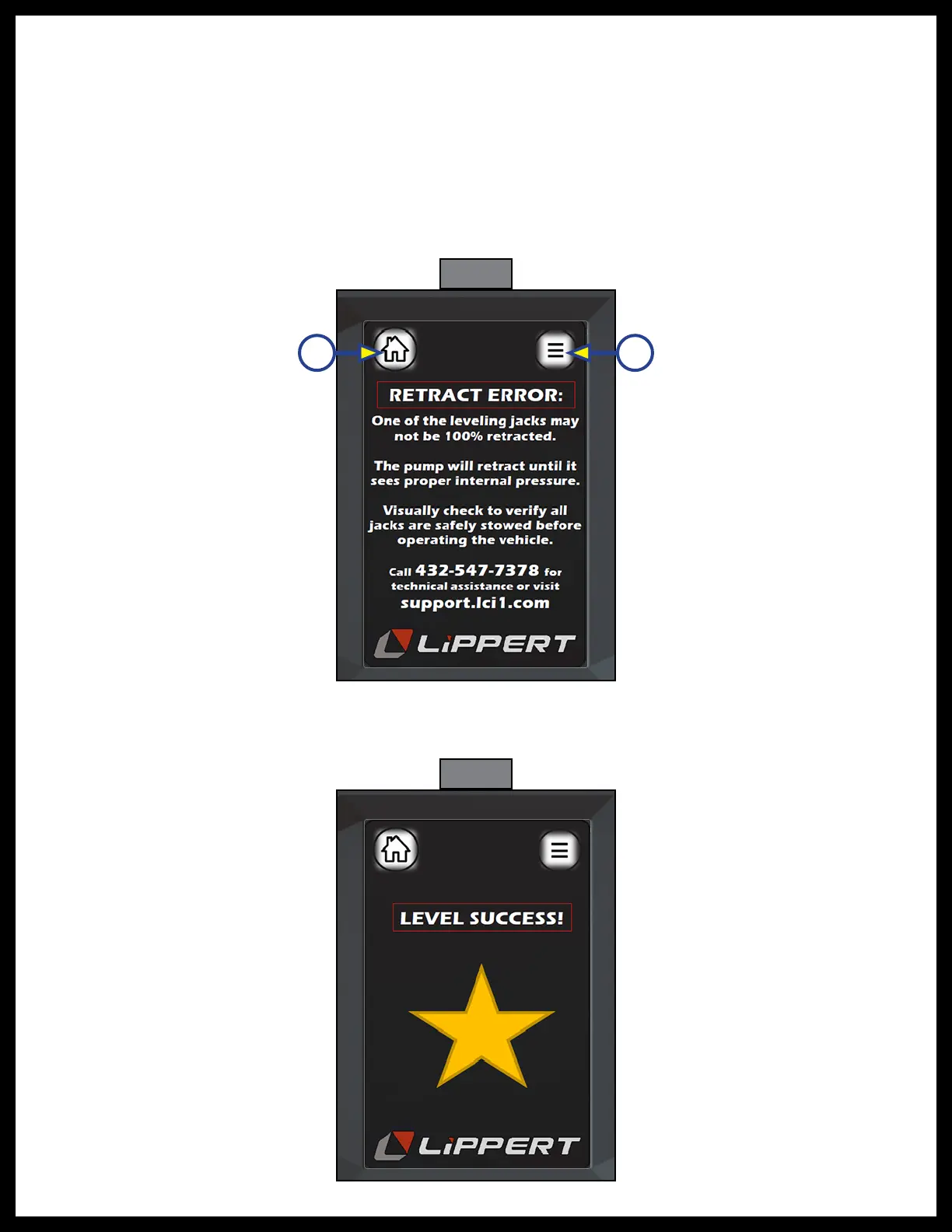

Fig. 57
Retract Error
A B
Fig. 58
Level Success!
