Liquid Controls Avery-Hardoll BM Series User Manual

TP0003B
BM BULKMETER
Chap 7A
Page 1
Appendix to Chapter 7
CALIBRATING MECHANISM Mk.IIA FITTED TO METERS MADE BEFORE 1998

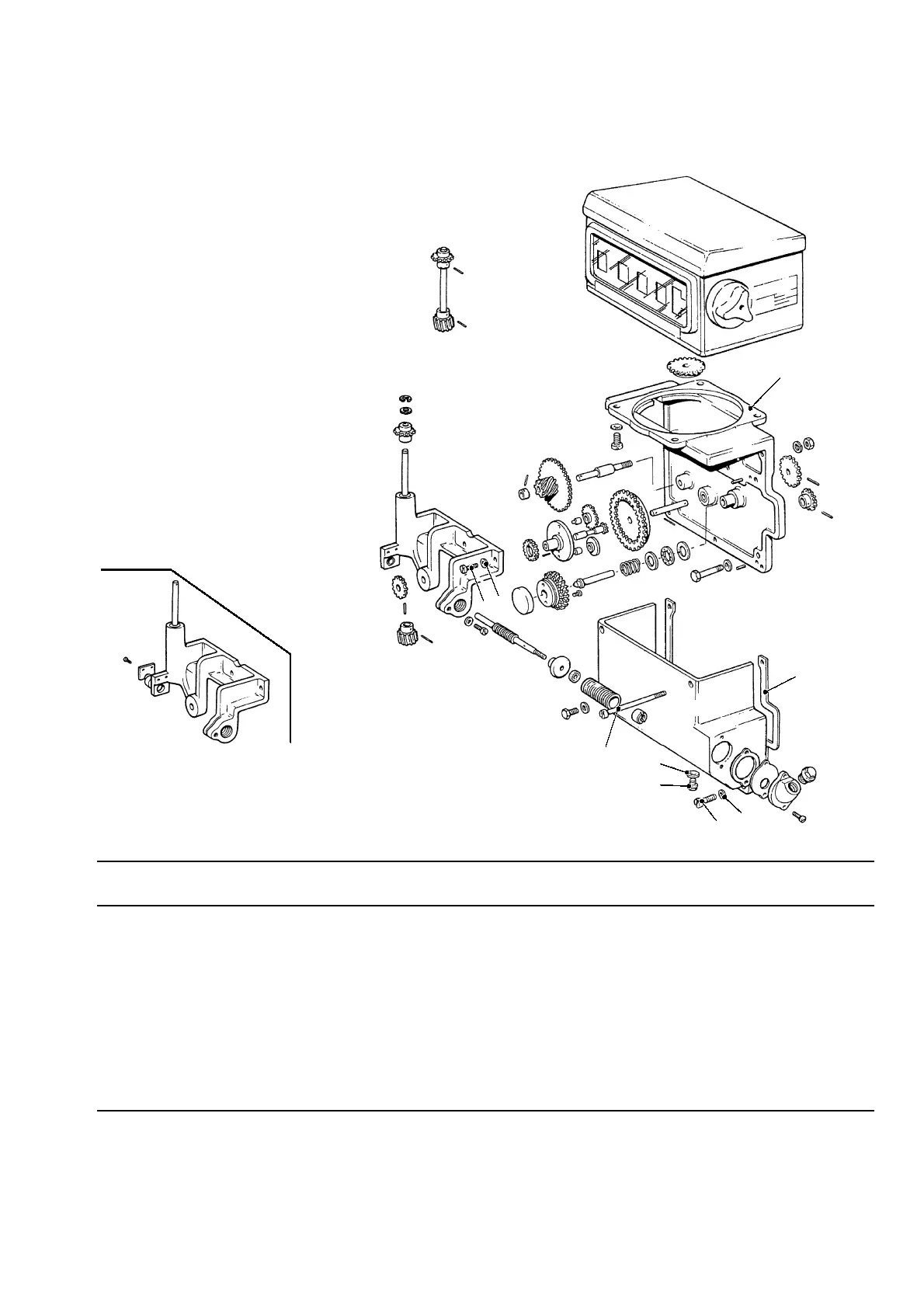

FIG 7.3 CALIBRATING MECHANISM (PRE 1998)
ALTERNATIVE
ARRANGEMENT
1
2
3
4
5
6
7
8
3
Fig/
Item No.
Part No. Description Qty
7-2
1 BMMS19282 COUNTER DRIVE MECHANISM BASE SUB
ASSEMBLY
1
2 ZS3203A0210A SCREW 2BA X 5/8’’ CH. HD. 3
3 ZW2201A02A WASHER 2BA PLAIN 6
4 ZACZ0017-2 DRAIN PLUG 1
5 ZMMZ0135-4 WASHER 1
6 BMDZ106 GASKET, CALIBRATING MECHANISM COVER 1
7 BMSZ121 SCREW SPECIAL 2
8
ZS2203A0210A SCREW 2BA X 5/8’’ CH. HD. MS. 3
* = SUGGESTED SPARE PART
