108
Closed
A Run command is input or the drive is during DC braking or deceleration
OFF ON
OFF
OFF
ON
ON
Run
command
Baseblock
command
Output
frequency
During Run

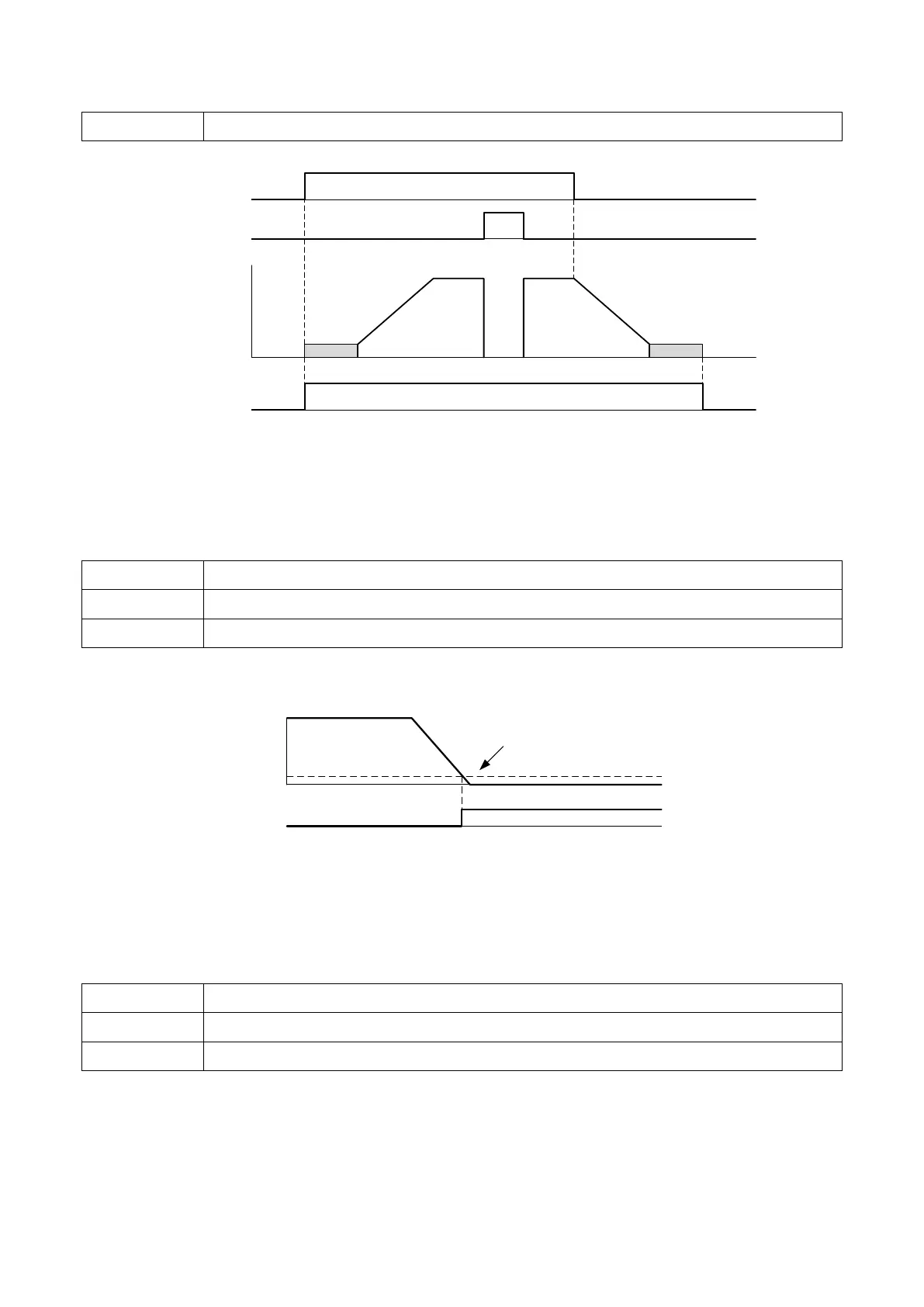

Figure 6.53 During Run Operation
1 : Zero Speed Holding
When the output frequency falls below the d1-08 (Minimum Output Frequency) or b2-00
(Zero Speed Holding Start Level) setting, the output terminal closes.
Terminal
Description
Open
Output frequency is higher than the d1-08 or b2-00 setting
Closed
Output frequency is lower than the d1-08 or b2-00 setting
Note: In IM/ PM Closed-Loop Vector Control, the terminal closes when the output frequency falls below the b2-00
setting. In all other control method, the terminal closes when the output frequency falls below the d1-08 setting.
Zero speed
Output
frequency or
motor speed
d1-08 or b2-00
OFF ON
Figure 6.54 Zero Speed Holding Operation
2 : Frequency (Speed) Agree
When the output frequency is within the value set to ±P4-01 (Frequency Detection Width), the
output terminal closes regardless the rotation direction.
Terminal
Description
Open
The output frequency does not match the frequency demand during run
Closed
Output frequency is within the value set to ±P4-01
Note:
1. The detection works in both forward and reverse directions.
2. In Closed-Loop Vector Control, the terminal closes when the motor speed is within the value set to P4-01.
