11 : Fault
When a fault is triggered, the assigned output terminal closes.
12 : Communication Mode
If the terminal is assigned to 12, it can be the output terminal for the upper controller using
Modbus communication. If the signal is not set by the controller, the signal will not perform
any action.
13 : Retain
14 : Fault Restart
When attempting to reset a fault from the control circuit terminals, via serial communications,
the assigned output terminal closes.
15 : Retain
16 : Frequency (FOUT) Detection 1
When the output frequency exceeds the P4-00 (Frequency Detection Level) level plus the
P4-01 (Frequency Detection Width) level, the assigned output terminal closes until the output
frequency reaches the P4-00 level.
Terminal
Description
Open
The output frequency exceeds the P4-00 level plus the P4-01 level
Closed
The output frequency does not exceed the P4-00 level plus the P4-01 level
Note:
1. The detection and the P4-00 level work in both forward and reverse directions.
Frequency
detection 1
OFF
ON
Output
frequency
P4-00
P4-01
P4-01
P4-00

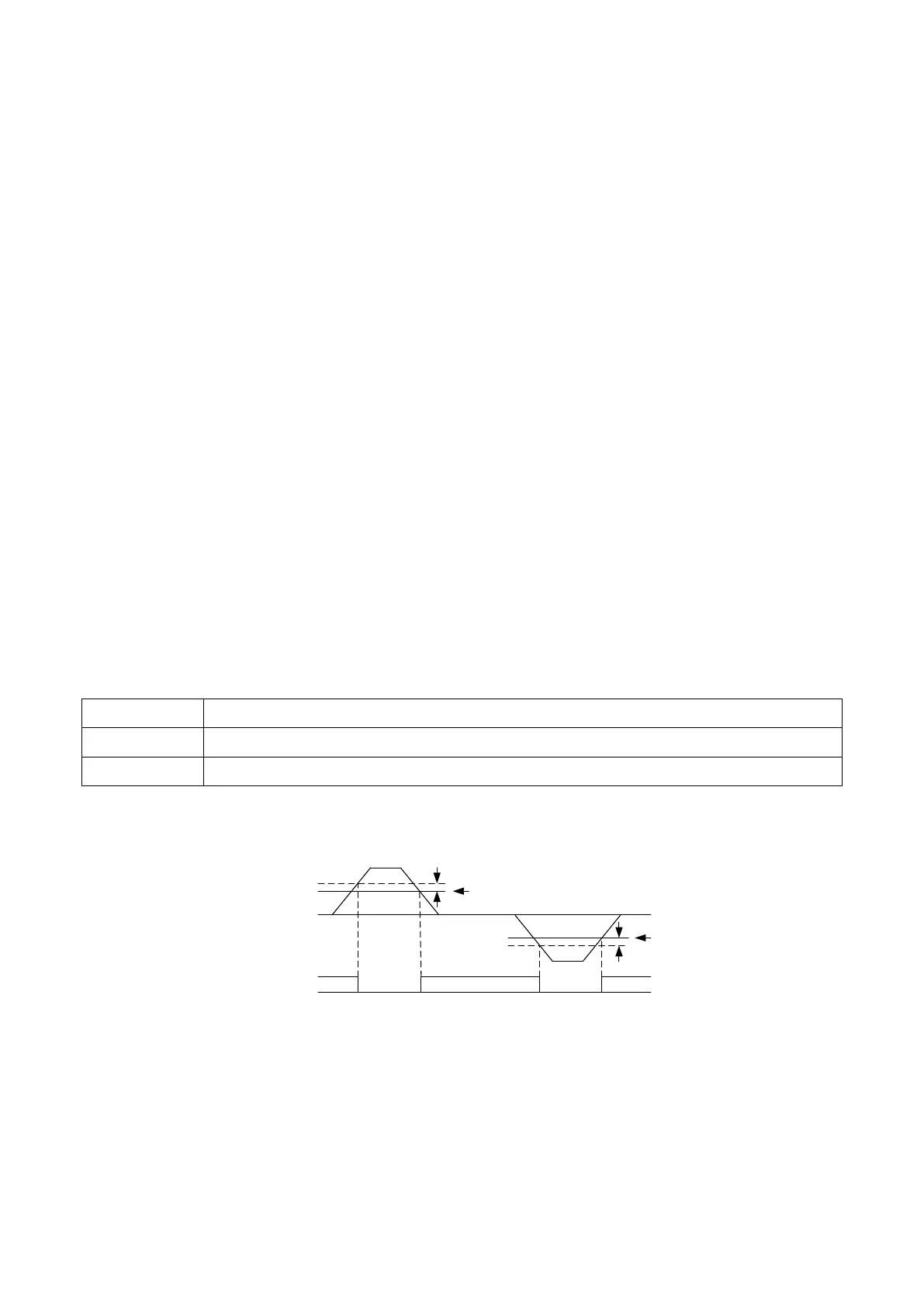

Figure 6.57 Frequency (FOUT) Detection 1 Operation
17 : Frequency (FOUT) Detection 2
When the output frequency exceeds the P4-00 (Frequency Detection Level) level, the assigned
output terminal closes until the output frequency reaches the P4-00 level minus the P4-01
value.
