LiteOn EVO600043S2D2E20F User Manual

112
Terminal
Description
Open
The output frequency does not exceed the P4-00 level, or below the P4-00 level minus
the P4-01 value.
Closed
The output frequency exceeds the P4-00 level
Note:
1. The detection and the P4-00 level work in both forward and reverse directions.
Frequency
detection 2
ON
OFF
Output
frequency
P4-00
P4-01
P4-01
P4-00

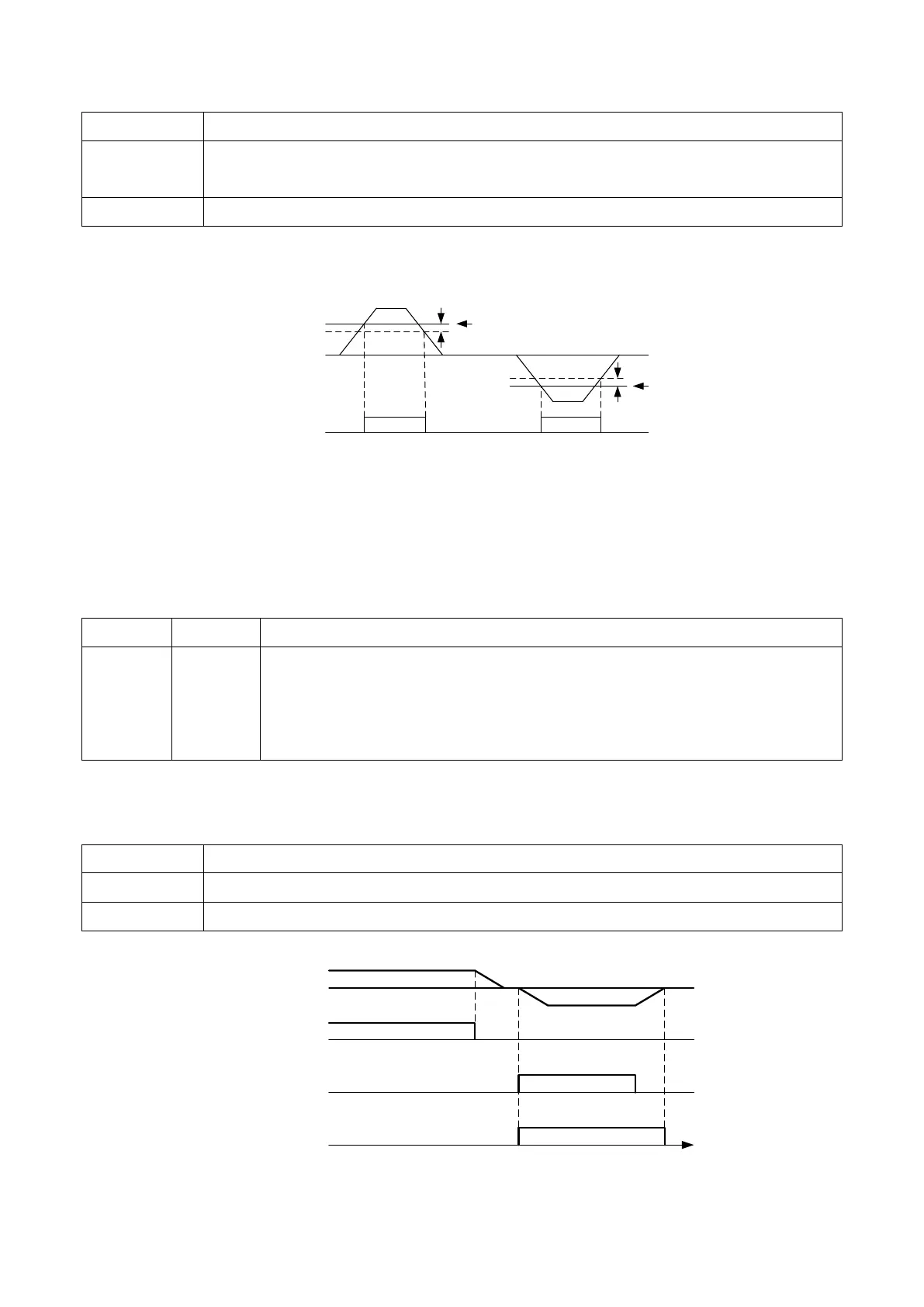

Figure 6.58 Frequency (FOUT) Detection 2 Operation
18/20: Overvoltage/ Undervoltage Detection 1/2
Outputs the overvoltage or undervoltage situations to the external devices. Set the torque
detection and the output setting listed below. Refer to P6 (Overtorque/ Undertorque
Detection) for details.
Setting
Terminal
Description
18
Open
Overvoltage/ Undervoltage Detection 1 (Normal Open)
The output current or torque exceeds the P6-01 (Overtorque/ Undertorque
Detection Level 1) level for the P6-02 (Overtorque/ Undertorque Detection
Time 1) time
22 : During Reverse
When the motor run in the reverse direction, the assigned output terminal closes.
Terminal
Description
Open
The motor runs in the forward direction
Closed
The motor runs in the reverse direction
Output
frequency
Forward Run
command
Reverse Run
command
During
reverse
OFF ON
Time
