LiteOn EVO600043S2D2E20F User Manual

119
100%
0
10 V
10%
5 V
20%
50%
1V 2V
Acc./Dec. gain from 1 to 10 V
= ╳ 10 (%)
( 10 V )
Input voltage ( V )

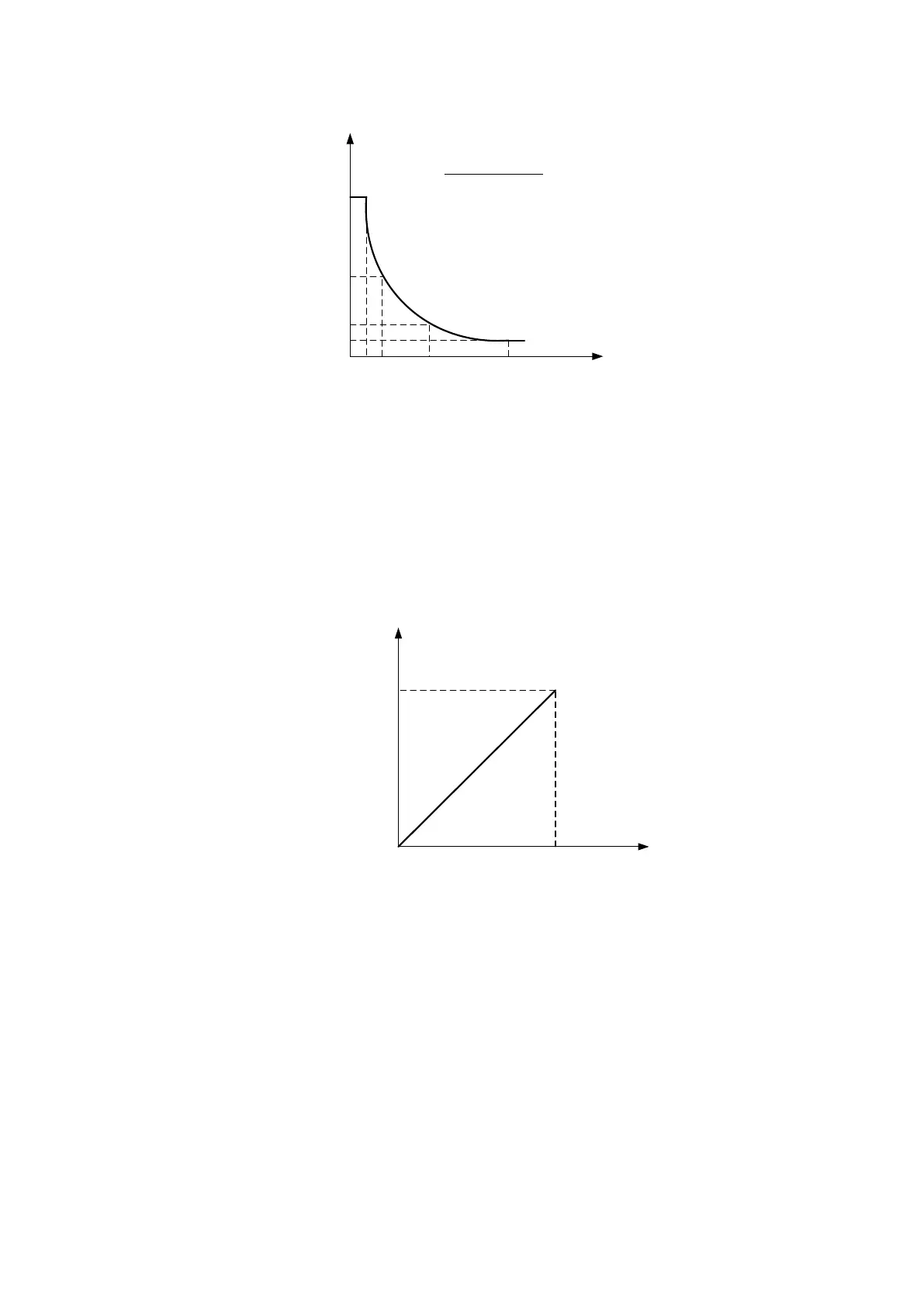

Figure 6.64 Acc./Dec. Time Gain Using Analog Input
6 : DC Braking (DB) Current
Adjusts the DC braking current by the analog input value.
When 10 V voltage or 20 mA current is input, the braking current will be 100% of the drive
rated output current. The actual DC braking current is determined by the analog input value or
the b2-01 value whichever is smaller.
100%
Drive rated current
0
( 4mA )
10 V
( 20mA )
DC braking current level
Figure 6.65 DC Braking Current Using Analog Input
7 : Stall Prevention Level During Run
Adjusts the stall prevention level by the analog input signal. The stall prevention level is
determined by the analog input value or the P3-06 value whichever is smaller.
