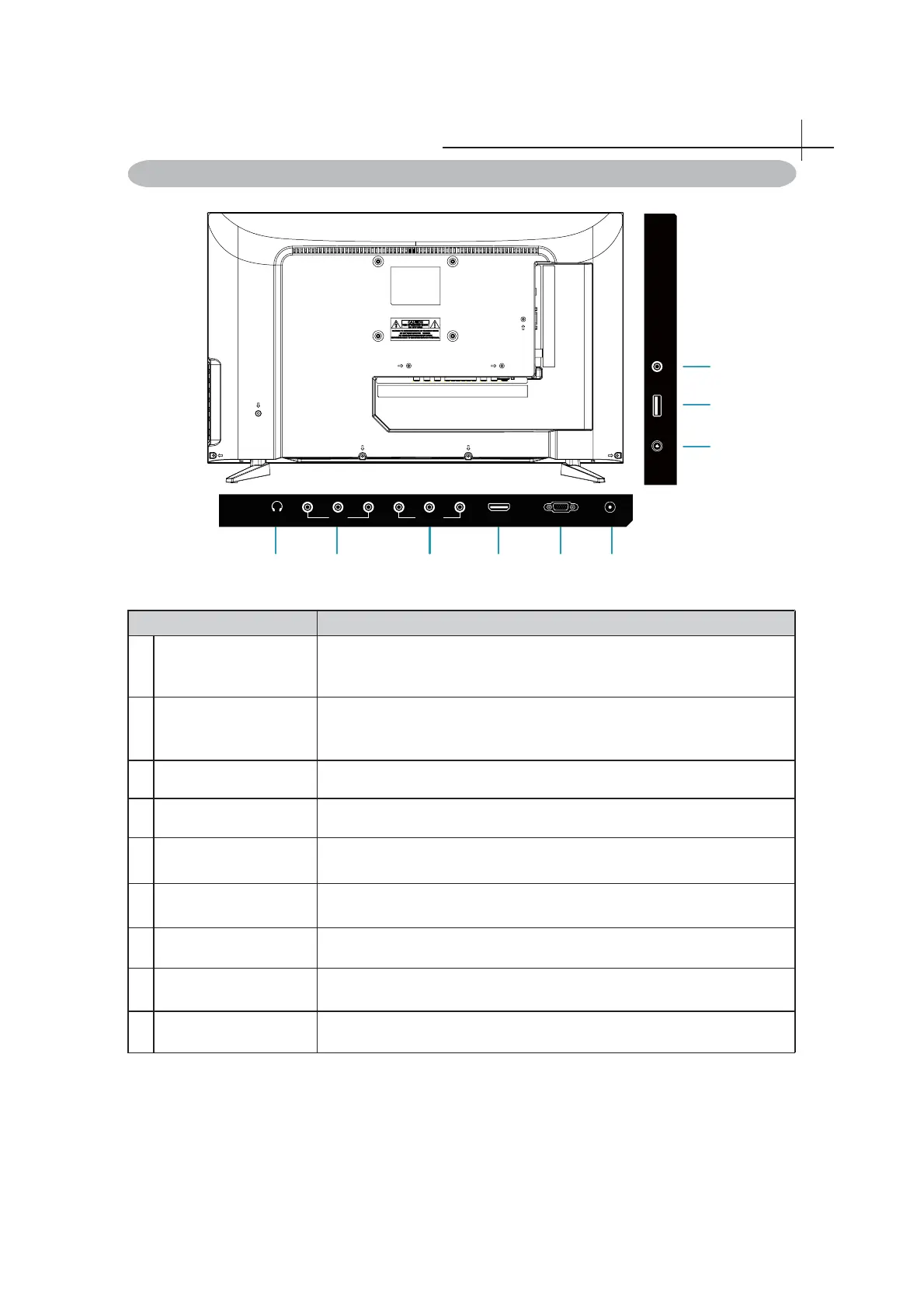

Rear View
Item Description
1
EARPHONE
Connect to your earphones. By connecting the earphones, you can listen to
the sound from the TV on headphones.
*If you connect the earphones, the TV speakers will be muted.
2
AV IN (CVBS RL)
Connect a external device to the composite VIDEO(V) and AUDIO (L/R)
out jacks found on most video equipment .
*L/R (Audio in) is sharing with YPbPr.
3 YPbPr signal input Connect this port to the YPbPr output of A/V device.
4 HDMI Input Terminal Connect this port to the HDMI output of A/V device.
5 VGA signal input
Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the LED TV.
6
PC Audio input
Connect the Audio Out on your computer to the Audio on the rear of the
LED TV.
7 TV Input Jack (RF) Connect this jack to your Cable or VHF/UHF antenna.
8 USB Connect to your USB devices, such as USB fl ash drive.
9 AV OUT Connect a external device to the composite MINI AV OUT in jacks.
12 3 45 6
7
8
9
HDMI
VGA IN PC AUDIO IN
YPrPb
YPbPr IN
LVR
AV IN
EARPHONE
RF IN
MINI AV OUTUSB
Overview of the TV set
