Specifications • 623
Serial Output

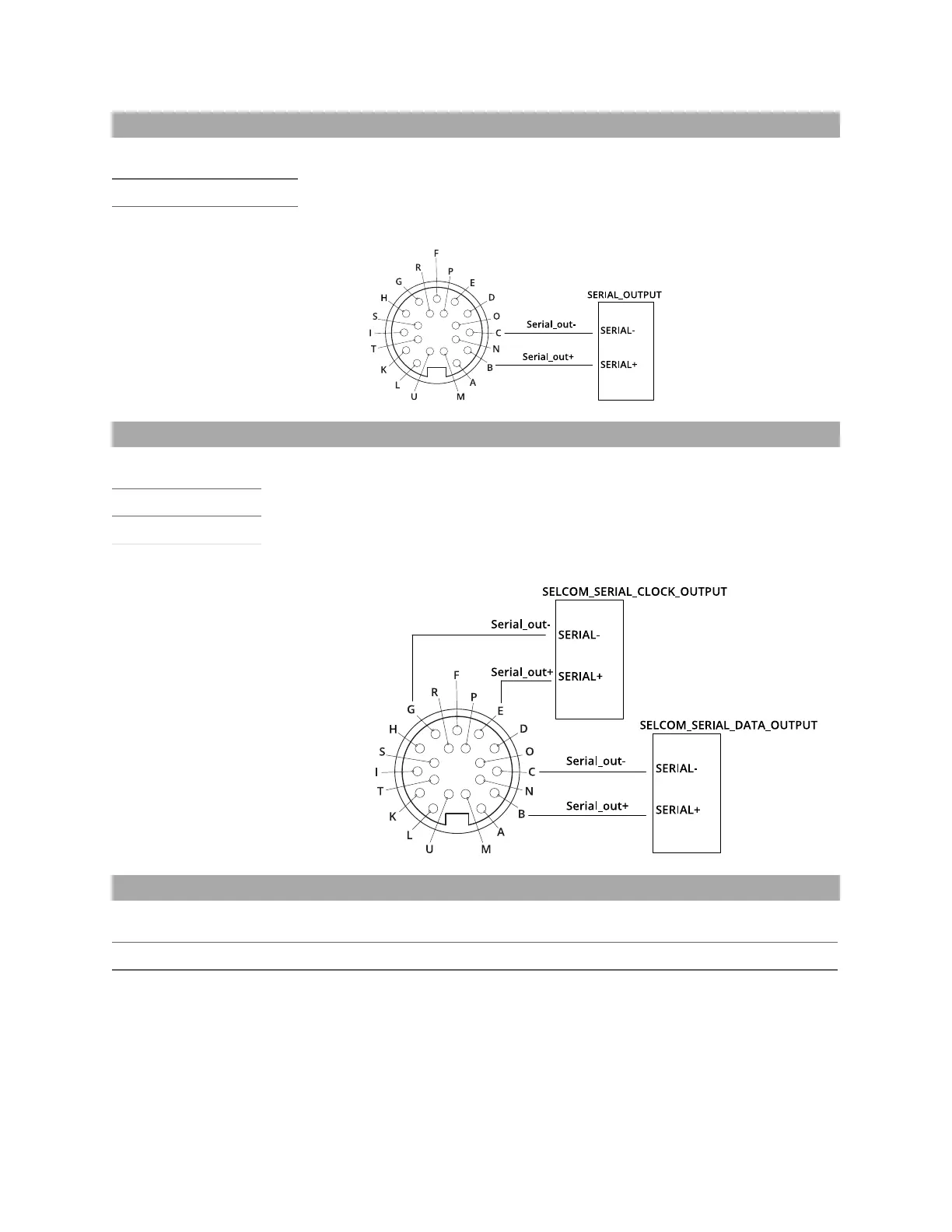

Serial RS-485 output is connected to Serial_out as shown below.
Function Pins
Serial_out B, C
Selcom Serial Output
Serial RS-485 output is connected to Serial_out and Serial_out2 as shown below.
Function Pins
Serial_out (data) B, C
Serial_out2 (clock) E, G
Analog Output
The Sensor I/O Connector defines one analog output interface: Analog_out.
Function Pins Current Range
Analog_out P, F 4 – 20 mA
