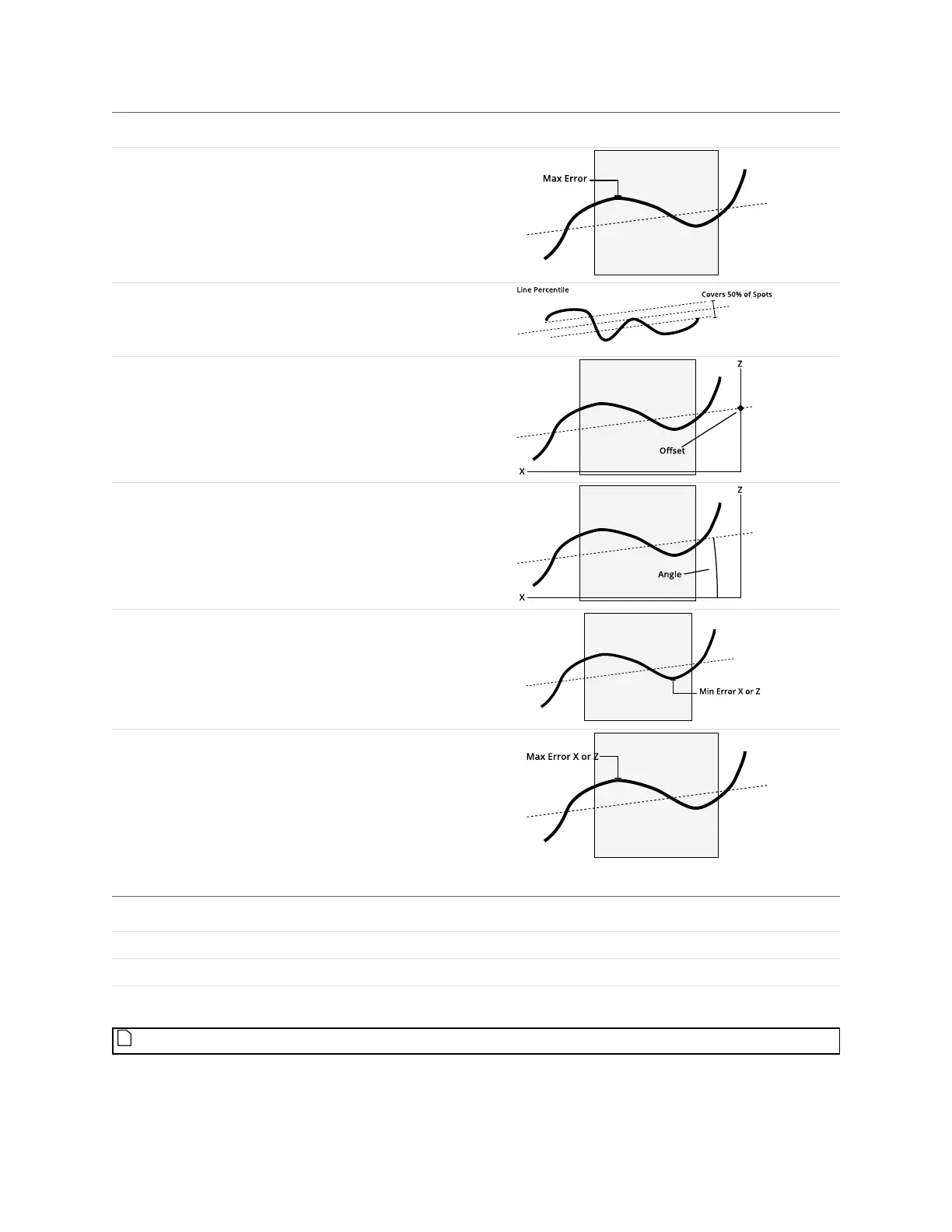

Measurement Illustration
Max Error
Finds the best-fitted line and measures the maximum error
from the line (the maximum distance above the line).
Percentile
Finds the best-fitted line and measures the range (in Z) that
covers a percentage of points around the line.
Offset
Finds the best-fitted line and returns the intersection point
between that line and the Z axis.
Angle
Finds the best-fitted line and returns the angle relative to
the X axis.
Min Error X
Min Error Z
Finds the best-fitted line and returns the X or Z position of
the minimum error from the line (the maximum distance
below the line).
Max Error X
Max Error Z
Finds the best-fitted line and returns the X or Z position of
the maximum error from the line (the maximum distance
above the line).
Type Description
Line
The fitted line.
Error Min Point
The point of minimum error.
Error Max Point
The point of maximum error.
Features
For more information on geometric features, see Geometric Features on page 190.
