Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 317
Output
The following sections describe the Output page.
Output Page Overview

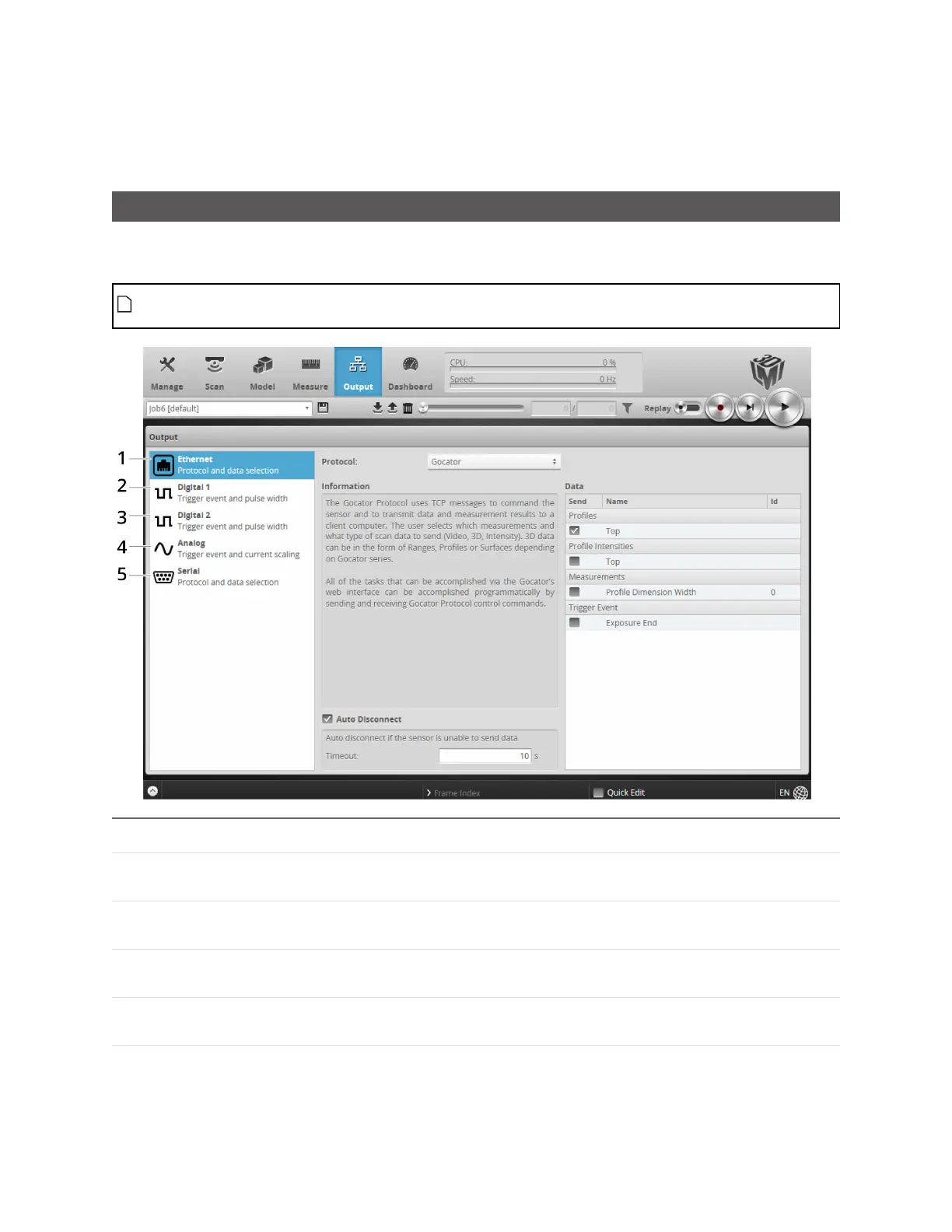

Output configuration tasks are performed using the Output page. Gocator sensors can transmit laser
profiles and measurement results to various external devices using several output interface options.
Up to two outputs can have scheduling enabled with ASCII as the Serial output protocol. When
Selcom is the current Serial output protocol, only one other output can have scheduling enabled.
Category Description
1 Ethernet Used to select the data sources that will transmit data via Ethernet. See Ethernet
Output on the next page.
2 Digital Output 1 Used to select the data sources that will be combined to produce a digital
output pulse on Output 1. See Digital Output on page 323.
3 Digital Output 2 Used to select the data sources that will be combined to produce a digital
output pulse on Output 2. See Digital Output on page 323.
4 Analog Panel Used to convert a measurement value or decision into an analog output signal.
See Analog Output on page 326.
5 Serial Panel Used to select the measurements that will be transmitted via RS-485 serial
output. See Serial Output on page 327.
