LMT FETTE T18F - Page 20

Operating Manual
Tangential Rolling System T18F - T27F
16
www.lmt-fette.com

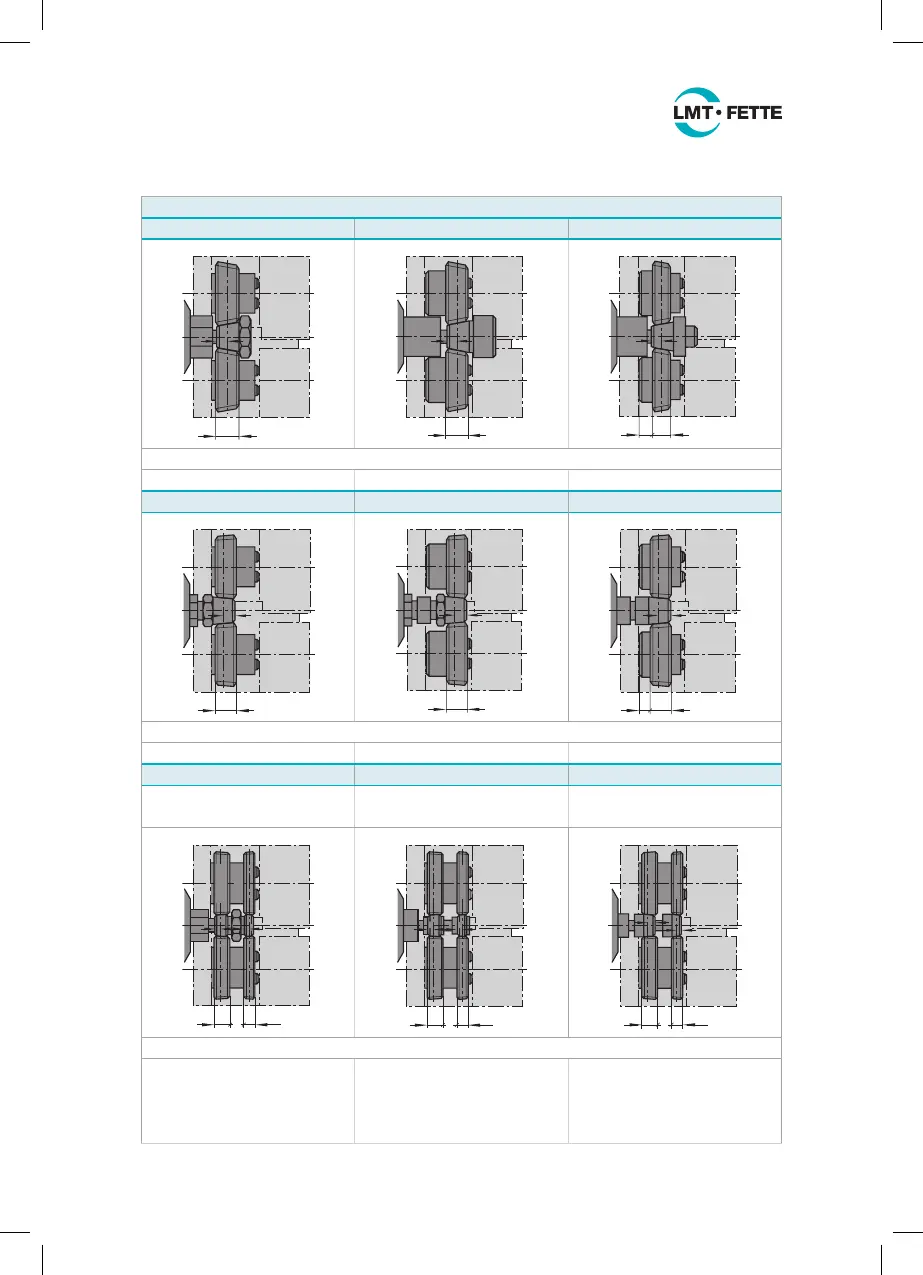

Table 6: Roll versions for tapered threads
Roll version
A B M
a
12
a
12
126
a
Code number (example)
T27-100-12A T27-100-12B T27-100-12M
AV BV MV
a
12
12
a
126
a
Code number (example)
T27-100-12AV T27-100-12BV T27-100-12MV
ABV AB AVBV
Only possible when the
thread size is identical
Only possible when the
thread size is identical
Only possible when the
thread size is identical
10
12
a
a
10
12
a
a
10
12
a
a
Code number (example)
T27-100-12A-10BV
If both thread lengths are
identical, then:
T27-100-12ABV
T27-100-12A-10B
If both thread lengths are
identical, then:
T27-100-12AB
T27-100-12AV-10BV
If both thread lengths are
identical, then:
T27-100-12AVBV
