4.3.2 Versions
Thread rolls are available in different versions depending on the respective application
(see table 5 and table 6). Version “A” is standard.

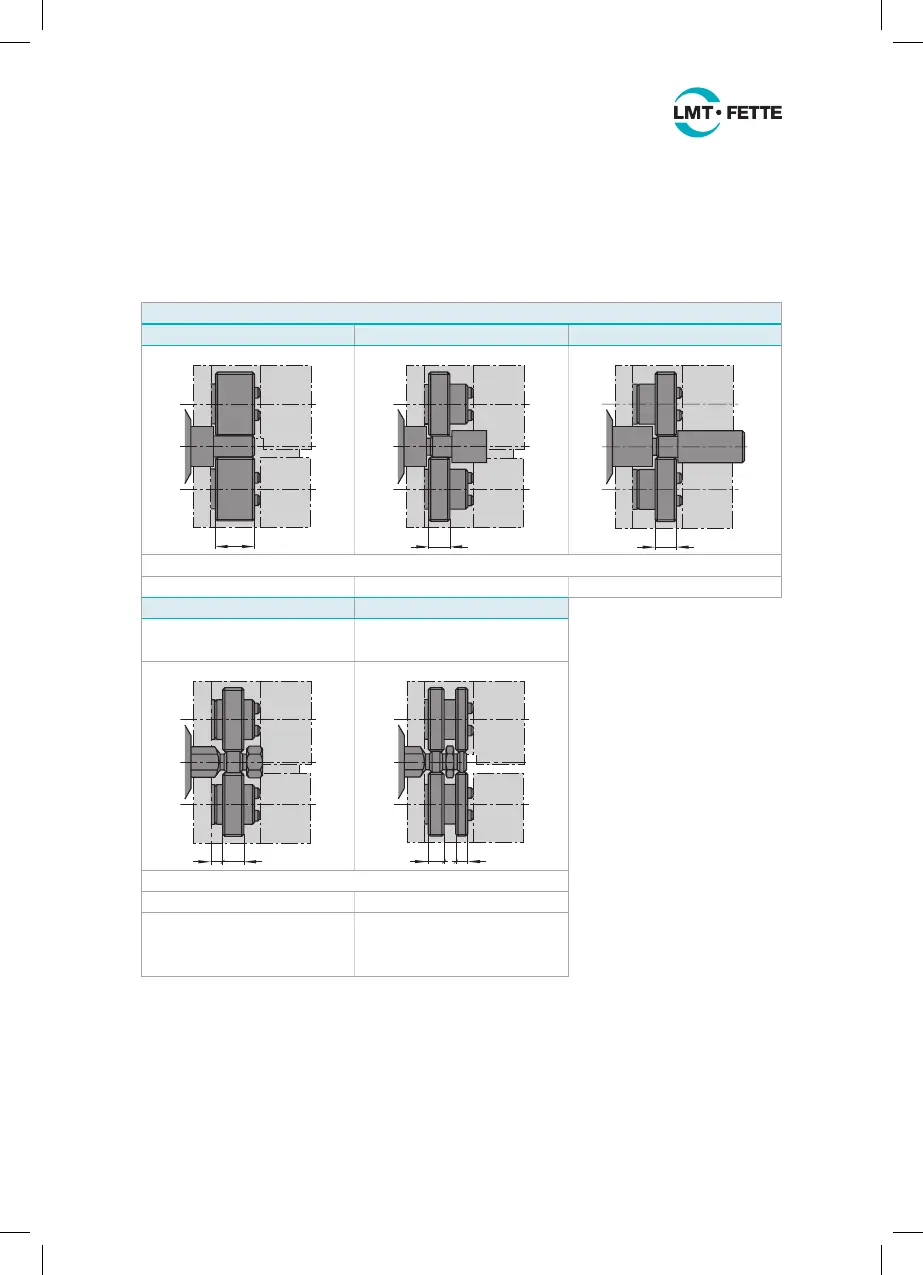

Table 5: Roll versions for parallel threads
Roll version
Full roll width A B
30
12
12
Code number (example)
T27-10-31 T27-10-12A T27-10-12B
M AB
Only possible when the
thread size is identical
126
12 6
Code number (example)
T27-10-12M6 T27-10-12A-6B
If both thread lengths are
identical, then:
T27-10-12AB
In the case of tapered threads please specify the standard and the version (“standard”
or “short”). If the threads differ from the standard, please inform us of the location of
the measuring plane (a). In this case the maximum roll run-out is 1 x pitch.
