LMT FETTE T18F - Page 30

Operating Manual
Tangential Rolling System T18F - T27F
26
www.lmt-fette.com
ET-31-11 ET-31-3ET-31-2
e
1
2
2
3

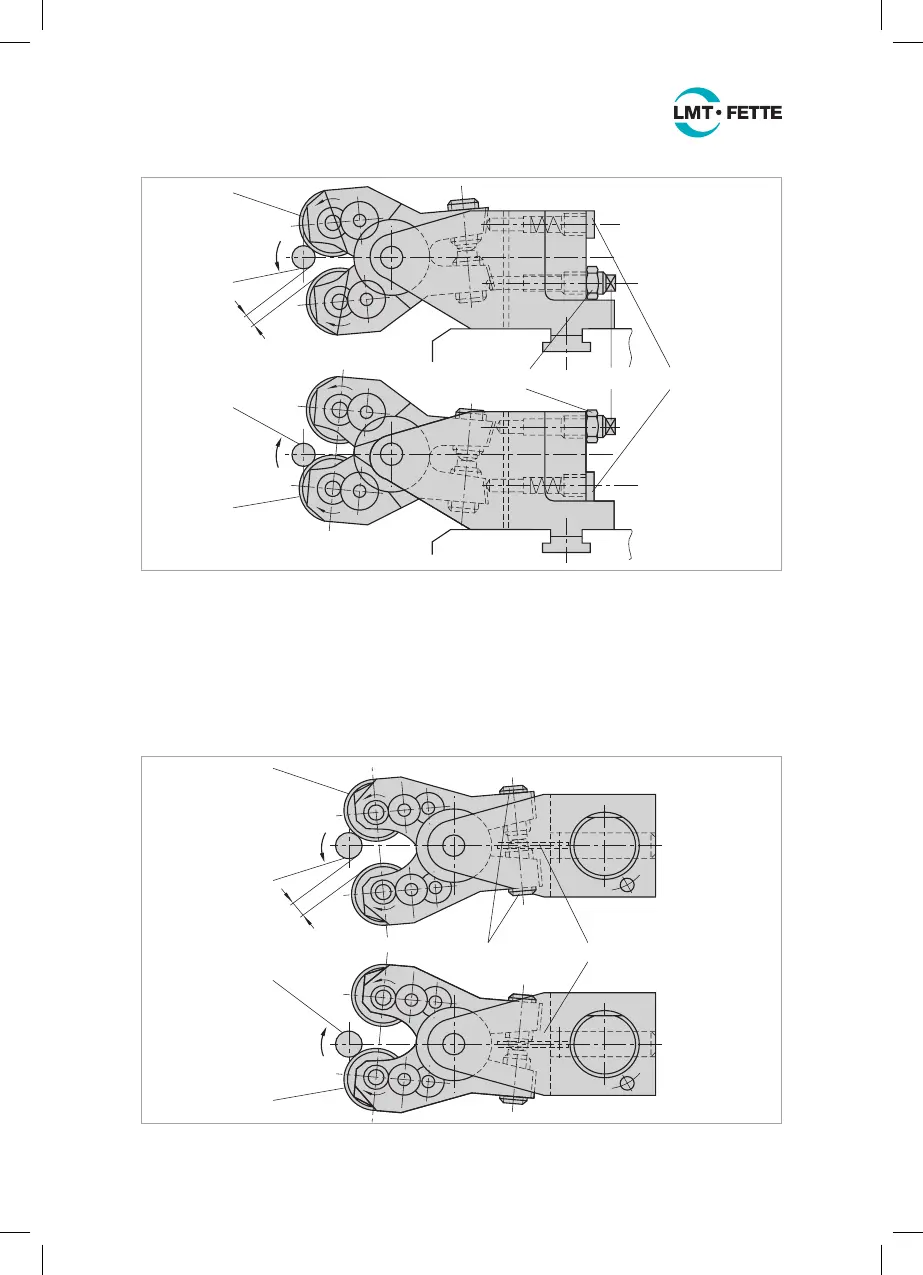

Figure 15: Adjusting the pendulum clearance with a spring-loaded bolt
b) Version with spring steel sheet:
In the case of a holder with a spring steel sheet design (see Figure 16), the spring
steel sheet (ET-31-7) engages between the set screws (ET-30) of the rolling head.
An angle of inclination is achieved by the set screws moving out of their symmetrical
position. The pendulum clearance also has to be adjusted to max. e ≈ 0.5 mm l 0.02
inch here.
ET-30 ET-31-7
2
3
e
1
2
Figure 16: Adjusting the pendulum clearance with a spring steel sheet
