Right
or
Left

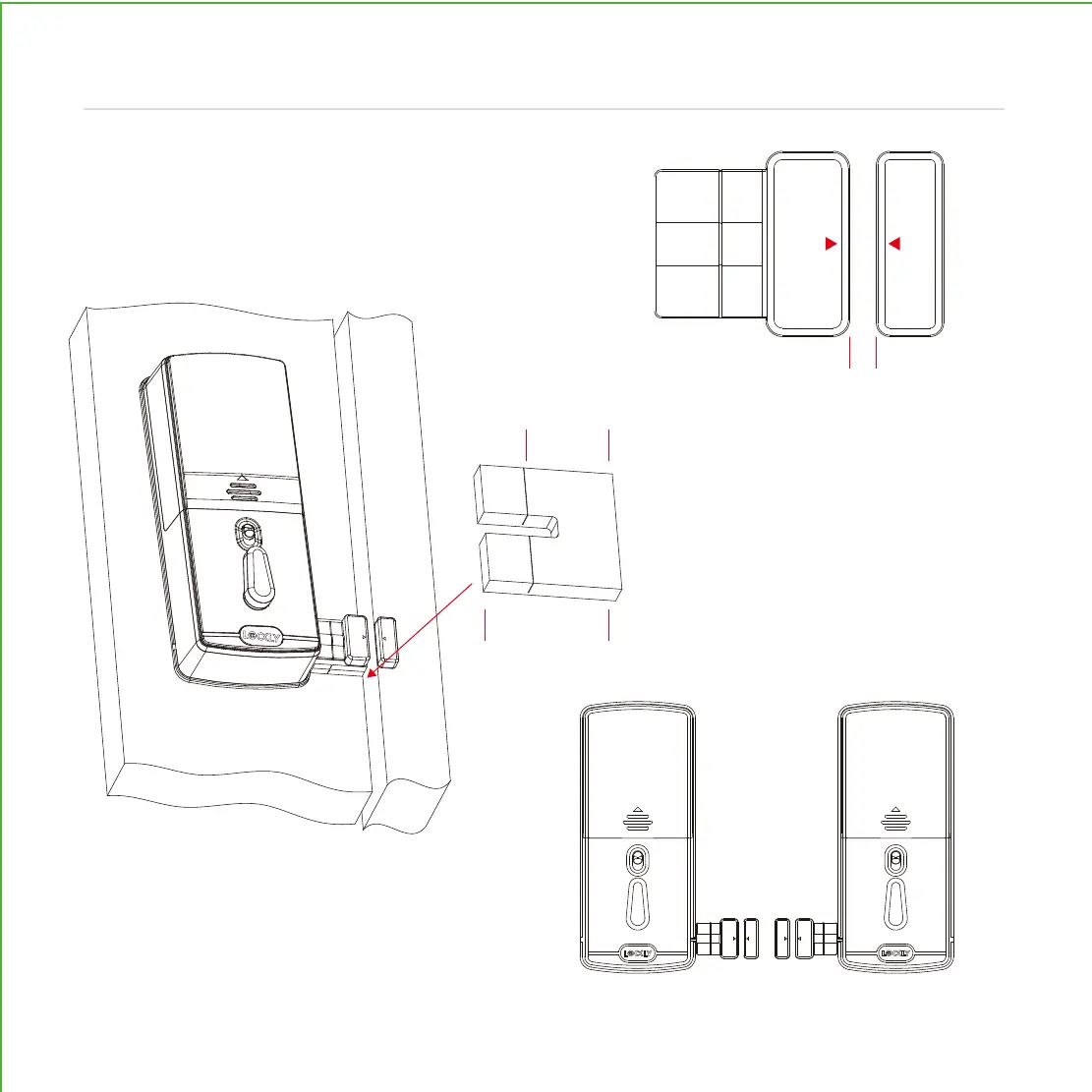

When installing the door sensors, make sure the
arrow on the wired sensor (P) aligns to the arrow of
the sensor magnet (Q) as close as possible.
The sensors need to be as close
to level as possible. If needed,
use the adhesive foam pad(s)
to adjust the height of the wired
sensor.
Sensors can be positioned on either left
or right side (see page 10).
2-3/4" (70mm)
2-3/8" (60mm)
3/4" (20mm)
Foam pad
(P) (Q)
9
PREPARING DOOR SENSORS FOR INSTALLATION
Step 4
continued
