RESET
PROGRAM

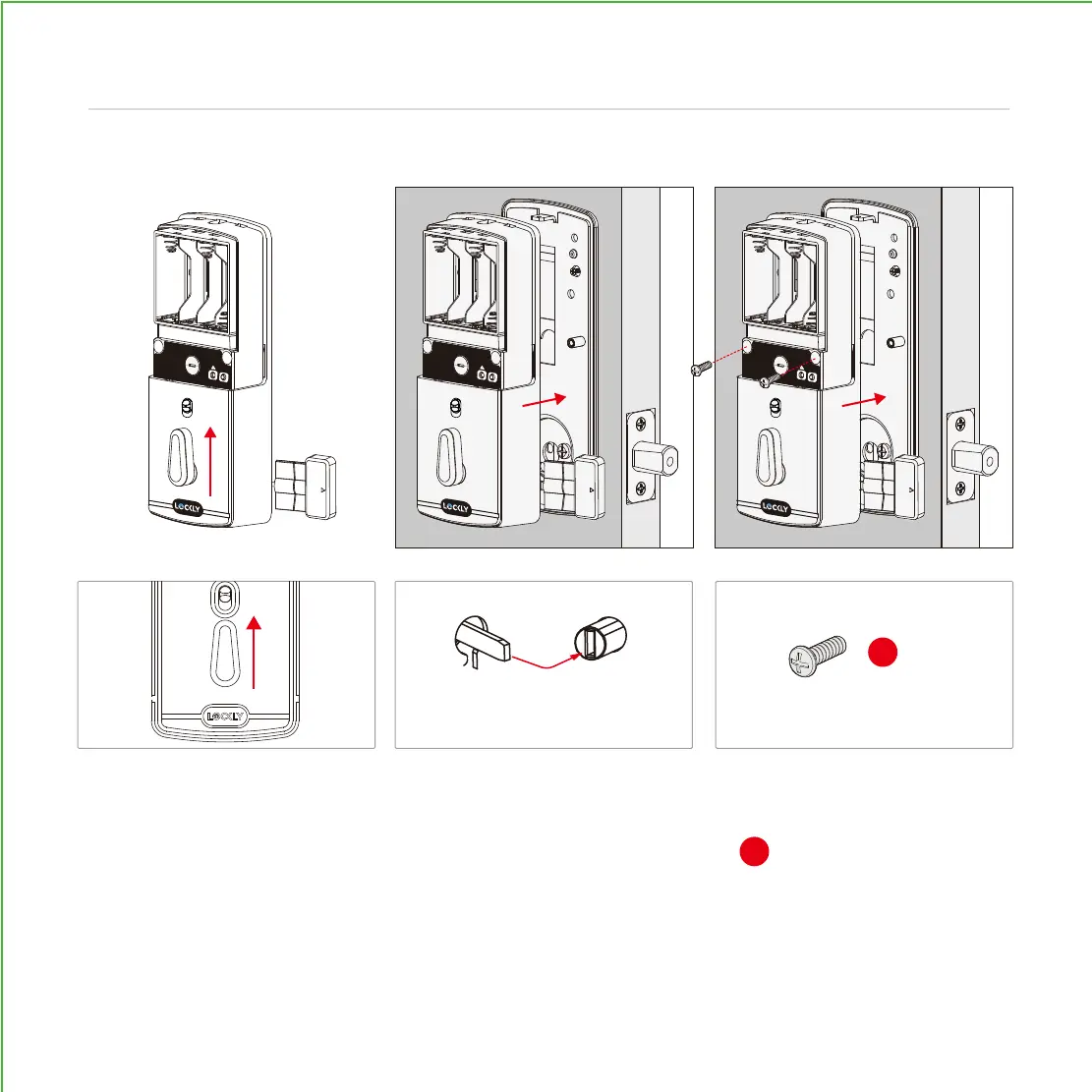

Before placing the interior
assembly onto the mount-
ing plate, ensure the
thumb turn is vertical.
Place the interior assembly
against the mounting plate
and make sure the torque
blade is inserted to the thumb
turn shaft.
Secure the interior assembly
to mount platedoor with
2 screws.
Torque Blade Thumb turn shaft
RESET
PROGRAM
H
2X
H
INSTALLING THE INTERIOR ASSEMBLY (G)
12
Step 5
continued
RESET
PROGRAM
Align torque blade with thumb
turn shaft, make sure both are in
the vertical position.
To Next Page
