Lockly Vision User Manual

NOTE: If you need to discon-
nect the cable, make sure
to press the snap tab to
release the plug before
carefully pulling it out. Do
not force, as this may result
in damaging the lock.

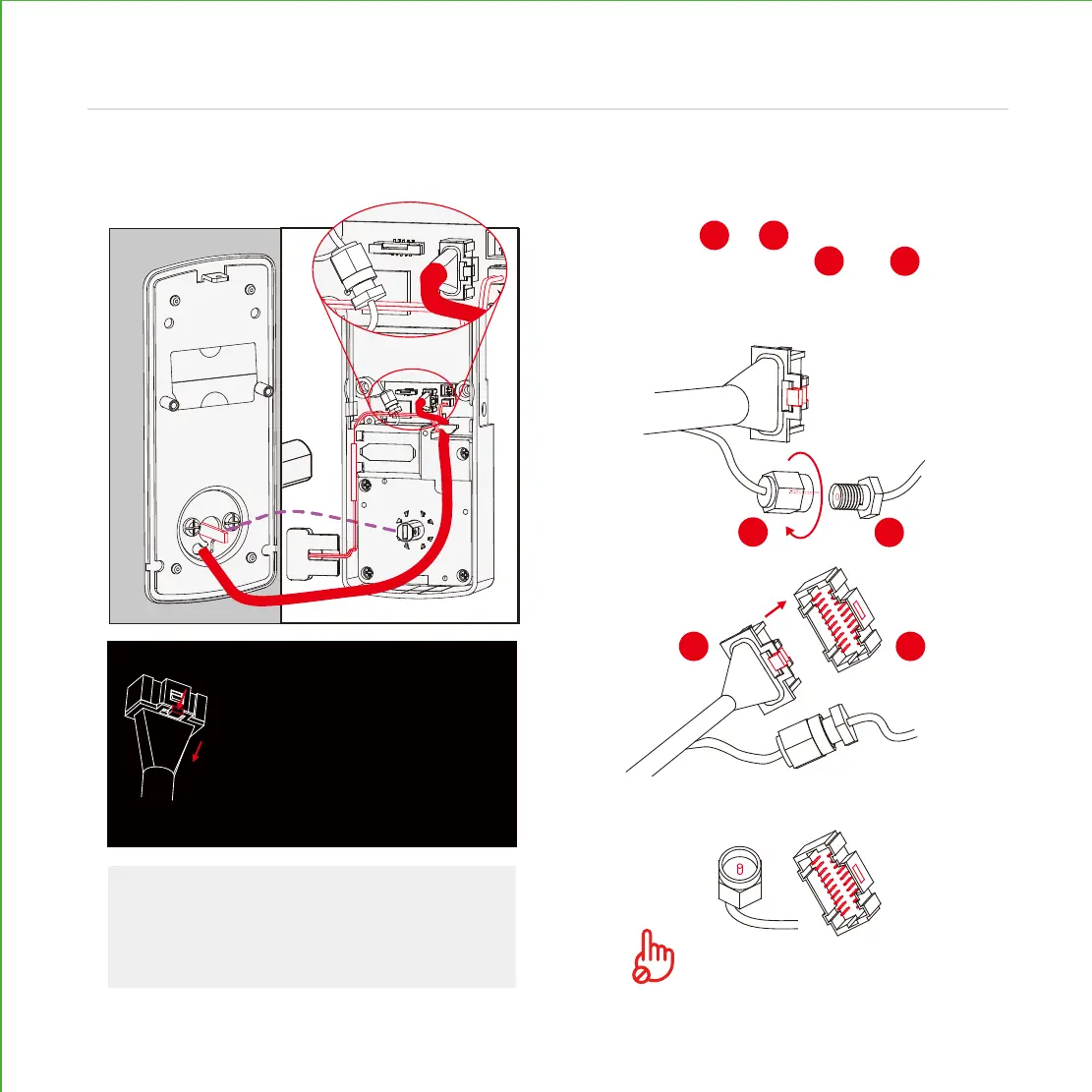

Plug the larger cable coming through mounting plate (D) into the interior assembly (G) as
shown. Tuck cable under eyelet hooks and route to the right on interior assembly (G).
INSTALLING THE INTERIOR ASSEMBLY (G)
11
Step 5
Connect to screw tightly by
hand as shown. Plug into ,
match red side of plug with red on
socket - insert tightly.
Do not touch pins inside*
Call our Customer Care Hotline
(669) 500-8835, for help if the
pins are not centered or bent.
A B
X
Y
YX
A
B

Lockly Vision Specifications

General

Type	Smart Lock
Connectivity	Wi-Fi, Bluetooth
Fingerprint Sensor	Yes
Voice Assistant Compatibility	Amazon Alexa, Google Assistant
Material	Zinc Alloy
User Codes	Up to 99
Keypad	Yes
Night Vision	Yes
Two-Way Audio	Yes
Lock Type	Deadbolt
Power Source	4 AA Batteries
Door Thickness	1 3/8" to 2"
Security Features	PIN Genie
Camera Resolution	1080p
