87 -
english
Connecting a DVD recorder to the TV set
Switch off all equipment before connecting.
Connect the Euro-AV output of the DVD recorder to the TV set’s mini
scart socket AV using the Euro-AV adapter
(1
.
Use a fully equipped Euro-AV cable (available from your dealer) for this.
If you want to receive and record analogue stations with the receiver
(tuner) built into the recorder, the recorder must be looped into the
aerial cable.
Connect the DVD recorder as shown in the connection example below.
Playback from AV device
Call AV selection.
Select AV,
OK switch over.
Start playback on the connected device.
Connecting camcorder/camera to the TV set
Switch off all equipment before connecting.
Connect the AV output of the camcorder to the sound input sockets
AUDIO - L (white) and R - AUDIO (red) and the VIDEO connection of the
side AV sockets of the TV set.
Use the AV cable enclosed with the camcorder for this.
Playback from AV device
Call AV selection.
Select AV-VIDEO,
OK switch over.
Start playback on the connected device.
ANT IN
ANT OUT
AV
R
TV

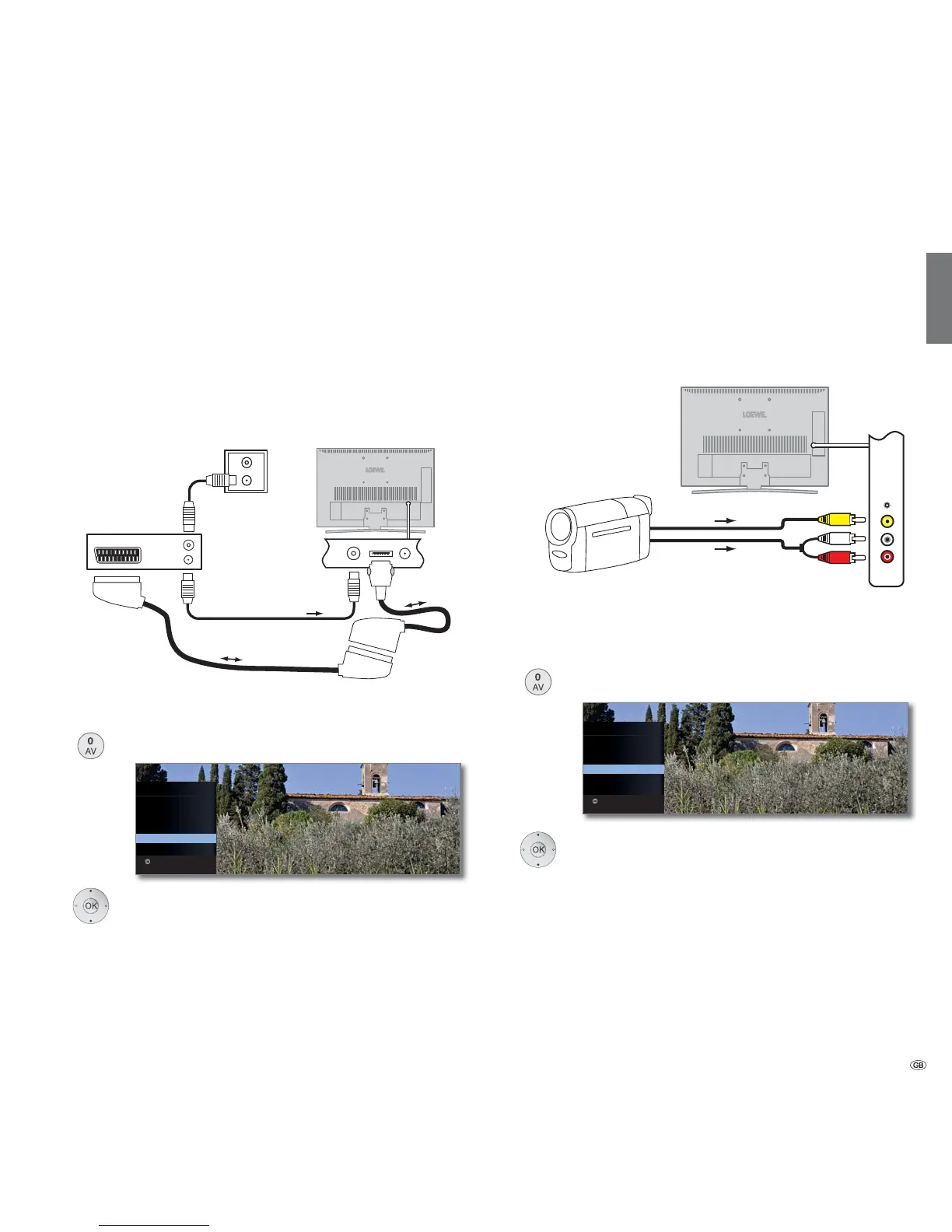

Connection example of a DVD recorder
TV set
DVD recorder
AV
ANT TV
TV set
Camcorder
R - AUDIO - L
VIDEO
Connection example of a camcorder
OK
HDMI2
HDMI1
PC IN
AV-VIDEO
AV
VIDEO
AV SELECTION
Switch to ...
OK
HDMI2
HDMI1
PC IN
AV-VIDEO
AV
VIDEO
AV SELECTION
Switch to ...
External devices
(1
Scart adapter is available as an accessory (see page 104).
