DISPLAY CONSOLE OVERVIEW

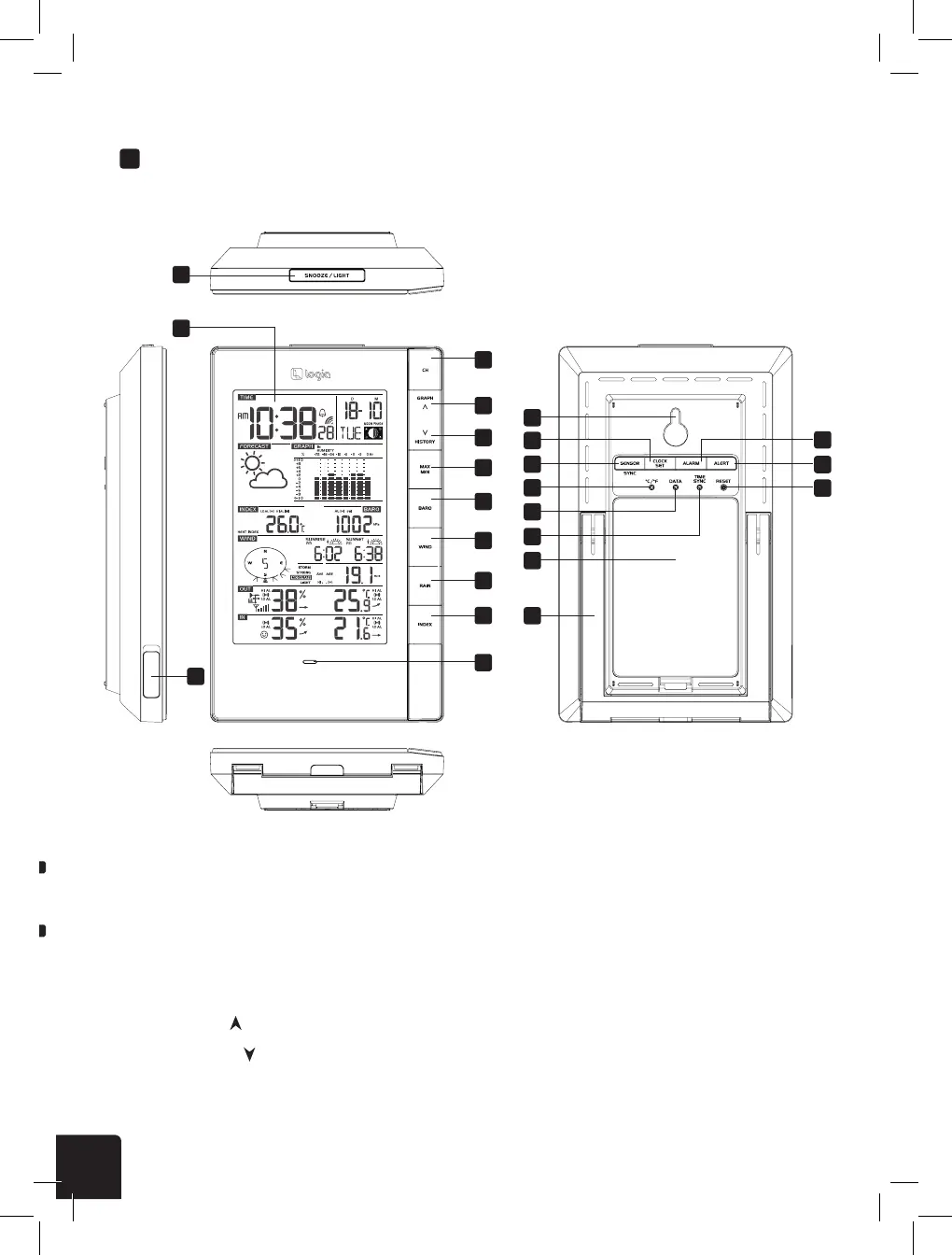

MAIN CONSOLE OVERVIEW
1. Snooze/Backlight button
2. LCD Display (see overview
on page 7)
3. Micro USB port
4. CH button
5. GRAPH/ button
6. HISTORY/ button
7. MAX/MIN button
8. BARO button
9. WIND button
10. RAIN button
11. INDEX button
12. Alert indicator
13. Wall mount notch
14. CLOCK SET button
15. SENSOR/SYNC button
16. °C/°F button
17. DATA button
18. TIME SYNC button
19. Battery compartment
20. Kickstand
21. ALARM button
22. ALERT button
23. RESET button
7
1
2
3
4
5
13
14
15
16
17
18
19
20
21
22
23
6
7
8
9
10
11
12
