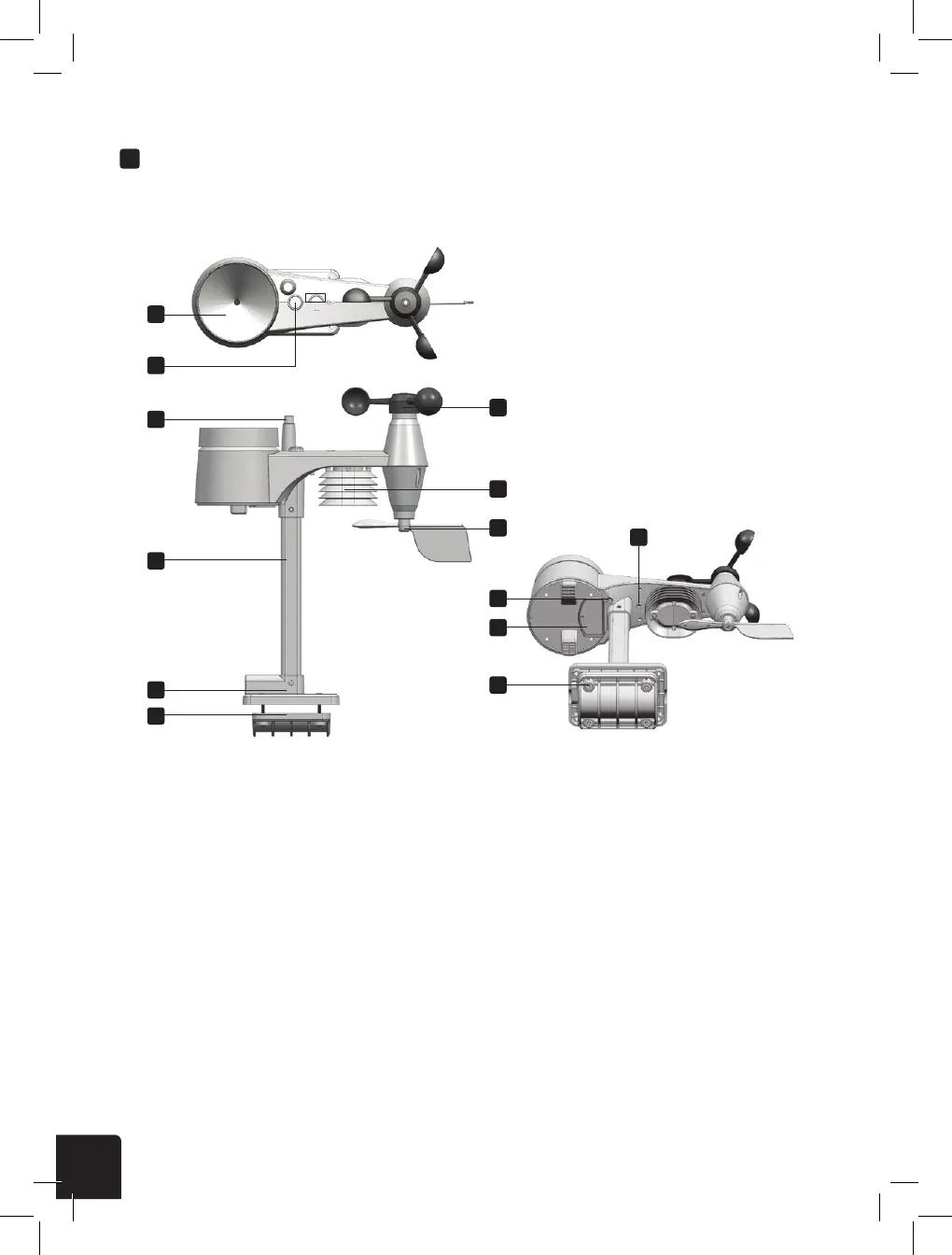

WIRELESS WEATHER SENSOR OVERVIEW
MAIN DEVICE
1. Rain collector
2. Level
3. Antenna
4. Wind cups (anemometer)
5. Mounting pole
6. Sensor casing
7. Wind vane
8. Mounting base
9. Mounting clamp
10. Red LED indicator
11. RESET button
12. Battery compartment
13. Mounting clamp
screws
