User Manual
CBX-1 / CBX-2
3.2.2.

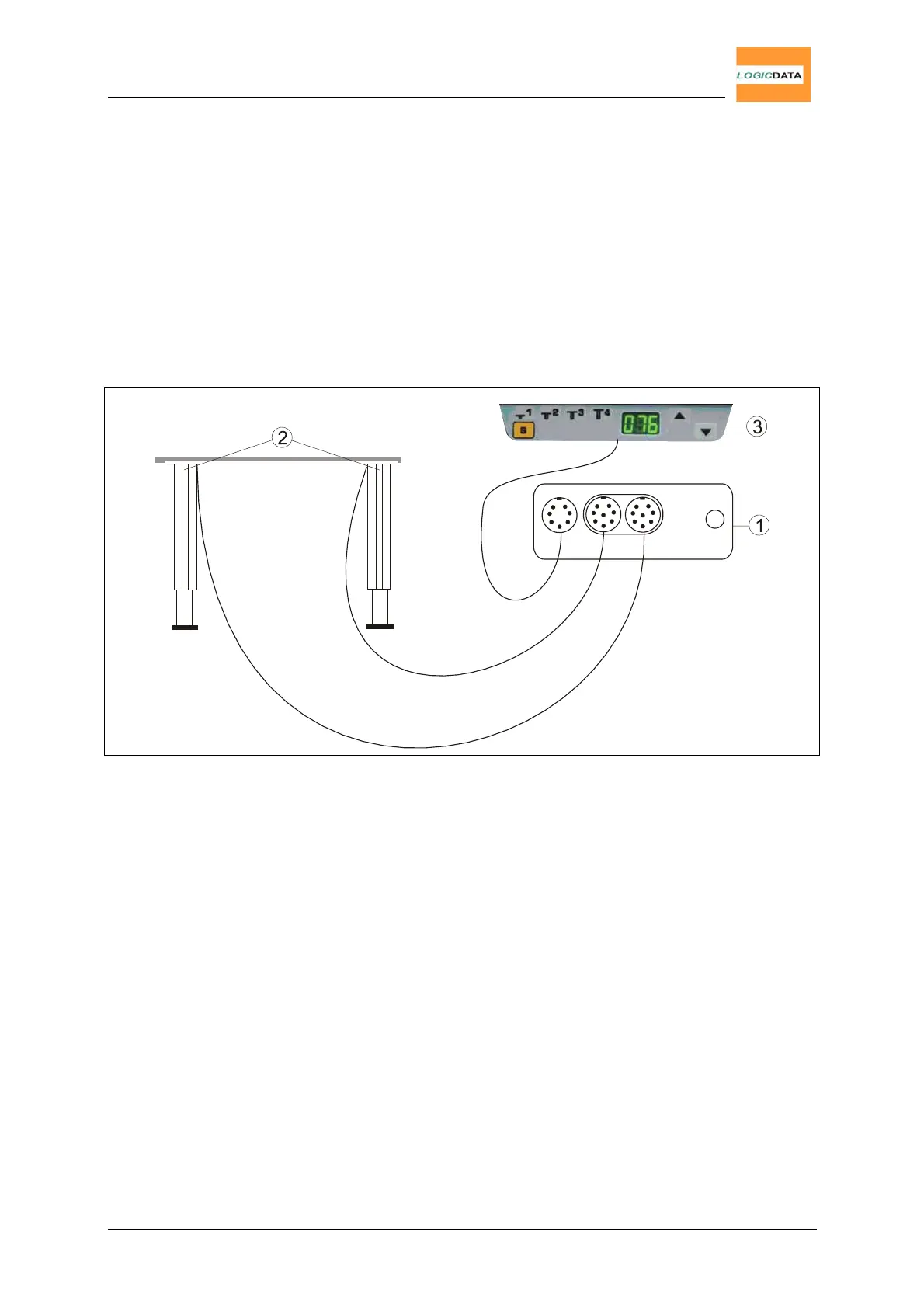

System Configuration (Example)
The following figure illustrates the interface
connections of an example configuration.
This example configuration consists of:
c
1 CBX control box
d
2 Motor drives (hidden in the table-legs)
e
Handset HSU-MDF-4M2-LD
Fig
.4 – Example Configuration
Page 12/29
11
13
Table of Contents
Default Chapter
2
Table of Contents
2
1 Preface
3
Appropriate Operation
3
Functionality CBX-1 / CBX-2
3
Performance Differences CBX-1 / CBX-2
4
Audience and Previous Knowledge
4
Safety Instruction Symbols
5
Package Contents
6
Unpacking
6
Safety Instructions
7
General Safety Instructions
7
Important Service Note
8
2 Mounting Instructions CBX
9
3 Initial Operation
10
CBX Interfaces
10
Initial Operation Procedure
11
Connect Drives
11
Connect Handset
11
Connect Optional Components
11
Connect Mains Supply
11
System Configuration (Example)
12
4 Operation of the CBX Control Box
13
Basic Functionality
13
Desk Upwards
13
Desk Downwards
13
Advanced Functionality
14
Saving a Position
14
Moving to a Saved Position
15
Change Displayed Height
16
Manual Reset
16
Activation of the End Position Alignment Procedure
17
End Position Alignment
17
Software-Dependent Functions
18
Reset after Power on
18
Safety Area
18
Plug Detection
18
Drive Back
19
Duty Cycle Monitoring
19
Pinch Protection Module ACS-CB-PINCH
20
ACS-CB-PINCH Interfaces
20
ACS-CB-PINCH Mounting and Connection
21
5 Technical Data
22
6 Appendix
24
Possible Troubles and Solutions
24
Displayed Error Messages
25
Optional Accessories
26
7 Continuative Information
29
Final Disposal
29
Manufacturer's Data
